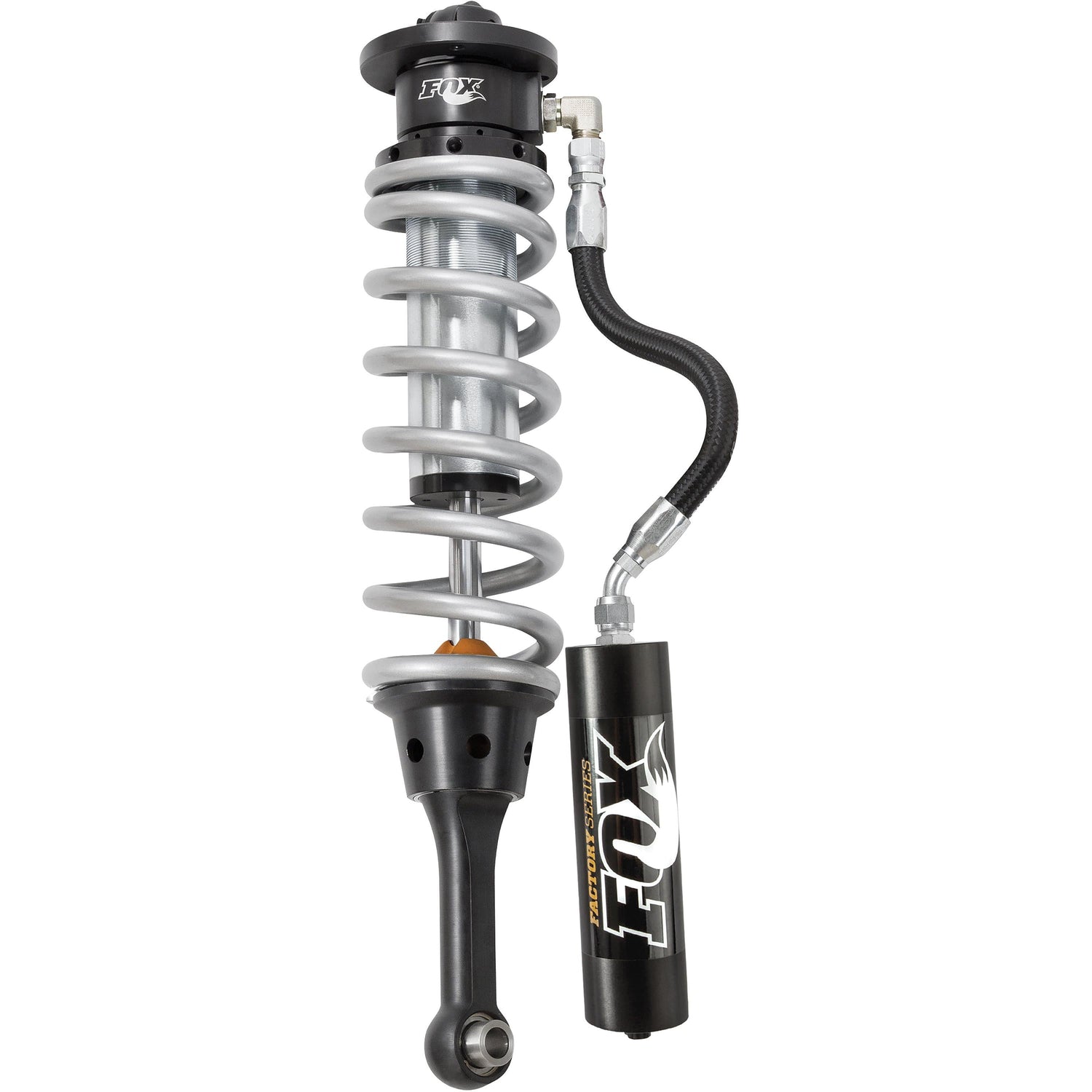

2010-2014 Raptor 3.0 Factory Race 0-2" Lift Internal Bypass Front RR Coilover (883-02-046)

Description

The 3.0 Factory Race Series Coil-over Internal Bypass position-sensitive shocks maximize the entire wheel Travel, increase oil capacity, and add 60% more damping area over the stock FOX SVT shocks. They allow for a plush predictable ride over normal off-road driving conditions and the ability to ramp up damping force for extreme use.

Designed to bolt right onto your factory mounts, the integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box.

Part Number: 883-02-046

Features

• Performance Tuned For Vehicle Specific Application
• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" 17-4 H900 stainless steel hard-chrome plated
• 6061-T6 hard-anodized, high-flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal Optional high-temperature Viton Seals
• PTFE-lined, heat-treated, alloy steel spherical

Specs:

• Extended Length: 27.97"
• Compressed Length: 20.44"
• Top Mount: TM
• Bottom Mount: Eyelet
• Travel: 7.53"
• Front Lift Height: 0-2"
