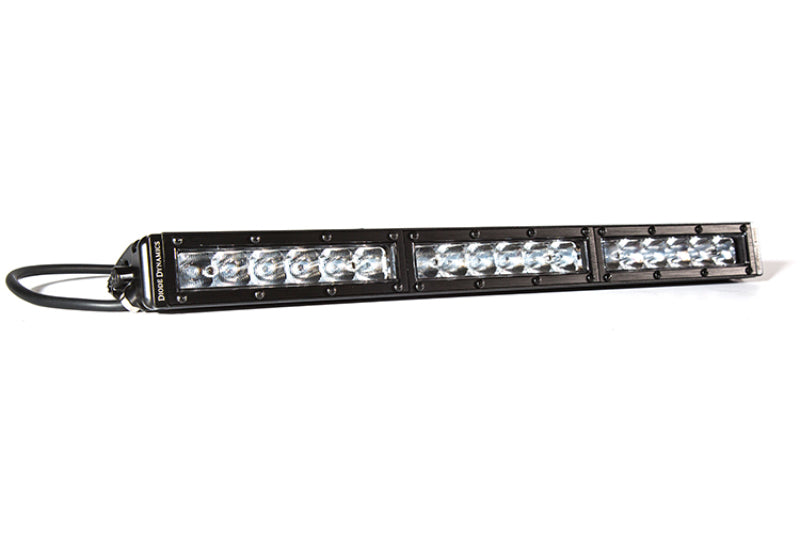

Universal Stage Series Driving White Classic 18" Light Bar (DIODD5016)

Standard light bars often rely on inefficient reflectors that scatter light in every direction, causing distracting glare on the hood and wasting output. The Stage Series 18 inch White Driving Light Bar solves this with patented Total Internal Reflection optics, which capture and focus every lumen into a functional, highly concentrated beam. This driving pattern is specifically engineered to supplement your high beams, providing much-needed long-range illumination for high-speed travel while maintaining a slim, single-row profile that eliminates wind whistle.

Features

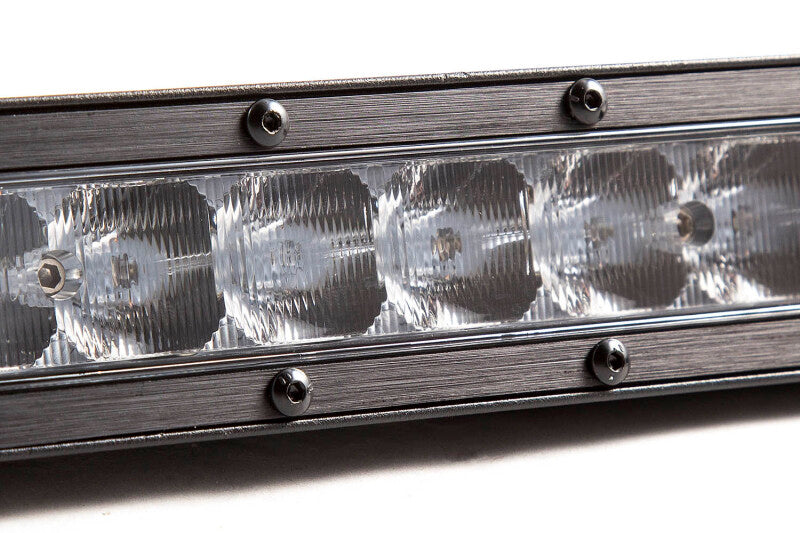

• TIR Optical Efficiency: Unlike traditional reflectors that lose light internally, these patented optics capture 100 percent of the LED output and direct it forward for maximum intensity.
• Focused Driving Pattern: Engineered with a 20 by 8 degree spread, this optic provides a narrow, long-range beam that reaches much further than standard off-road bars.

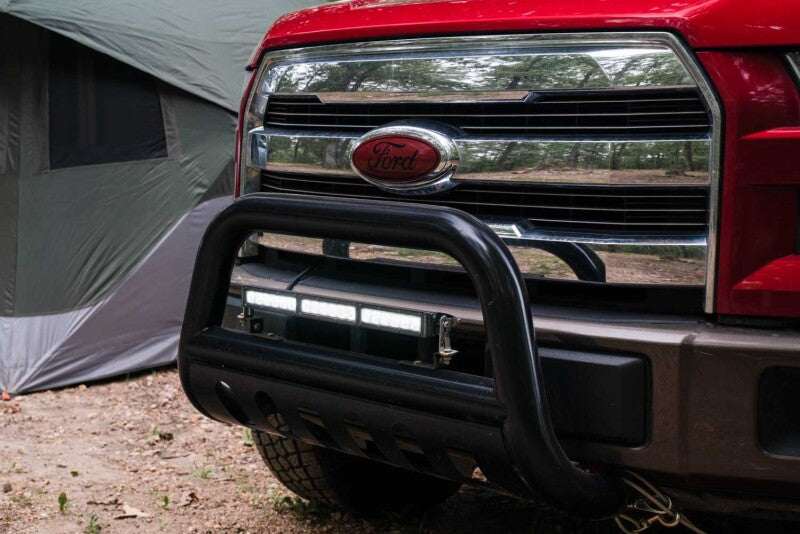

• Slim Profile Design: At less than 42mm tall, this light bar fits into narrow grille openings and bumper gaps where bulky dual-row bars cannot, keeping your vehicle looking clean.
• High Intensity White Output: The 6000K cool white color temperature provides a modern aesthetic and high-contrast visibility, making it easier to spot obstacles on the road or trail.
• Durable Construction: Featuring a powder-coated aluminum extrusion and a shatterproof polycarbonate lens, this unit is built to withstand heavy vibration and extreme weather conditions.

Specs

• Traffic Pattern: SAE J581 Driving
• Color Temp: 6000K (Cool White)
• Measured Output: 4,200 Lumens
• Peak Intensity: 115,000 Candela
• Wattage: 79.8 Watts
• Operating Voltage: 9-24V
• Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
• Weather Rating: IP68 Waterproof

Includes

• One (1) Stage Series 18 inch LED Light Bar
• One (1) Wire Pigtail with Deutsch DT Connector
• Universal Bracket Set and Mounting Hardware

Notes

• Compliance: SAE J581 compliant when aimed correctly for street legal auxiliary high beam use.
• Warranty: Includes the Diode Dynamics industry leading 8 year limited warranty.
• Fitment: Does not fit most factory fog light locations without vehicle-specific mounting brackets.
