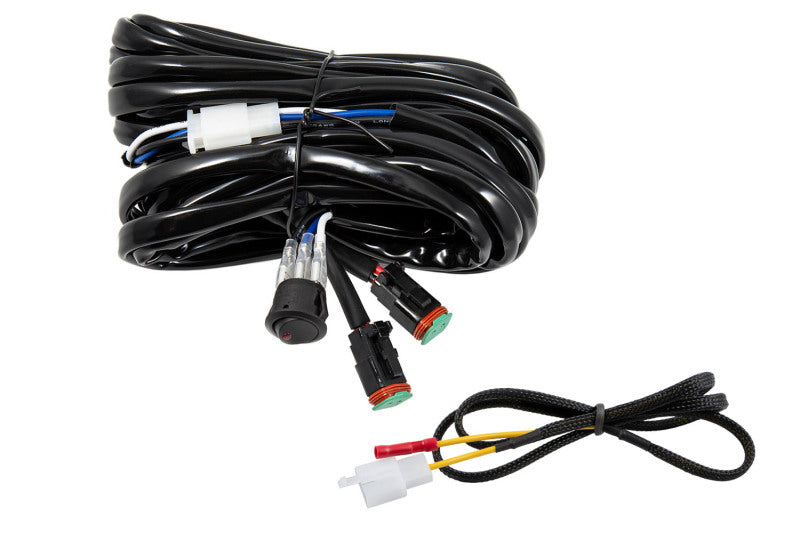

Universal Heavy Duty Dual Output Light Bar Wiring Harness (DIODD4045)

Running a pair of high-power LED light bars or large pods requires a wiring solution that can handle massive current without voltage drop or overheating. This Heavy Duty Dual Output Offroad Wiring Harness solves the problem of underpowered circuits by utilizing a robust 40A relay and heavy-gauge wiring to deliver maximum power from the battery to your lights. This ensure your Stage Series or Elite Series optics reach their full rated output, providing a reliable and safe connection that protects your vehicle factory electrical system from high-wattage accessories.

Features

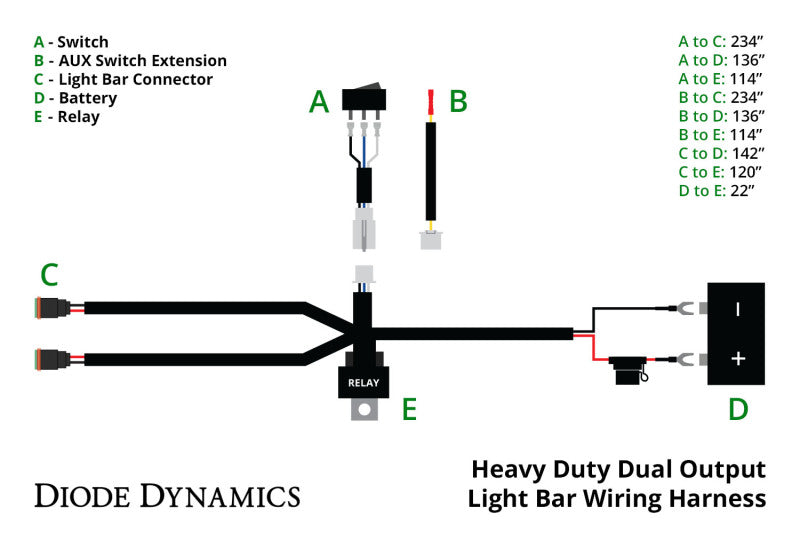

• Dual Output Connectivity: Featuring two 2-pin Deutsch DT-style connectors, this harness allows you to power a pair of high-intensity lights simultaneously through a single organized circuit.
• High Current Capacity: Built with 12AWG primary wiring and a 40A automotive grade relay, this kit is specifically designed to handle the thermal demands of large light bars.
• Protective Shielding: The entire length of the harness is wrapped in heavy-duty nylon braided sleeving to resist abrasion, heat, and chemical exposure in the engine bay.
• Integrated Safety Fuse: Includes a pre-installed 30A ATM-style inline fuse to protect your lighting investment and vehicle electronics from potential short circuits or overcurrent.
• Toggle Switch Control: Comes with a pre-wired 3-pin rocker switch featuring an LED indicator, providing an intuitive interface to manage your off-road lighting from the cabin.

Specs

• Traffic Pattern: N/A (Wiring Harness)
• Color Temp: N/A
• Measured Output: N/A
• Peak Intensity: N/A
• Wattage: Rated for up to 300 Watts total
• Operating Voltage: 12V DC
• Materials: 12AWG Tinned Copper, Nylon Sleeving, 40A Relay
• Weather Rating: IP65 Rated Relay and Fuse Holder

Includes

• One (1) Heavy Duty Dual Output 2-Pin Wiring Harness
• One (1) 3-Pin LED Rocker Switch
• One (1) 30A ATM-Style Fuse

Notes

• Compliance: Designed for 12V DC automotive use only; ensure all wiring is secured away from moving parts or high-heat sources.
• Warranty: Includes the Diode Dynamics industry leading 8 year limited warranty.
• Fitment: Does not fit 3-pin or 4-pin backlight-equipped pods without the use of an adapter or custom repinning.
