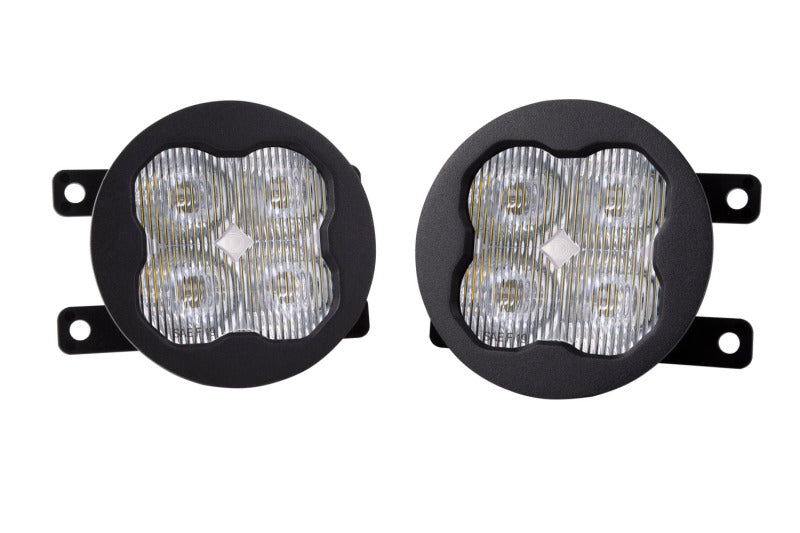

2004-2020 / Ford SS3 Pro Type A White SAE Fog Light Kit (DIODD6983)

If you are tired of factory fog lights that barely reach the edge of your bumper, the Stage Series SS3 Pro Fog Light Kit is your path to total clarity. Engineered for those who demand more than just a standard upgrade, these lights transform your front-end visibility into a wide-reaching wall of high-intensity white light. At the heart of this system is the custom-engineered Total Internal Reflection optic, which captures every bit of light from the high-power LEDs and focuses it exactly where you need it on the road. Unlike traditional reflector housings that scatter light and create blinding glare, the SS3 Pro maintains a sharp, legal cutoff while saturating the ground with a massive 80-degree spread.

Features

• Advanced TIR Optics: Custom-molded Total Internal Reflection technology serves as both the optic and the main lens, providing significantly higher efficiency and focus than standard reflectors.
• Street Legal Performance: Designed with precision optical simulation to meet SAE J583 standards, ensuring a highly functional beam pattern that is fully compliant for on-road use.
• Pro Level Power: The Pro variant delivers double the output of the Sport model, utilizing high-intensity automotive emitters for maximum long-range visibility and punch.
• Built to Last: Constructed with a durable powdercoated aluminum housing and a thick polycarbonate lens, these units are torture-tested to operate in temperatures ranging from -40 to 185 degrees F.
• Plug and Play Integration: Includes custom-molded brackets and vehicle-specific wire adapters for a direct-bolt installation that requires no cutting or splicing.

Specs

• Traffic Pattern : SAE Fog (80 Degree Spread)
• Color Temperature : 6000K (Cool White)
• Measured Output : 3,000 Lumens
• Peak Beam Intensity : 11,900 Candela
• Wattage : 36W
• Current Draw : 2.7A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

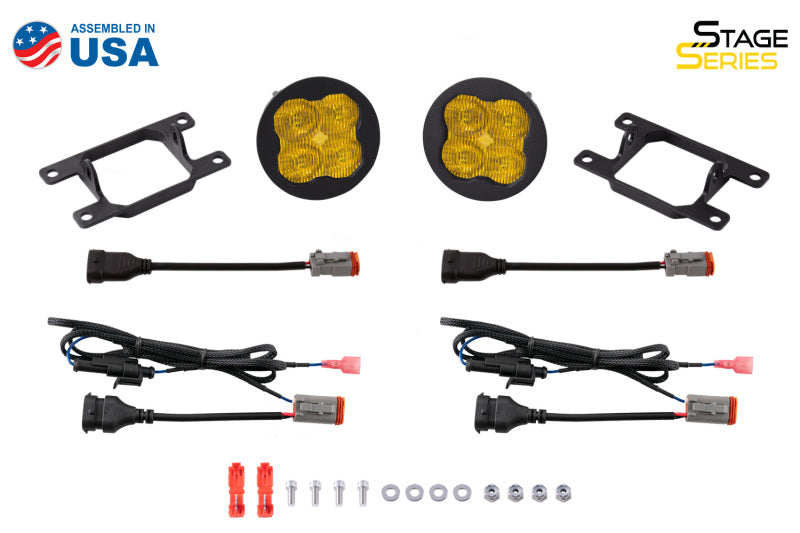

Includes

• LED Pods : One Pair of SS3 3 inch Pro LED Pods
• Brackets : Two Type A specific mounting brackets and round bezels
• Hardware : Stainless steel mounting screws and nylon-insert nuts
• Adapters : Two H11-style DT wire adapters for factory plug compatibility

Notes

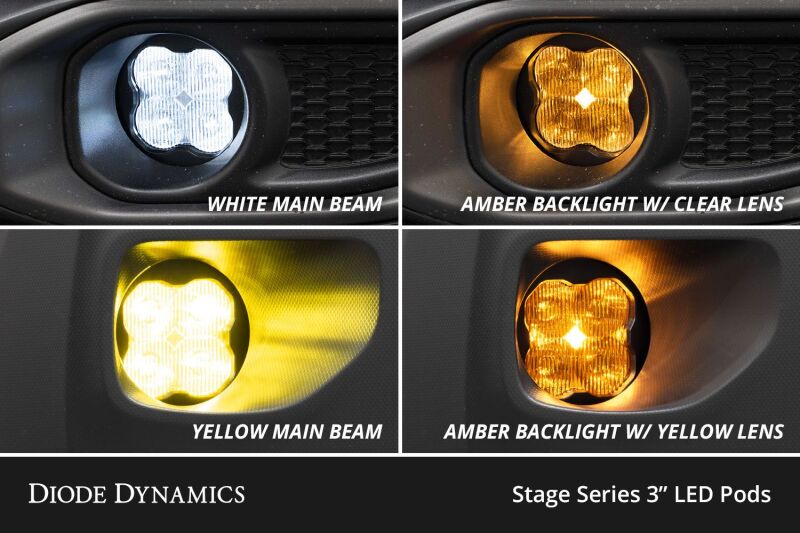

• Backlight functionality requires a separate 12V power source tap if applicable
