Universal Stage Series 2" Sport White Combo Standard ABL LED Pods (DIODD6388P)

When you need a lighting setup that bridges the gap between distance and area coverage, the Stage Series C2 1.0 White Sport Combo Pods deliver high-performance illumination in a compact 2 inch package. These pods are engineered for maximum functionality, utilizing a hybrid optic design that merges a driving beam for long-range distance with a flood beam for wide peripheral spread. The result is a highly effective 40x20 degree rectangular pattern that keeps you aware of what is far down the road while simultaneously lighting up the shoulders. Driven by custom-molded Total Internal Reflection technology, these pods capture every bit of light from the high-power LEDs and direct it forward with industry-leading efficiency.

Features

• Versatile Combo Beam: Combines driving and flood optics into a single unit, providing a balanced pattern of distance and width for all-around visibility.
• Advanced TIR Optics: Custom-engineered Total Internal Reflection technology serves as both the optic and the main lens, providing significantly higher intensity than traditional reflector designs.
• Sport Series Efficiency: Optimized for high performance with a 12.8 watt draw, providing a significant boost over factory lighting while remaining easy on your electrical system.

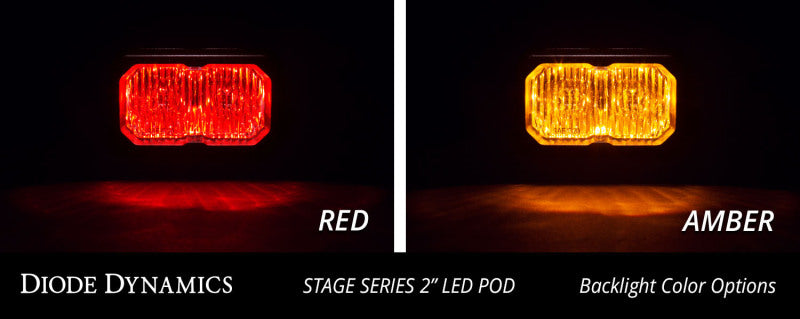

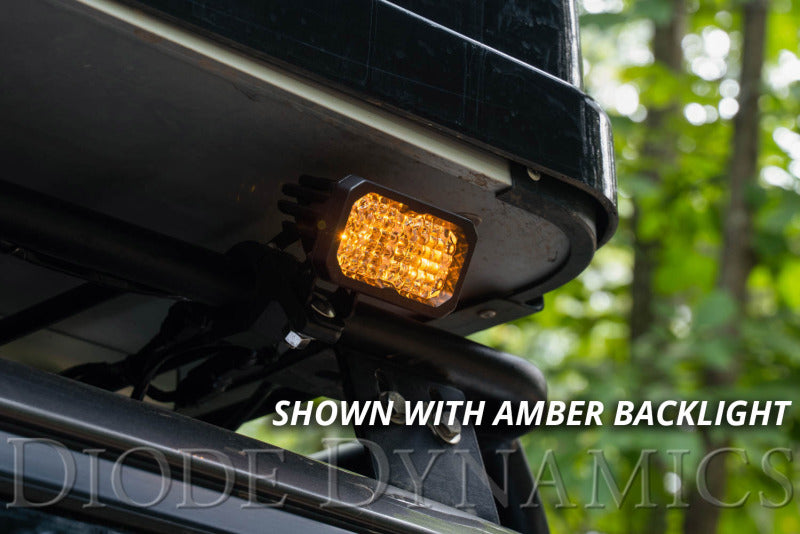

• Amber Backlight Accent: Includes an integrated secondary amber glow that fully illuminates the internal TIR optic for a high-end and modern aesthetic.
• Rugged American Quality: Designed, torture-tested, and assembled in the USA with a powdercoated aluminum housing and thick polycarbonate lens to survive extreme environments.

Specs

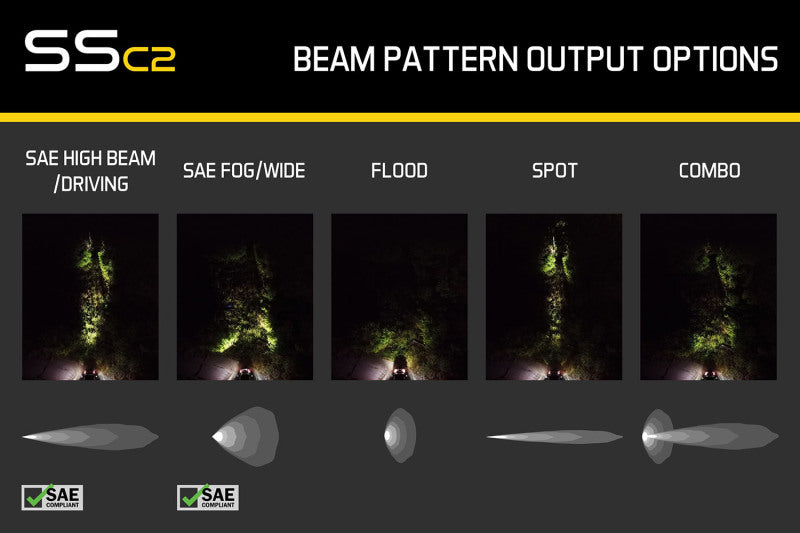

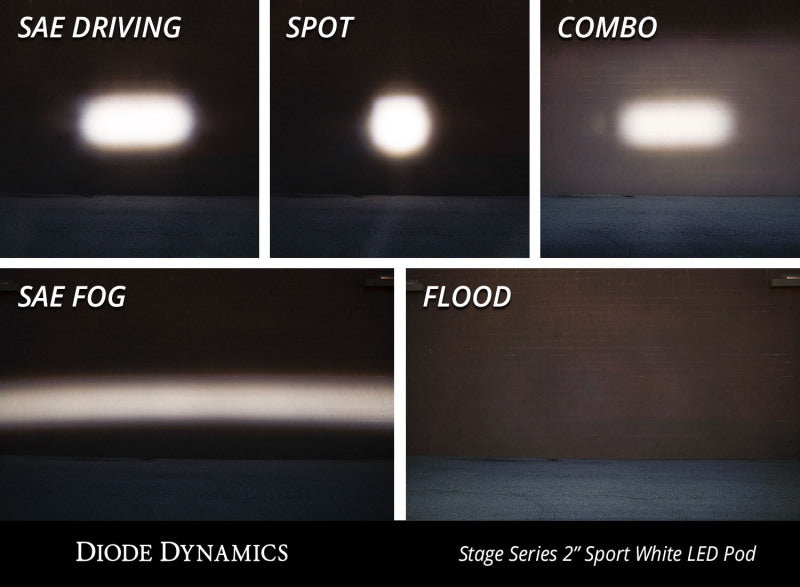

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 40 x 20 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 871 Lumens

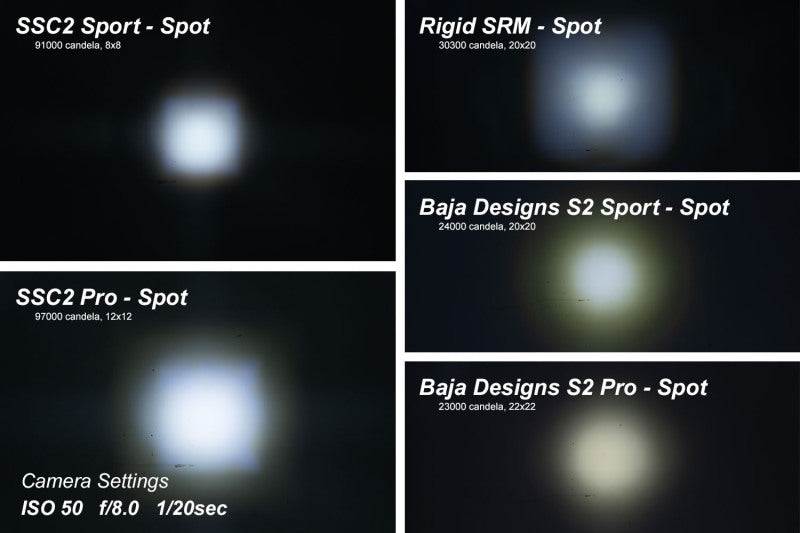

• Peak Beam Intensity : 16,000 Candela
• Wattage : 12.8W (Main Beam), 0.7W (Backlight)
• Current Draw : 1A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

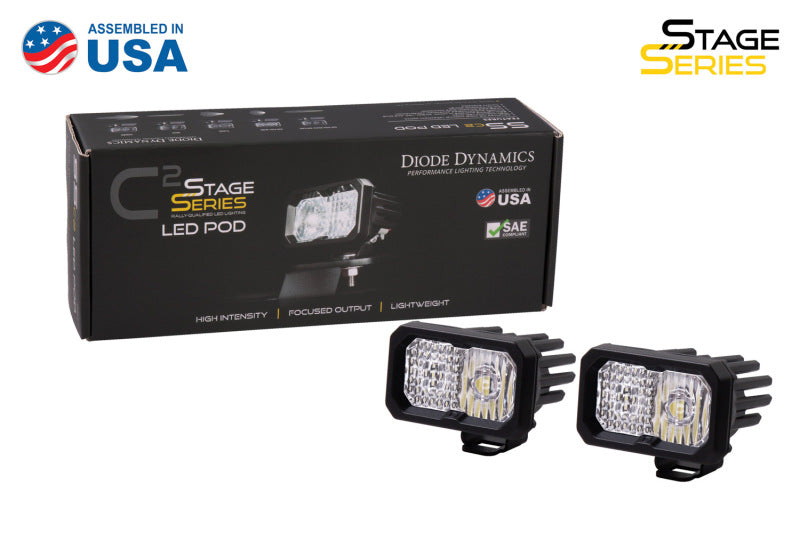

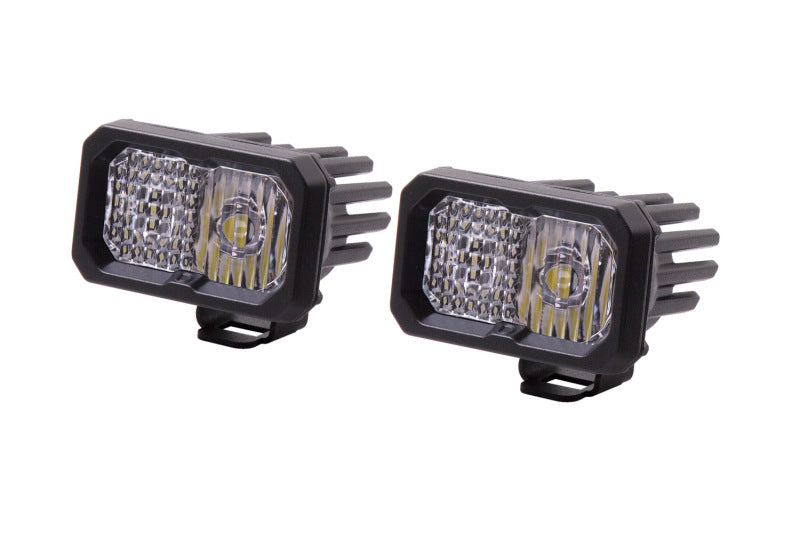

• LED Pods : One Pair of C2 2 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Combo beam pattern is intended for off-road or auxiliary use only
• Amber backlight requires a separate 12V power source tap if not using a dedicated Diode Dynamics harness
