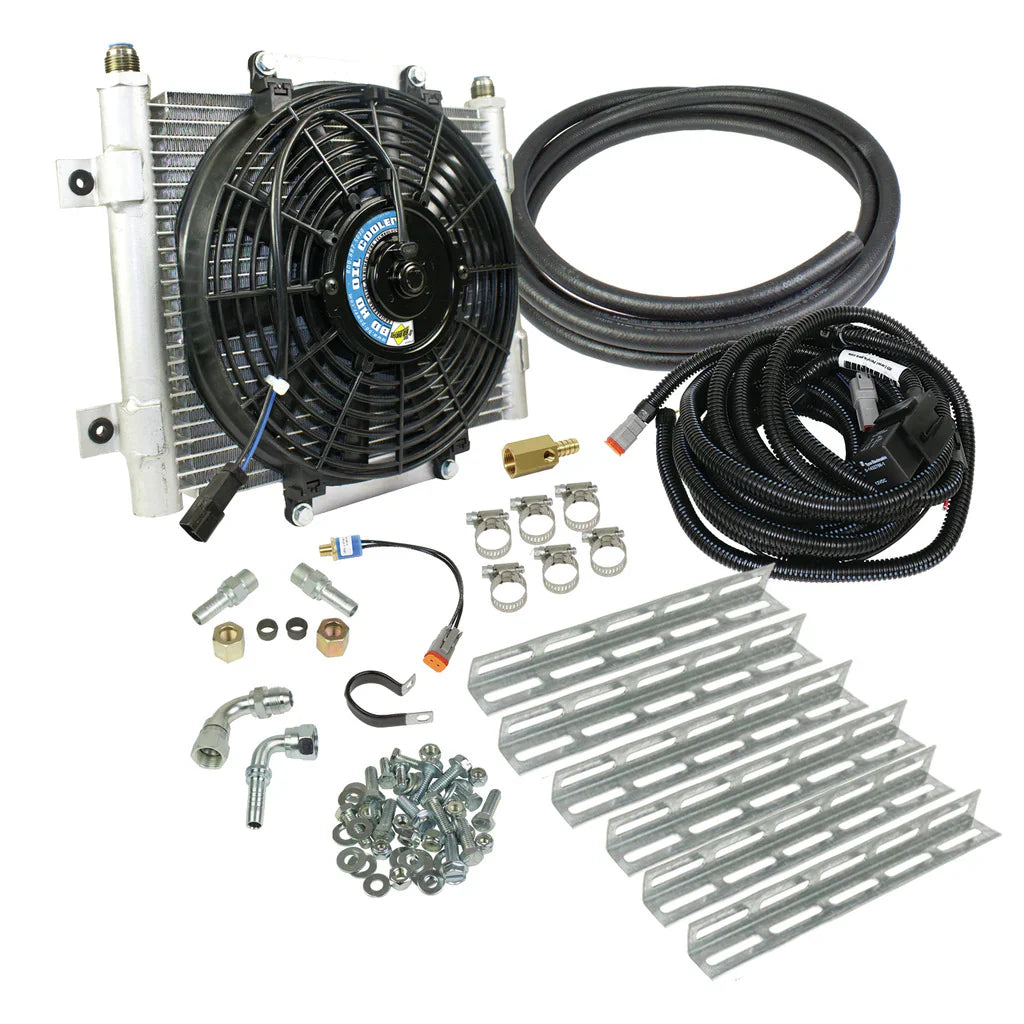

Universal Xtrude Transmission Cooler w/ Fan - Complete Kit 5/16" Lines (1030606-5/16)

The BD Diesel Xtrude Transmission Cooler with Fan is a complete kit engineered for superior cooling performance, providing 22% more cooling over other designs. The cooler core features 200 Micro Extruded passages that create a large surface area to efficiently transfer heat for external airflow cooling. Its turbulent oil flow design promotes a more complete and effective cooling process. The cooler utilizes large 5/8-inch ports to prevent inlet/outlet restriction, and its furnace brazed rails have been rigorously tested to withstand 300psi of pressure. Ultimate automatic oil temperature control is achieved with a thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan. This combination achieves a rating of 33,930 BTU/HR and is rated for in excess of 30,000 GVW. The complete package includes all necessary fittings, clamps, hoses, and hardware, as well as a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation. A pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and ensure a factory-like installation look.

Features

• Provides 22% more cooling over other designs
• Features 200 Micro Extruded passages for maximized heat transfer
• Turbulent oil flow design promotes more complete cooling
• Large 5/8-inch ports prevent fluid restriction
• Furnace brazed rails tested to 300psi of pressure
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• Rated for 33,930 BTU/HR and in excess of 30,000 GVW
• Complete kit includes all fittings, clamps, hoses, and hardware
• Comes with a Build-It-Yourself galvanized bracket kit for easy installation
• Pre-wired loomed harness with fuse and relay features OEM style sealed connectors

Specs

• Cooling Improvement: 22% over other designs
• Passages: 200 Micro Extruded
• Port Size: 5/8-inch
• Pressure Rating: Tested to 300psi
• Fan: 80-watt, 10-inch, 800 CFM electric fan (thermostatically controlled)
• BTU/HR Rating: 33,930
• Line Size: 5/16-inch

Notes

• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units.
