2019-2022 GM 1500 AT4X / ZR2 1.75" Leveling Kit (ZONC1174)

Description

Complete 1.75" leveling kit recommended for AT4X. The Trail Boss suspension is not as raked from the factory, so installing without the thin preload spacer will net 1-3/8" of lift for a level stance.

Features

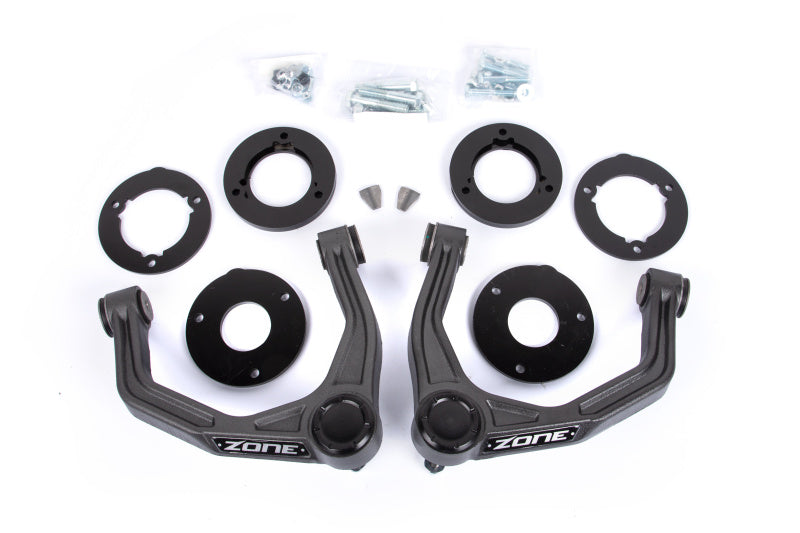

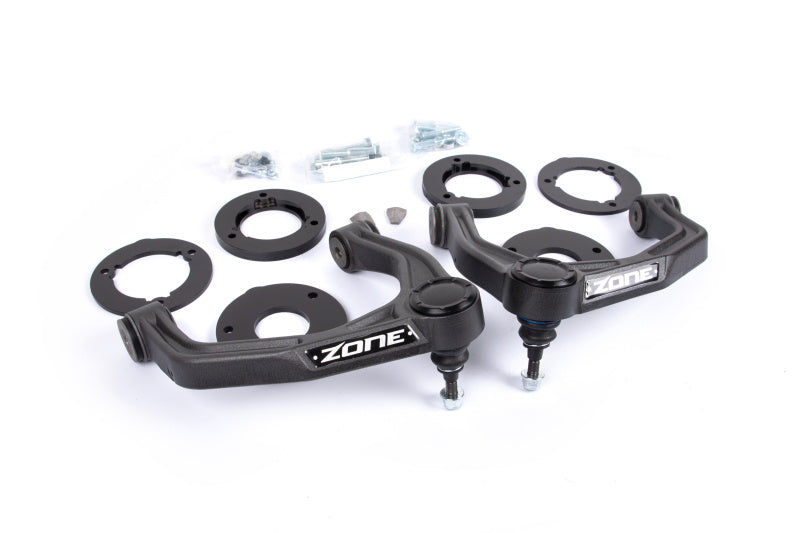

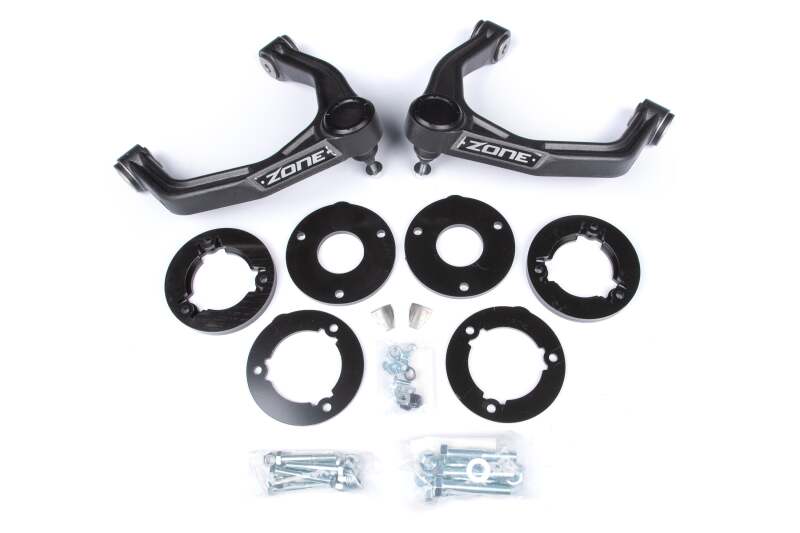

• 3-piece design with top mount spacer and 2 preload spacers to raise ride height without over-extending suspension during droop travel
• High strength adventure series upper control arms allow more travel, increase strength and correct issues caused by kits using the factory UCAs
• Maintains ride quality and handling characteristics
• Allows clearance for 33-34" tires
• Includes Factory Protection Plus

Notes

• Tires wider than 295 cannot be installed on factory wheels due to clearance with the steering knuckles
• Will not fit Adaptive Ride Control (ARC) equipped models
• 2022 models equipped with Super Cruise have not been tested
• Tire and wheel fitment, 5.5" max backspacing due to UCA clearance: 35/12.50 (18x9, 20x9); 33/12.50 (18x9, 20x9, Chevy); 295/60 (20x9, GMC); 305/55 (20x9, Chevy); 295/65 (18x9, GMC & Chevy); 295/70 (17x9, GMC & Chevy)
