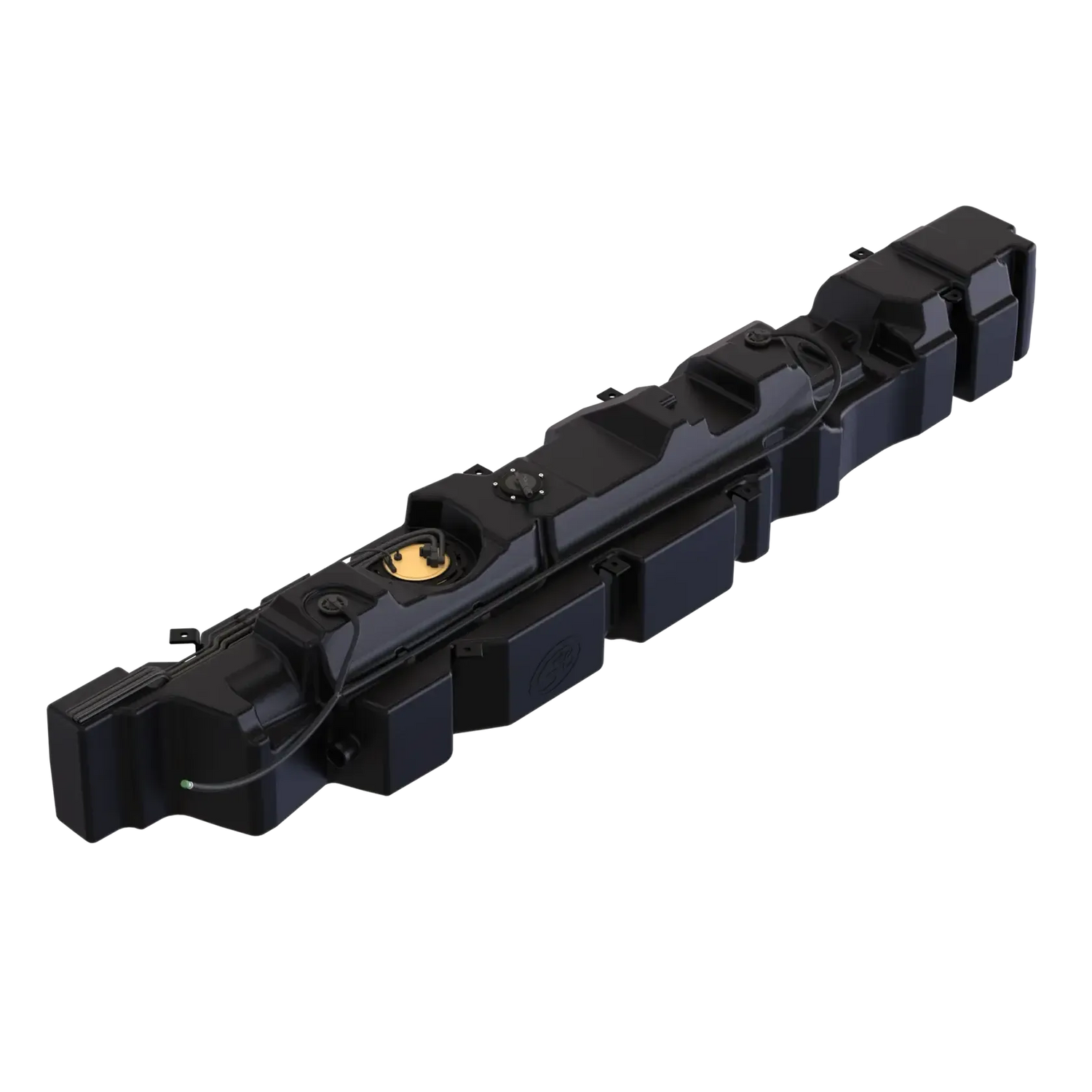

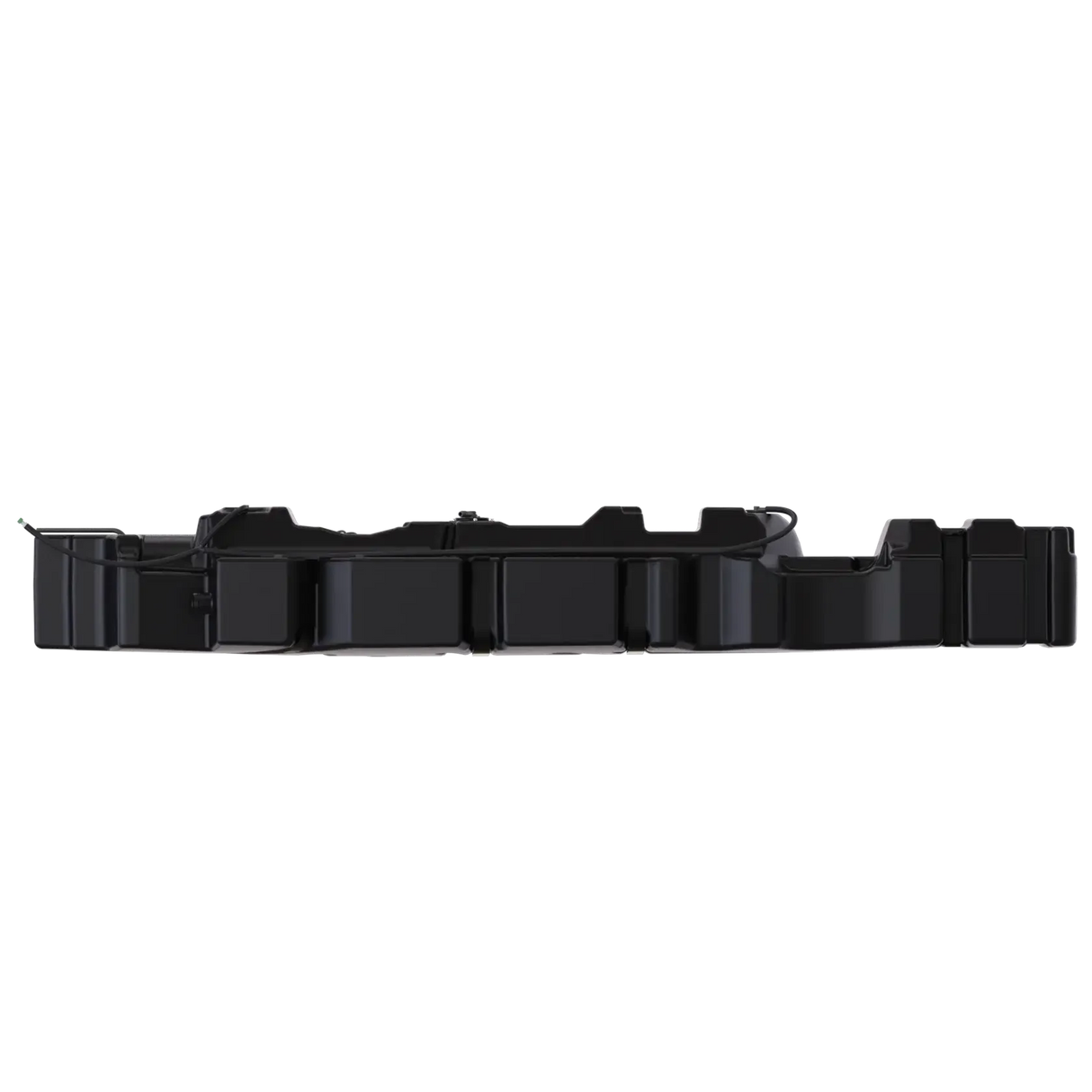

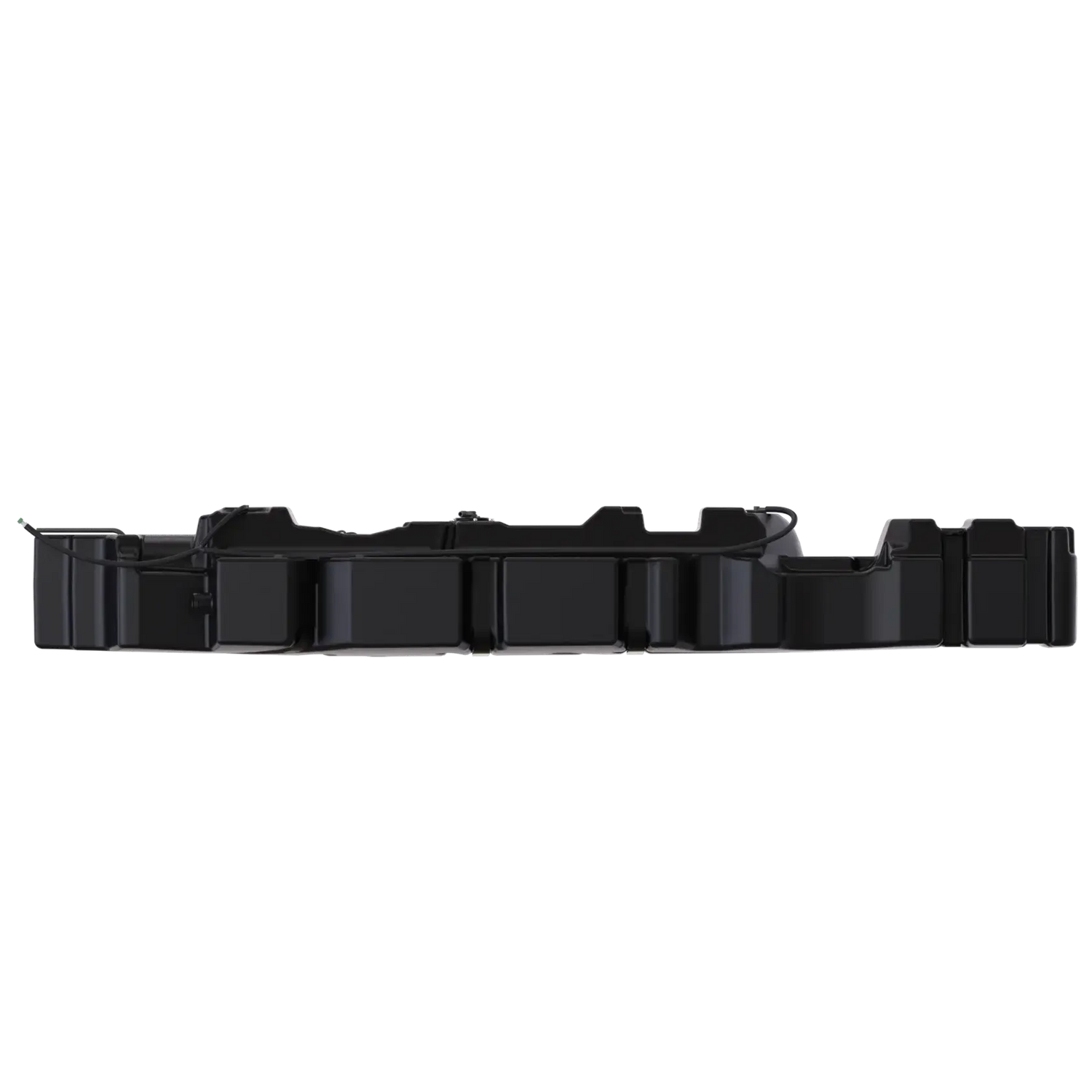

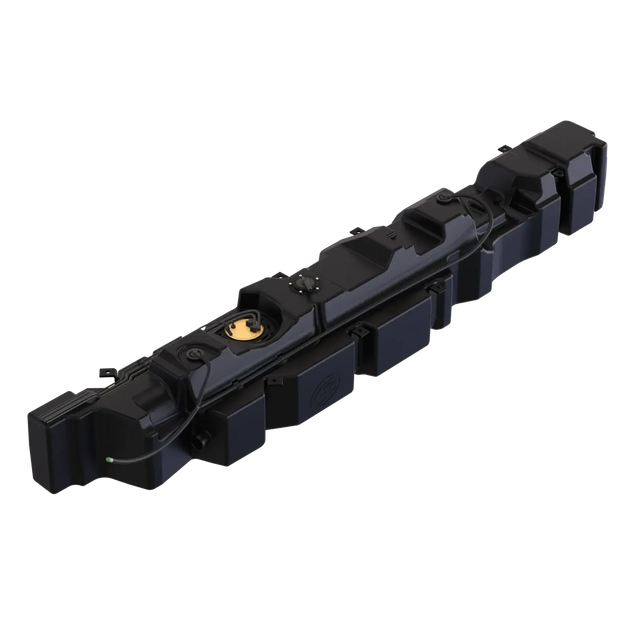

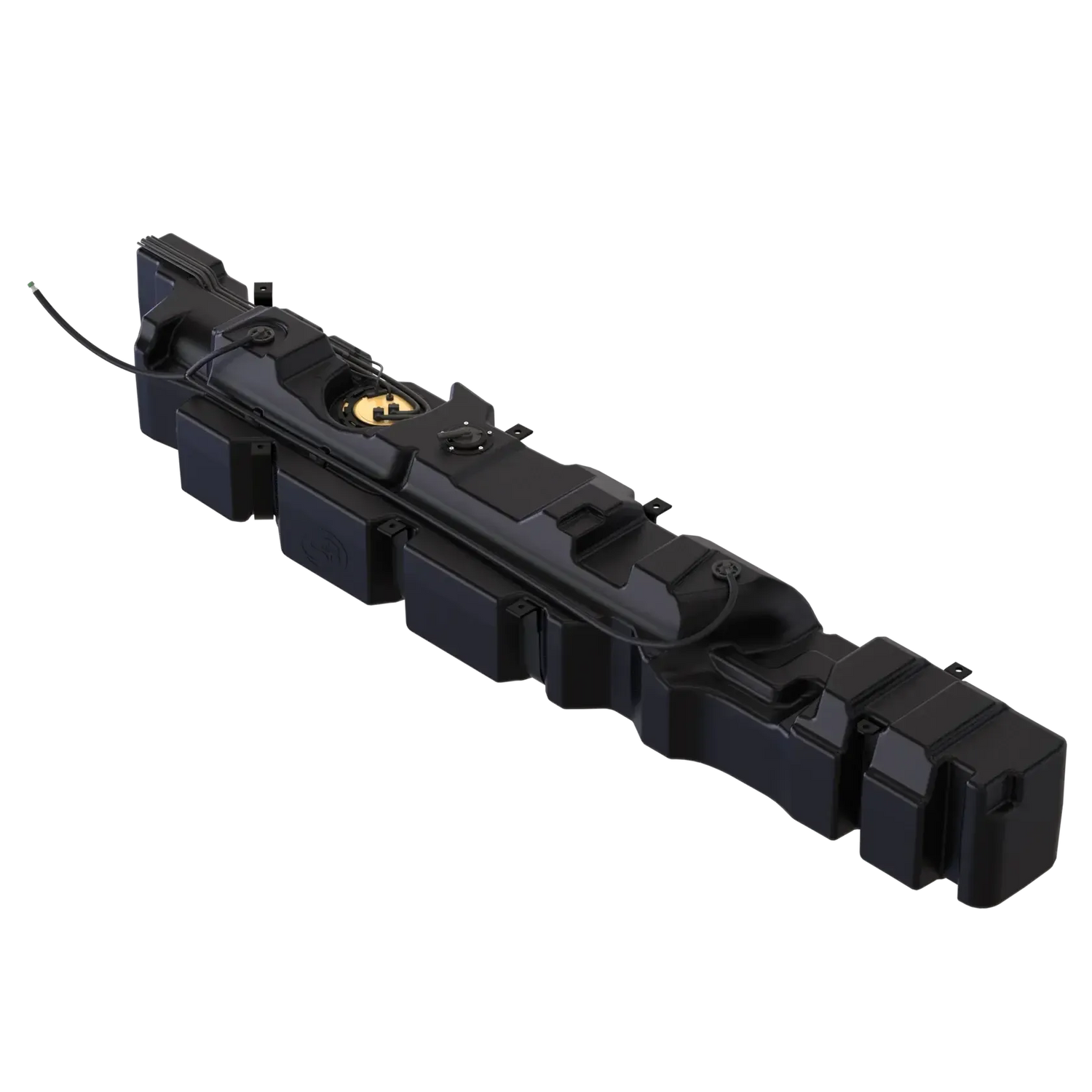

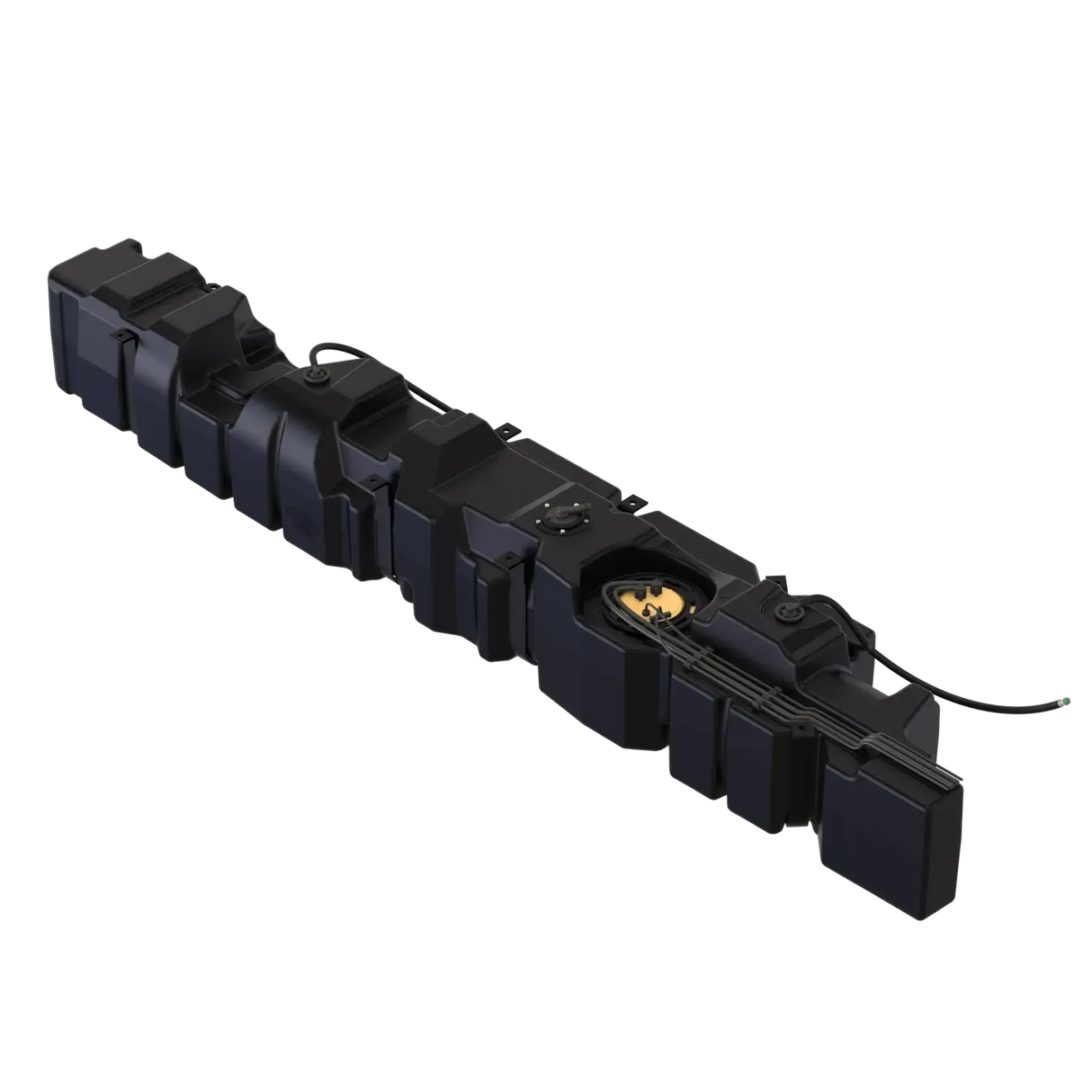

2019-2025 Mercedes 45 Gallon Replacement Fuel Tank (10-1031)

Description

Upgrade your 2019-2025 Mercedes with this 45-gallon replacement fuel tank. It fits in the original spot with an extra rear strap and doesn’t extend beyond the original tank’s space. Made from durable ¼” thick crosslink polyethylene, it offers more fuel capacity without affecting your fuel gauge accuracy. Note: the distance-to-empty reading will still reflect the original tank size. Backed by a lifetime warranty for lasting reliability.

Part Number: 10-1031

Features

• Midship tank type
• Approximately 45 gallons vs 24 gallons OE
• Weight 45lbs
• Sump: No
• Drain: No
• Sending unit OE
• Straps included
• Dimensions 98.28"x15.41"x14.17"
• Warranty

Installation

• Click Here

Notes

• This tank will NOT fit:

  • 144” Dually Vans
  • 170” Crew Vans (1 row of seats)
  • Vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
  • Storyteller XO (accommodation coming soon)
• 2019-2022 Vans: Part # 10-1027 is a shorter 40-gallon tank and will work for 170" Crew Vans, 144” Dually Vans, and vans with plumbing 5"+ behind the OEM tank
• Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap).

• When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
