2019-2024 Ram 1500 HD Carli-Spec 1.5" Lift Commuter System (CS-RAM15COM-CS-RBL-19-HD)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$3,895.20 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Upper Control Arm

Optional

With the Commuter system, it’s not necessary to purchase the Carli Upper Control Arm. The factory arm DOES limit the travel of the Commuter kit. The Commuter kit is actually capable of about 1" more travel than it's spec'd with BUT, we had to install a short internal spacer in the coilover to limit the travel of the shock and ensure customers were not topping out on the factory ball joint in the upper control arm. The King Shocks we offer include our control arms and achieve this extra 1" down travel. Being more budget and on-road focused, we limited the travel of the Commuters for safe operation with the factory control arm. If a customer decided to purchase the Commuter for it's on-road prowess and elects to purchase the Carli Control Arms, the internal spacer could be removed by the user (or user's selected shock service facility) to achieve the same suspension travel as the Performance Kits.

Extended Brake Line Kit

Optional

If one were to purchase the Commuter System and the Carli Upper Control Arm, then removed the internal shock spacer to achieve the full down-travel of which these shocks are capable, this brake line kit would be required as the factory lines will not be sufficient length. These are NOT required for the standard Commuter System.

Subtotal

Part Specs
Description

This suspension system provides a significant upgrade to the Ram 1500's on and off-road performance. The Carli-SPEC shocks offer a plush ride over any terrain with smooth transitions between speeds. They are fully rebuildable, serviceable, and tunable. The system provides exceptional damping, heat dissipation, control, and stability. The rear sway bar end links are engineered to correct the geometry of the rear sway bar on lifted trucks, preventing binding during extended suspension travel. The multi-rate rear coil springs provide a 1" lift and a lighter rate for optimal ride quality.

Part Number: CS-RAM15COM-CS-RBL-19-HD

Features
  • Carli-SPEC 2.5" Coilover IFP Front, 2.0" IFP Rear Shock Pkg.
  • Fabricated uniball upper control arms that provide 1" more down travel over factory and reduce vibrations with greasable bushings at the frame side mounting points
  • Provides 9" of travel in front and 12" in the rear

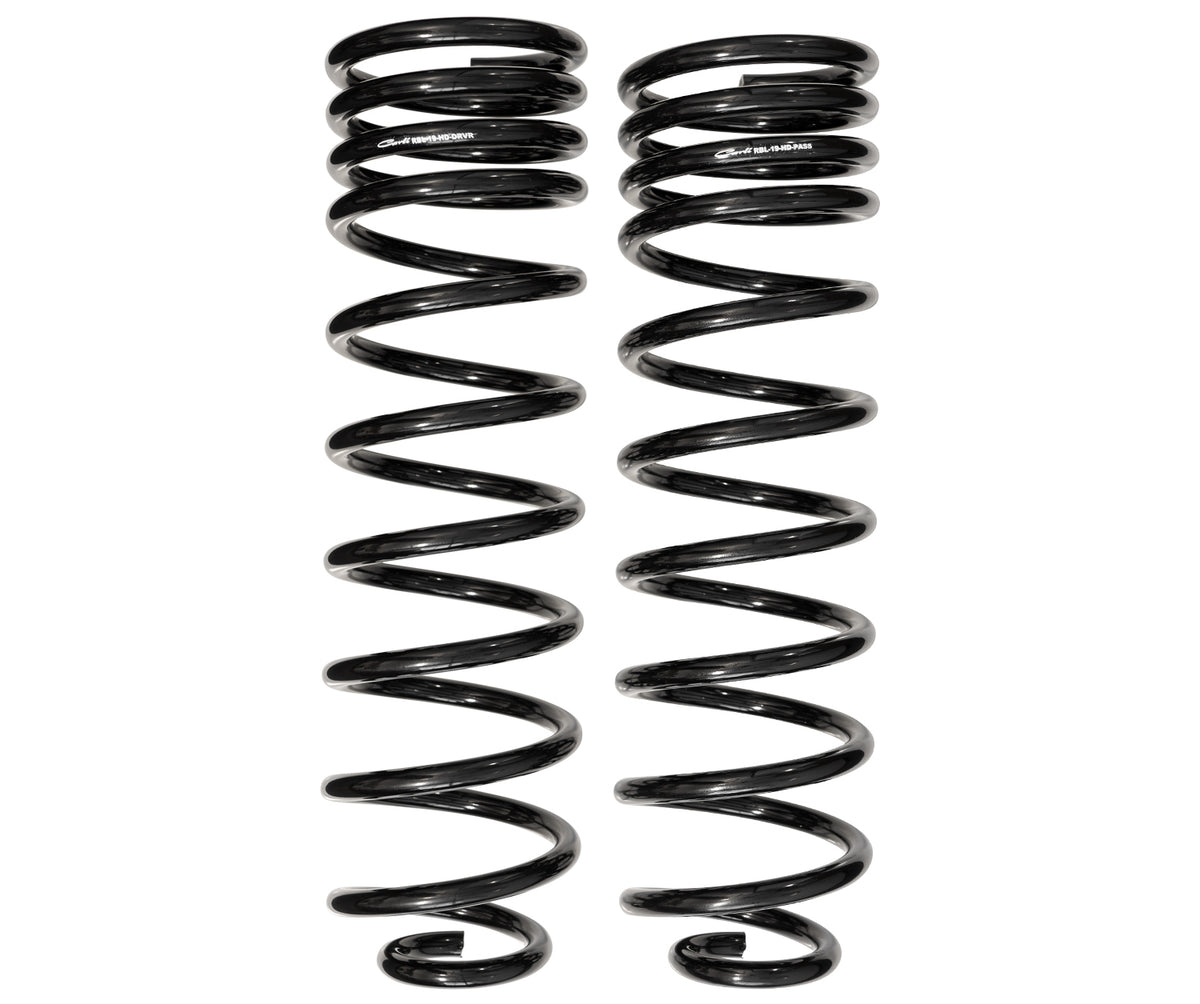

  • Multi-rate rear coil springs provide 1" of rear lift with a lighter rate for optimal ride quality

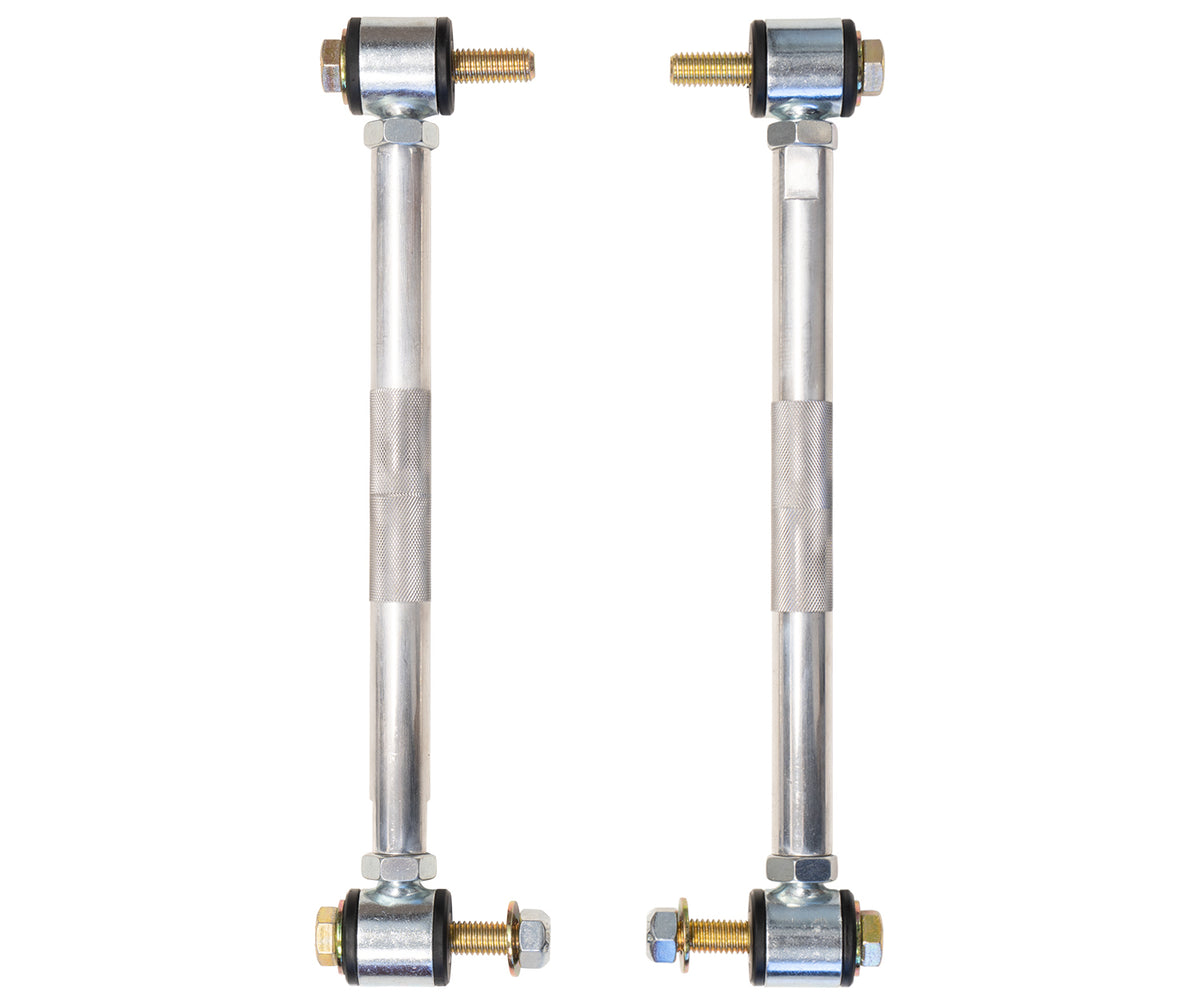

  • Extended Rear Sway Bar End Links to correct sway bar geometry
Notes
  • Carli offers three springs for the 2019+ Ram 1500 Platform. The 1500 1/2" Rear Spring included with the 1500 system is ONLY applicable for non-Rebel/Off Road Package trucks without the Ram Box of Multi-Function Tailgate.
  • The Rebel 1/2" Rear Spring is included with the Rebel system; these will work for standard 1500s with Ramboxes/MFT OR small constant loads.
  • Lastly, a 1/2" Rebel HD (500lb Constant Load) that will work for Standard 1500s with Ram Box/MFT or around 700lb constant loads or Rebels with Rambox/MFT or 500lb bed-loads.
  • Lift height will vary if you have a Multi-Function Tailgate or Ram Box options. EcoDiesels can expect 1/2" LESS of front lift than stated

Vehicle Fitment

Part Specifications

  • Part No.
    CS-RAM15COM-CS-RBL-19-HD
  • Vendor
    Carli Suspension
  • Shipping Weight
    108.0001 kg
  • Placement
    • Front
    • Rear
