1973-1976 GM HD / K20 Pickup 4" Lift Kit with FOX 2.0 Performance Shocks (BDS112FS)

Take your 1973-1976 Chevy and GMC 3/4 ton K20 / K25 truck or SUV to the next level with this BDS 4" lift kit, with clearance for up to 35" tires. Up front are Glide-Ride leaf springs, a 4" steering arm for steering correction, brake line brackets and precision tuned NX2 shocks. The rear uses a high-strength block and add-a-leaf, longer u-bolts and a matching set of NX2 Nitro shocks. The Glide-Ride leaf springs use an exclusive triple-stage, multi-leaf progressive rate design for a smooth ride under any load.

Features

• Glideride leaf springs provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Easy, 100 percent bolt-on installation
• 2" impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Leaf Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• Trimming may be required (35 x 12.5 with 15 x 8 and 3.5 in. backspace).

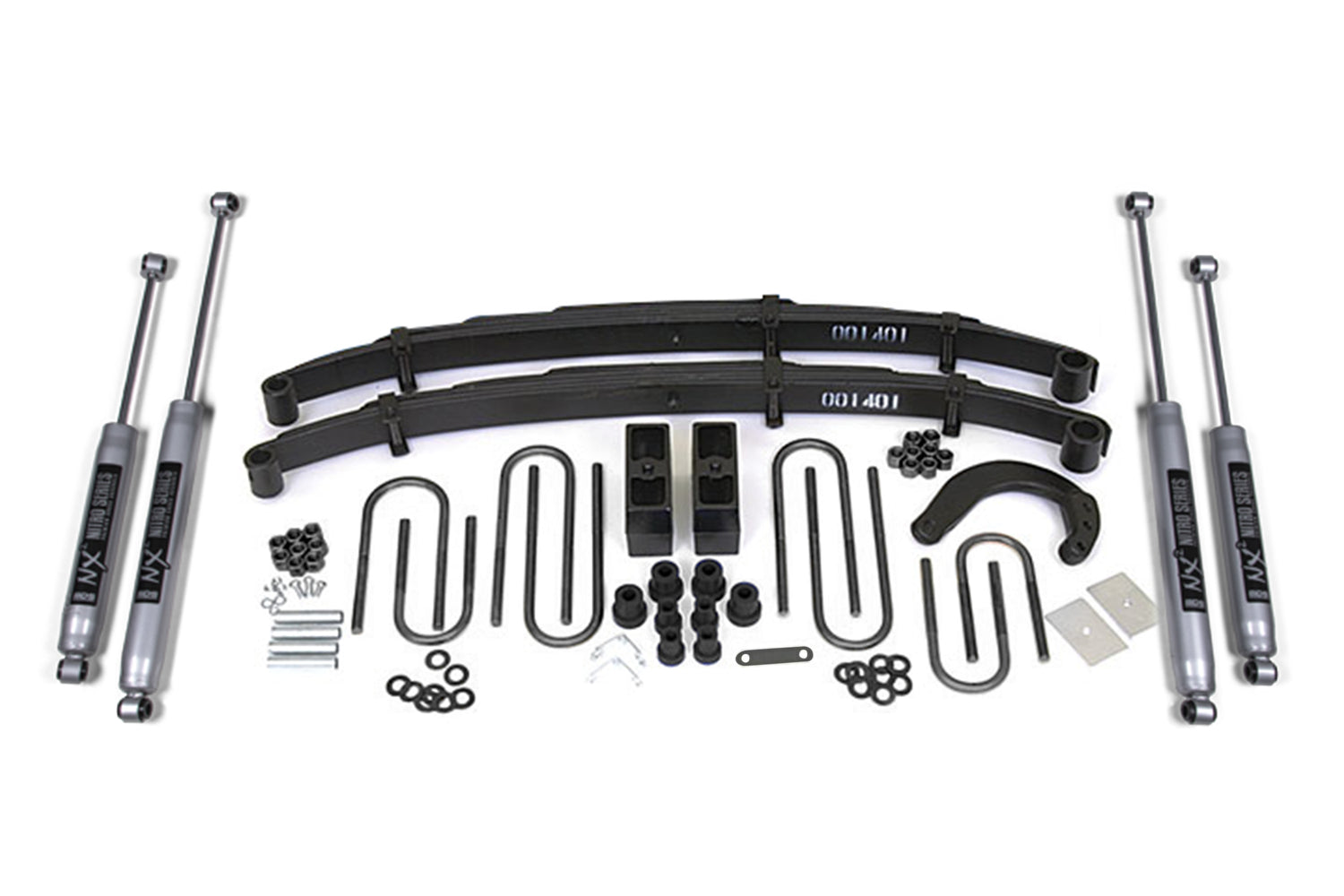

Includes

• BDS001401, 73-91 GM 4in Front Spring (UPC 658848611164)
• BDS011002, 69-76 GM Front Box Kit (2.75 dia. front) (UPC 658848611638)
• BDS011209, GM 1/2 ton 2 Inch Rear Box Kit (UPC 658848611690)
• BDS081401, 69-91 GM 4 Steering Arm (UPC 658848618064)
• BDS119157, GM/Dodge Rear Long Add-a-leaf (UPC 658848618774)
