1973-1976 GM HD / K20 Pickup 4" Lift Kit with NX2 Shocks (BDS114H)

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• (Trimming may be required) 35 x 12.5 with 15 x 8 and 3.5 in. Backspace
• Leaf Springs
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.
• NX2 Nitro Series
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• Front Lift Method: Leaf Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Details

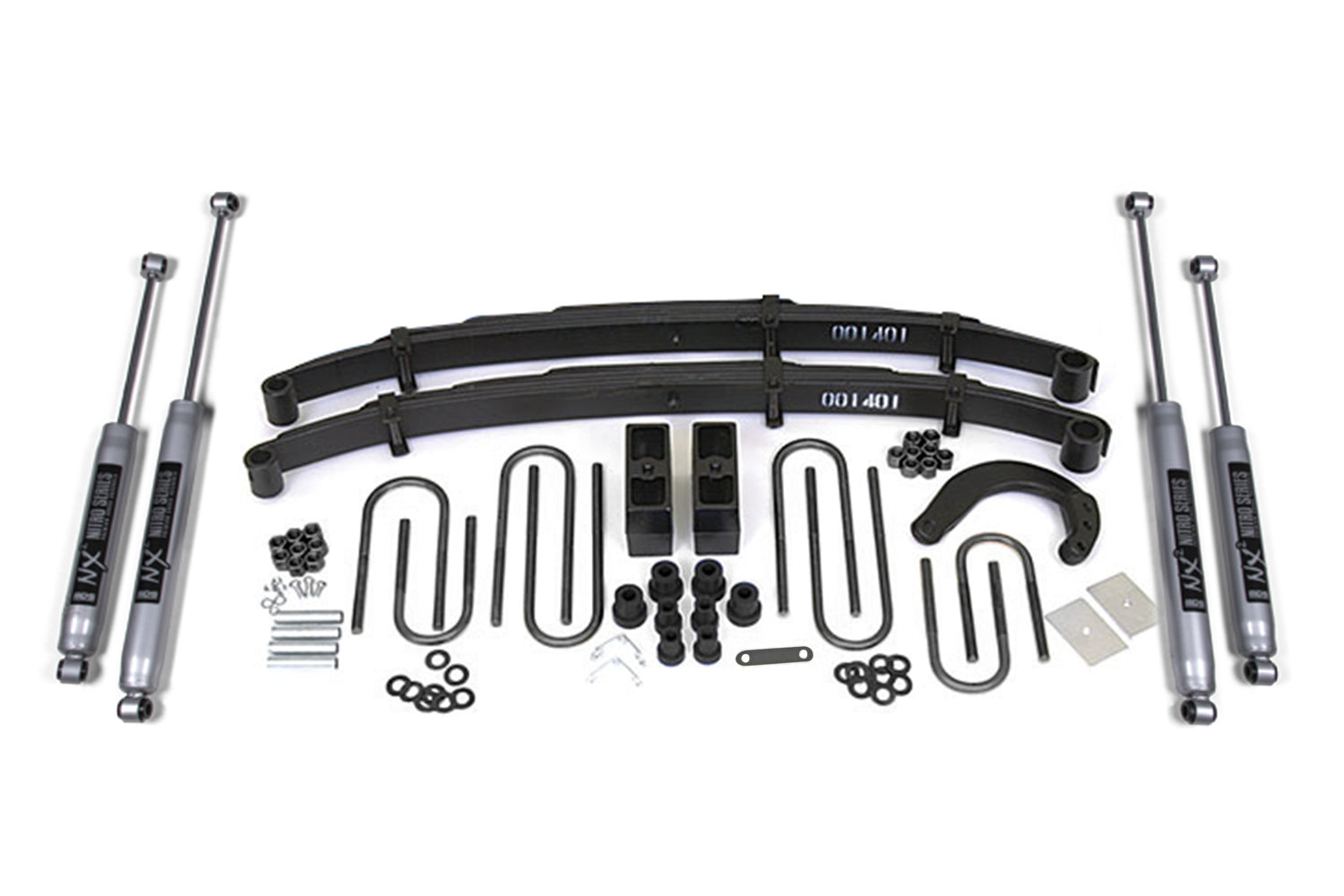

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.

Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Easy, 100 percent Bolt-on installation Glideride leaf springs to provide full lift height and increased capacity New steering arm maintains proper steering angles for improved handling Cast steel blocks and add-a-leaf provide level stance from front to rear Standard NX2 Nitro shocks with vehicle-specific valving for better control Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164 Includes two BDS001408, GM 3/4 ton 4in Rear Spring-56 eye-to-eye, UPC Code 658848611171 Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638 Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064 Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402 Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440 Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300
