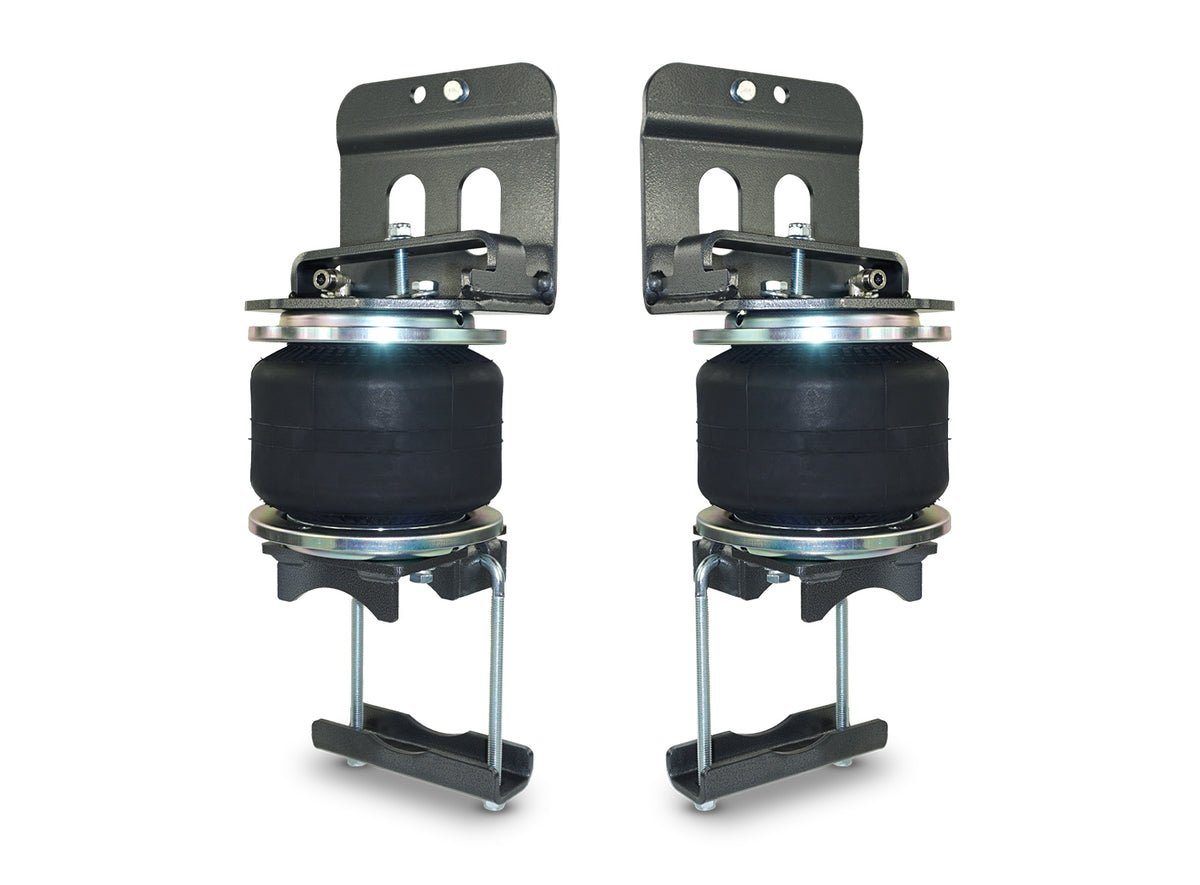

1975-2026 E-350 SRW/DRW AlphaHD Pro Rear Air Suspension Kit (HP10690-J)

Description

A loaded E-350 sits low in the back and drives like it. Pacbrake's ALPHA HD air springs add the load support the factory rear suspension never had, so the van or chassis stays level, tracks straight and stops wallowing over bumps when it is working.

Up to 5,000 lbs of load leveling capacity covers cargo vans, cutaways, box and service bodies and Class C motorhomes. Everything bolts on behind the rear axle with no vehicle modification.

This is the PRO version: the air springs carry an internal flexible polyurethane bumper that stops the bag bottoming out if it loses pressure, and lets you run at 0 psi unloaded for factory ride comfort. Jounce bumpers do reduce bag travel, so if you need maximum travel for off road use, launching boats or dropping the rear to hitch a trailer, choose the HP10690 kit instead.

Part Number: HP10690-J

Features

• Up to 5,000 lbs of load leveling capacity
• Double convoluted air springs
• One piece aluminum end caps, not plastic
• 20 support wires for maximum strength and durability
• Internal polyurethane jounce bumper, so the bags can be run at 0 psi when unloaded
• No vehicle modification required
• Lifetime warranty

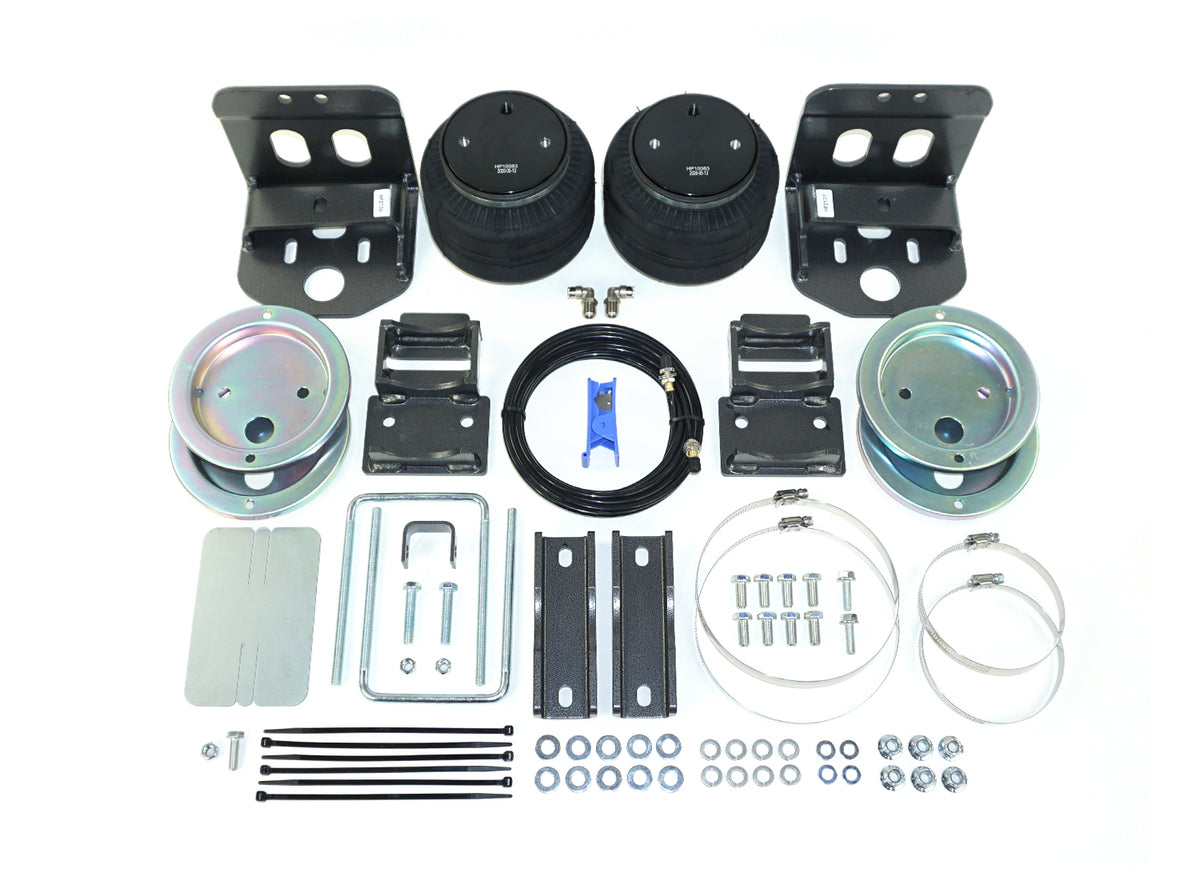

Included:

• 2 air springs
• Corrosion resistant roll plates
• Precision laser cut powder coated steel brackets
• Grade 5 plated hardware
• All accessories required for the perfect bolt on install
• Comprehensive installation guide

Notes

• Fits E-350 SRW and DRW van, stripped chassis, cutaway and Class C motorhome models
• Will not fit 2025-2026 stripped chassis and full custom body models
• Never exceed the manufacturer's recommended Gross Vehicle Weight Rating
