1977-1987 K15 / Suburban 4" Lift Kit with NX2 Nitro Shocks (BDS125H)

Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 35 x 12.5 with 15 x 8 and 3.5 in. Backspace
• 4 Inch Block Kit
• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.
• 4 Inch Block Kit with Add-A-Leaf
• Help freshen up old worn-out factory leaf springs.
• Provides an additional 1 inch of lift.
• Includes new center pins.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Leaf Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• (Trimming may be required)

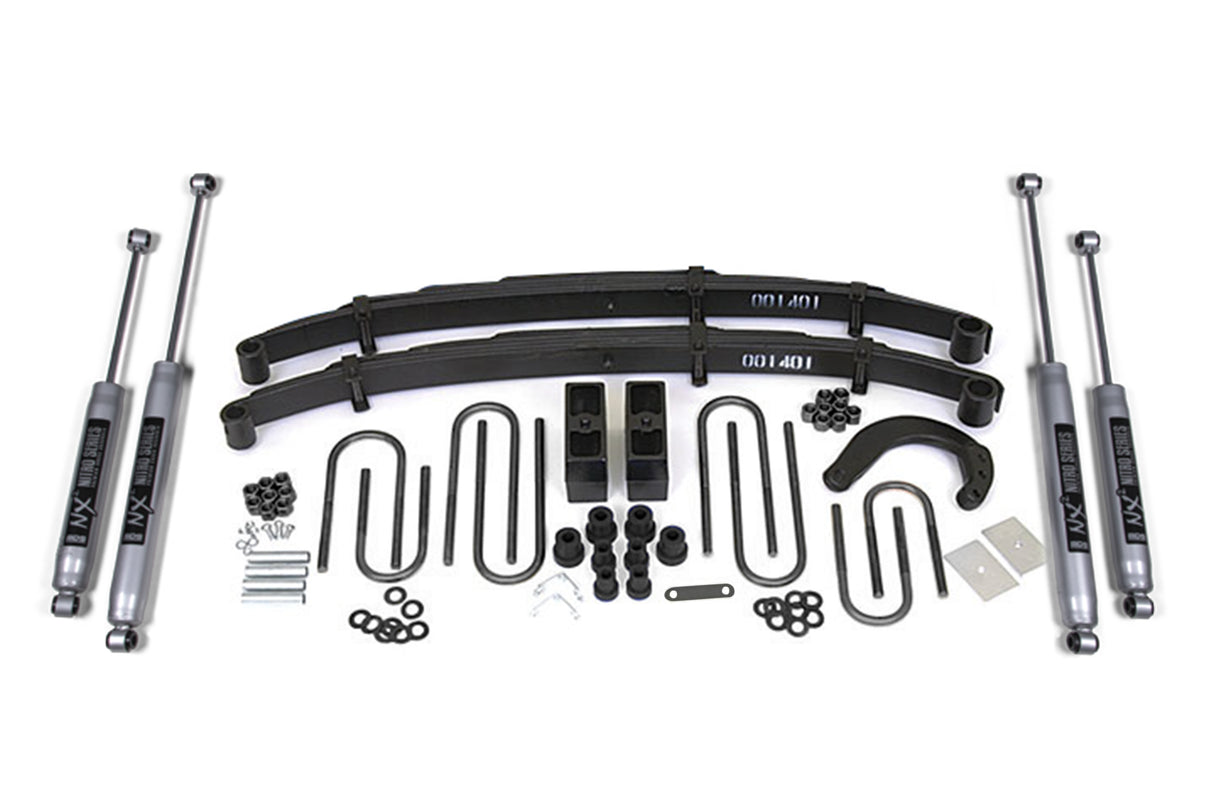

Includes

• BDS001401, 73-91 GM 4 Inch Front Spring (UPC 658848611164)
• BDS011001, 77-87 GM Front Box Kit (3.00 dia. front) (UPC 658848611621)
• BDS011209, GM 1/2 ton 2 Inch Rear Box Kit (UPC 658848611690)
• BDS081401, 69-91 GM 4 Steering Arm (UPC 658848618064)Includes one BDS119157, GM/Dodge Rear Long Add-a-leaf (UPC 658848618774)
• BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1 (UPC 711745609402)
• BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609440)
