1977-1987 K15 / Suburban 4" Lift Kit with NX2 Nitro Shocks (BDS127H)

Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 35 x 12.5 with 15 x 8 and 3.5 in. Backspace
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Leaf Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• (Trimming may be required)

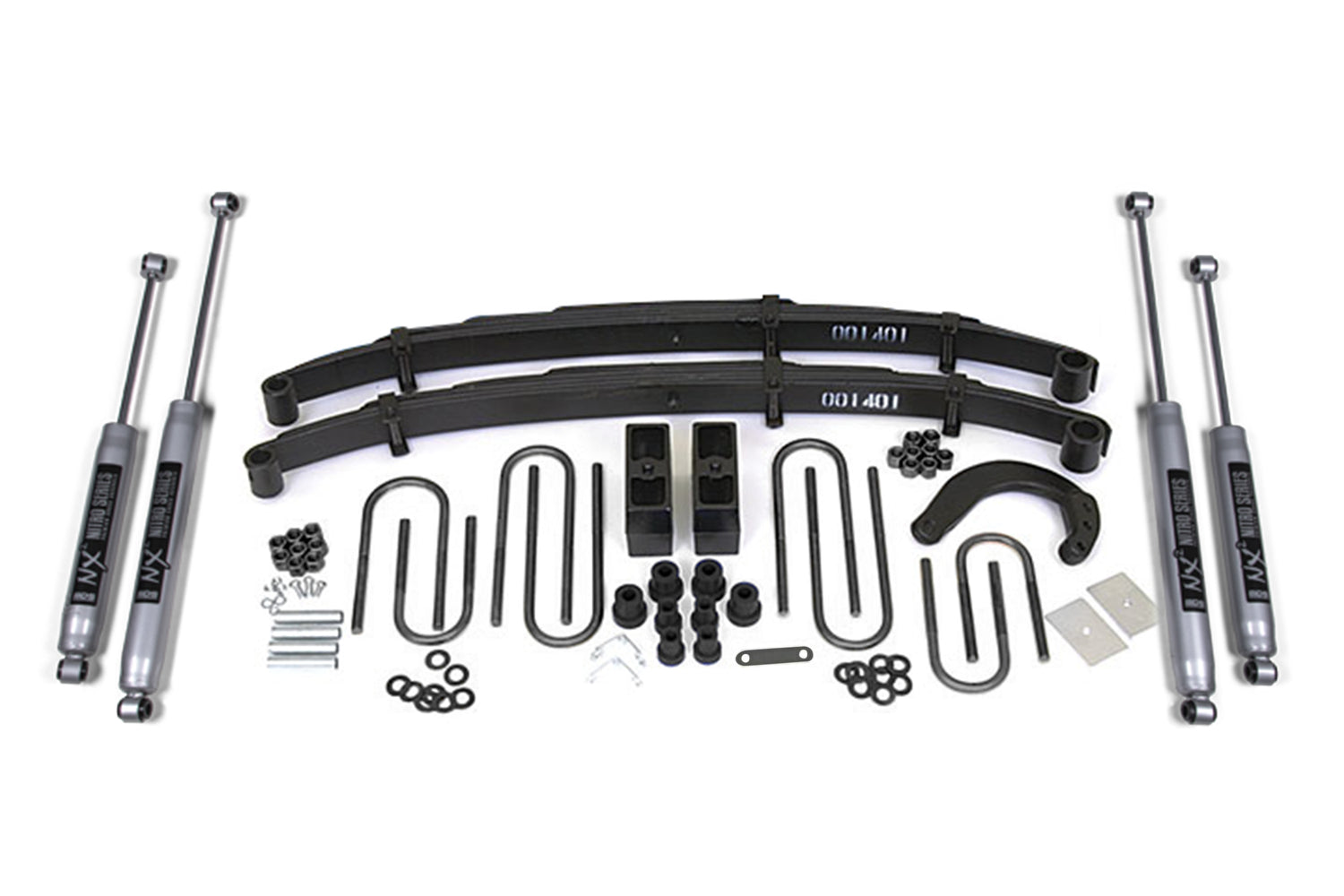

Includes

• BDS001401, 73-91 GM 4 Inch Front Spring (UPC 658848611164)
• BDS001409, GM 1/2 ton 4 Inch Rear Spring-52 eye-to-eye (UPC 658848611188)
• BDS011001, 77-87 GM Front Box Kit (3.00 dia. front) (UPC 658848611621)
• BDS011009, 73-91 GM Rear Box Kt (w/BDS 52in spring) (UPC 658848611669)
• BDS081401, 69-91 GM 4 Steering Arm (UPC 658848618064)
• BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1 (UPC 711745609402)
• BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609440)
