1984-2001 Cherokee 1.75" Lift Kit with NX2 Shocks (BDS426H)

Designed to improve stance, performance, and capability. BDS Suspension has designed this 1-3/4 inch lift kit for your 1984-2001 Jeep Cherokee XJ. Specially designed for the Cherokee, this 1-3/4 inch lift kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

Features

• Front Lift Method: Coil Spring
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 1.75 inch
• Rear Lift Height: 2 inch
• Transfer case lowering kit is not required for 2WD models.
• Front urethane coil spacer maintains factory ride
• Easy, 100 percent Bolt-on installation
• NX2 gas shocks for improved damping
• Allows clearance for 30 inch Tires
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• Includes one BDS014205, Jeep Cherokee XJ 2 Inch w/Chrysler 8.25 Rear, UPC Code 658848613915
• Includes two BDS85972, Shock- 21.70 x 13.40 x 2 - BP18/EB1, UPC Code 711745610217
• Includes two BDS85979, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1, UPC Code 711745610279

Details

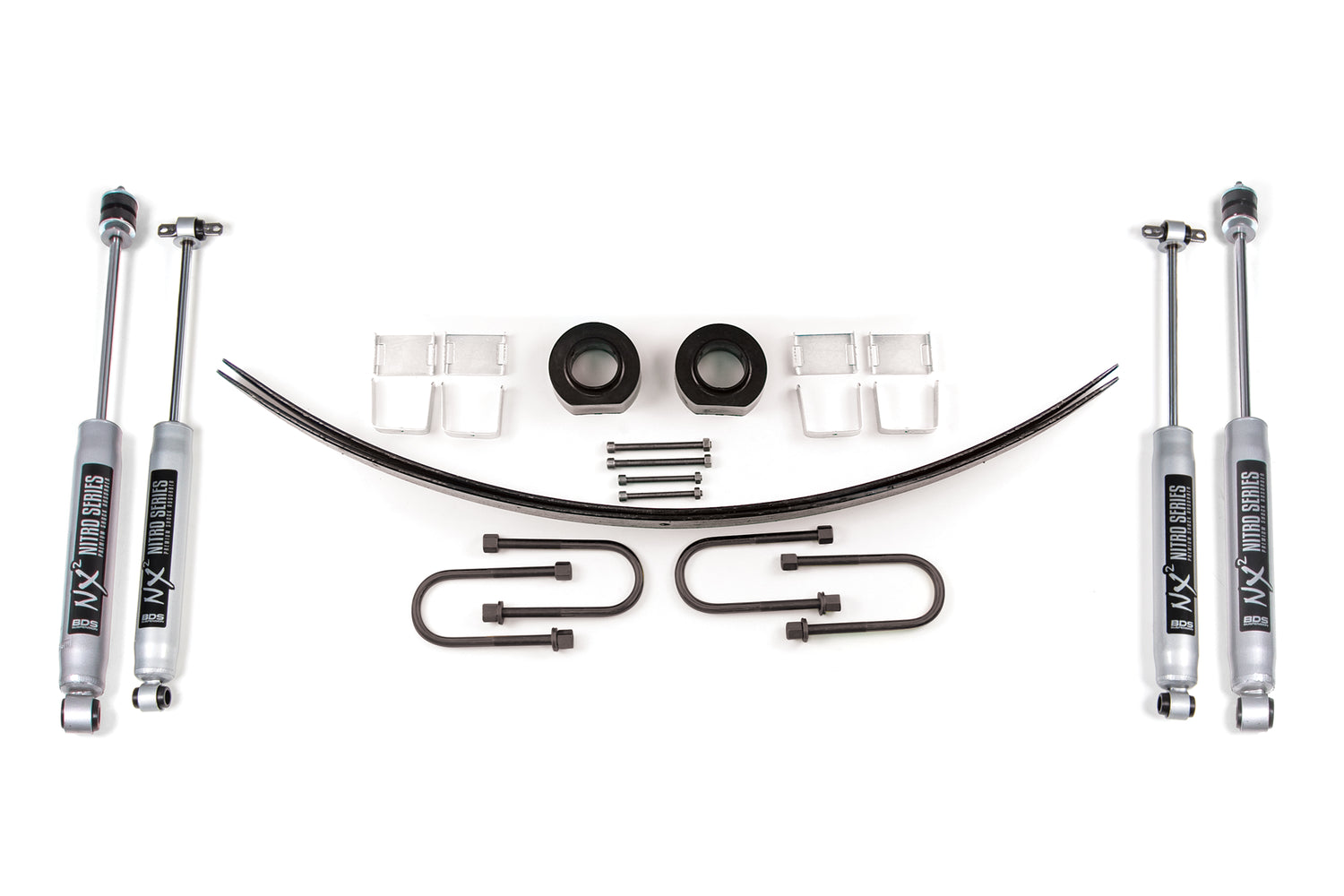

The lift kit includes two front 1-3/4 inch urethane coil spring spacers, long rear thin add-a-leaf springs, and NX2 Nitro or FOX Performance series shocks. Give your Cherokee XJ the extra height with this 1-3/4 inch lift kit from BDS Suspension. Front Lift Method: Coil Spring Rear Lift Method: Add-A-Leaf Shocks Included: Yes Front Lift Height: 1.75 inch Rear Lift Height: 2 inch Transfer case lowering kit is not required for 2WD models. Front urethane coil spacer maintains factory ride Easy, 100 percent Bolt-on installation NX2 gas shocks for improved damping Allows clearance for 30 inch Tires Rear Axle Option Chrysler 8.25

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.

Chrysler axles require 3 inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Shock Option NX2 Nitro Series
