1984-2001 Cherokee 3" Lift Kit with FOX 2.0 Performance Shocks (BDS432FS)

This BDS 3" lift kit sets up your 1984-2001 Jeep Cherokee XJ right with clearance for up to 31" tires. Up front you get Glide-Ride coil springs, extended sway bar links, and a transfer case drop to keep driveline angles correct. The rear uses a thin add-a-leaf and a 5/8" lift block to level the Jeep, matched to FOX 2.0 Performance shocks.

Features

• ProRide coil springs offer improved ride quality and more articulation
• Transfer case drop maintains proper driveline angles
• Easy, 100 percent Bolt-on installation
• NX2 gas shocks for improved damping
• Allows clearance for 31 inchTires
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2.5 inch

Notes

• Verify the make/model of rear axle prior to ordering.
• Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.
• Transfer case lowering kit is not required for 2WD models.

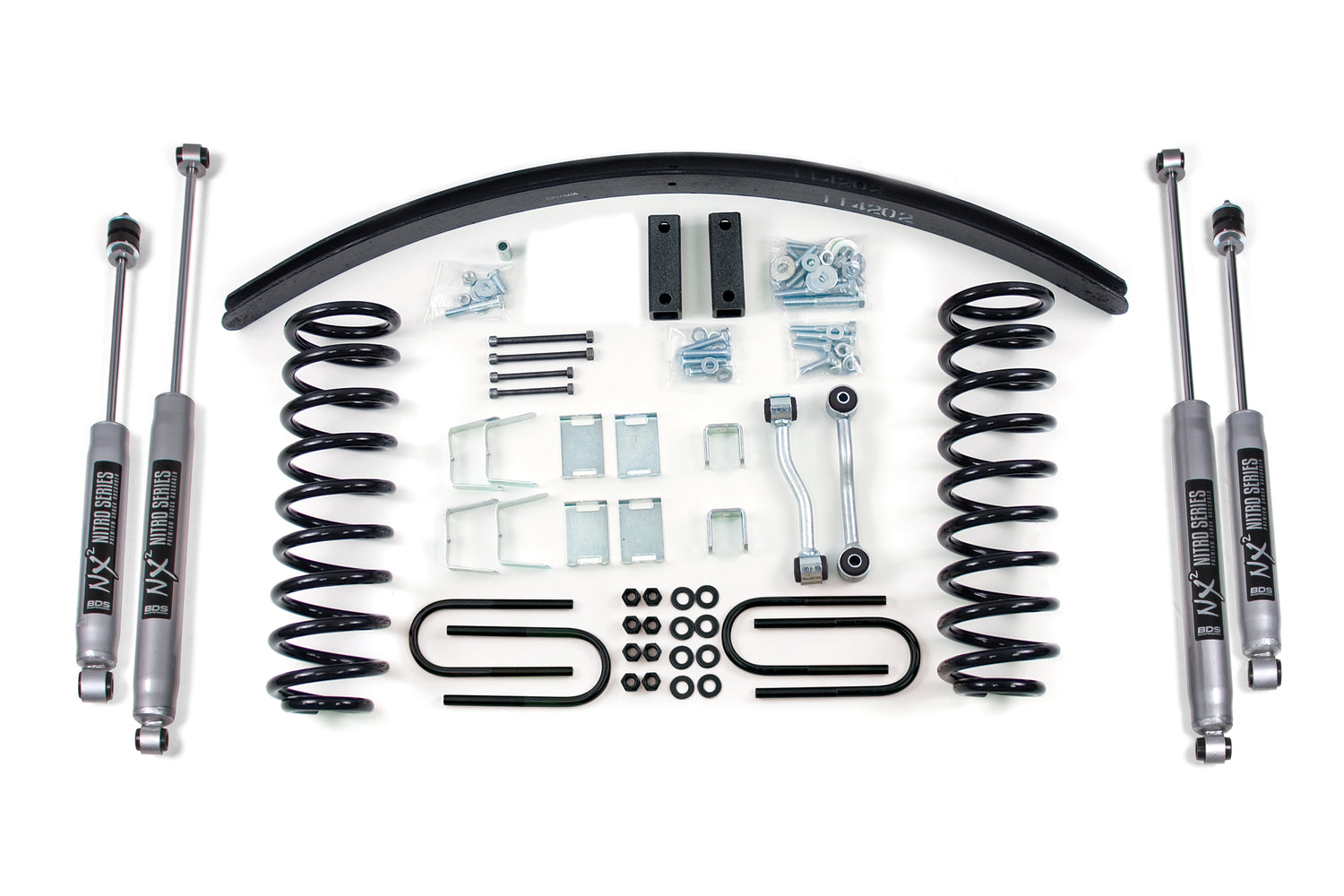

Includes

• BDS004209, 84-01 Jeep XJ 3in Rear Spring (UPC 658848611461)
• BDS014302, 84-01 Jeep XJ 3in Bx Kt (w/BDS Rear) (UPC 658848614004)
• BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in (UPC 658848616749)
• BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid (UPC 711745604957)
• FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
• FOX98224980, Fox 2.0 Shock 23.65 x 15.05 x 2-BP18/EB1
• UBT4012, 1/2 x 3 x 6-3/4 Round U-bolt (UPC 711745613454)
