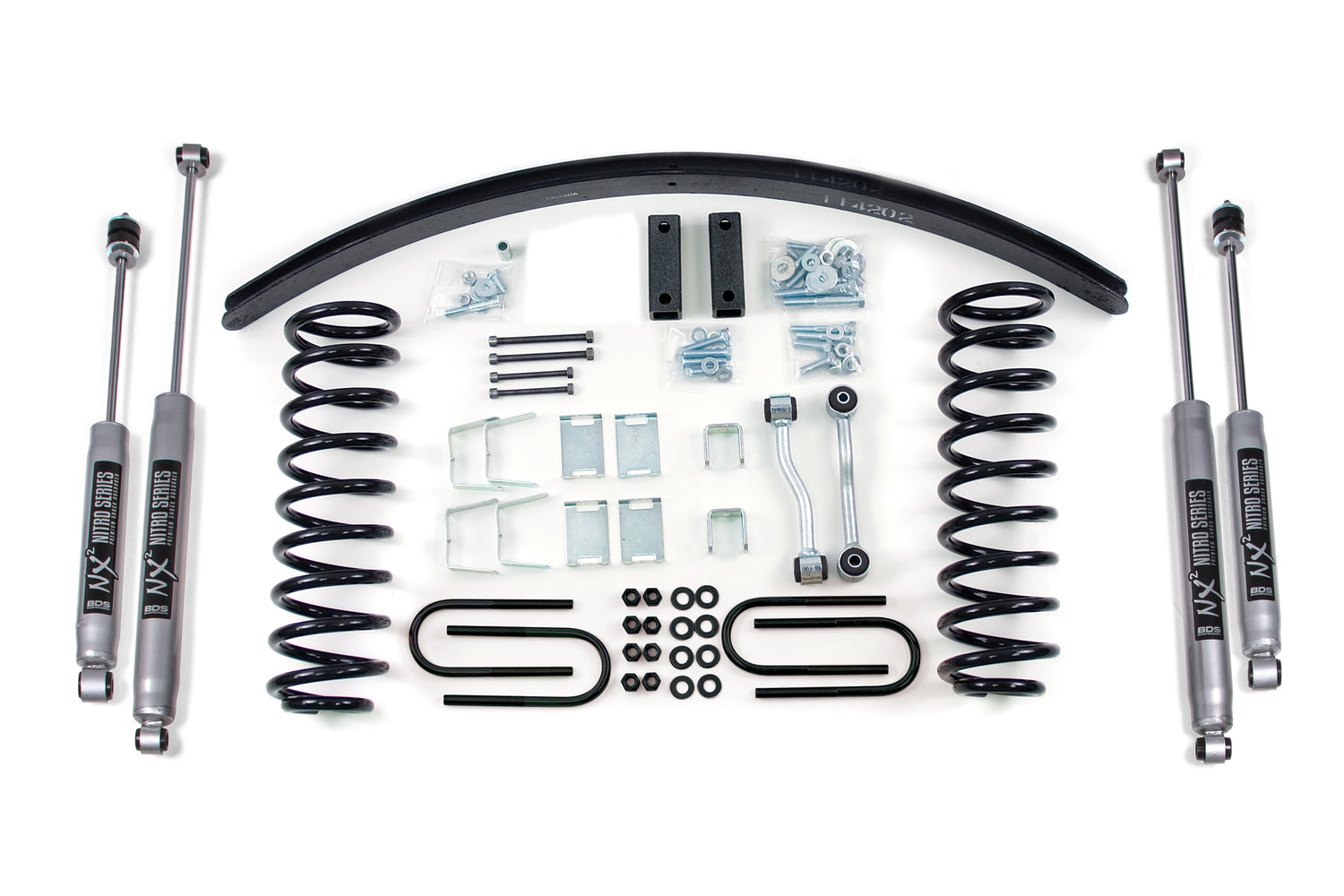

1984-2001 Cherokee 3" Lift Kit with FOX 2.0 Performance Shocks (BDS430FS)

This BDS 3" lift kit sets up your 1984-2001 Jeep Cherokee XJ right with clearance for up to 31" tires. Up front you get Glide-Ride coil springs, extended sway bar links, and a transfer case drop to keep driveline angles correct. The rear uses a thin add-a-leaf and a 5/8" lift block to level the Jeep, matched to FOX 2.0 Performance shocks.

Features

• ProRide coil springs offer improved ride quality and more articulation
• Transfer case drop maintains proper driveline angles
• Easy, 100 percent Bolt-on installation
• NX2 gas shocks for improved damping
• Allows clearance for 31 inchTires
• Add-a-leaf helps freshen up old worn-out factory leaf springs.
• Blocks are made from cast iron for max strength.
• Includes new center pins.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2.5 inch

Notes

• Verify the make/model of rear axle prior to ordering.
• Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.
• Transfer case lowering kit is not required for 2WD models.

Includes

• BDS014316, Jeep XJ 3in Kit w/Chrysler (UPC 658848614042)
• BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in (UPC 658848616749)
• BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid (UPC 711745604957)
• FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
• FOX98224980, Fox 2.0 Shock 23.65 x 15.05 x 2-BP18/EB1
