1984-2001 Cherokee 4.5" Lift Kit with FOX 2.0 Performance Shocks (BDS435FS)

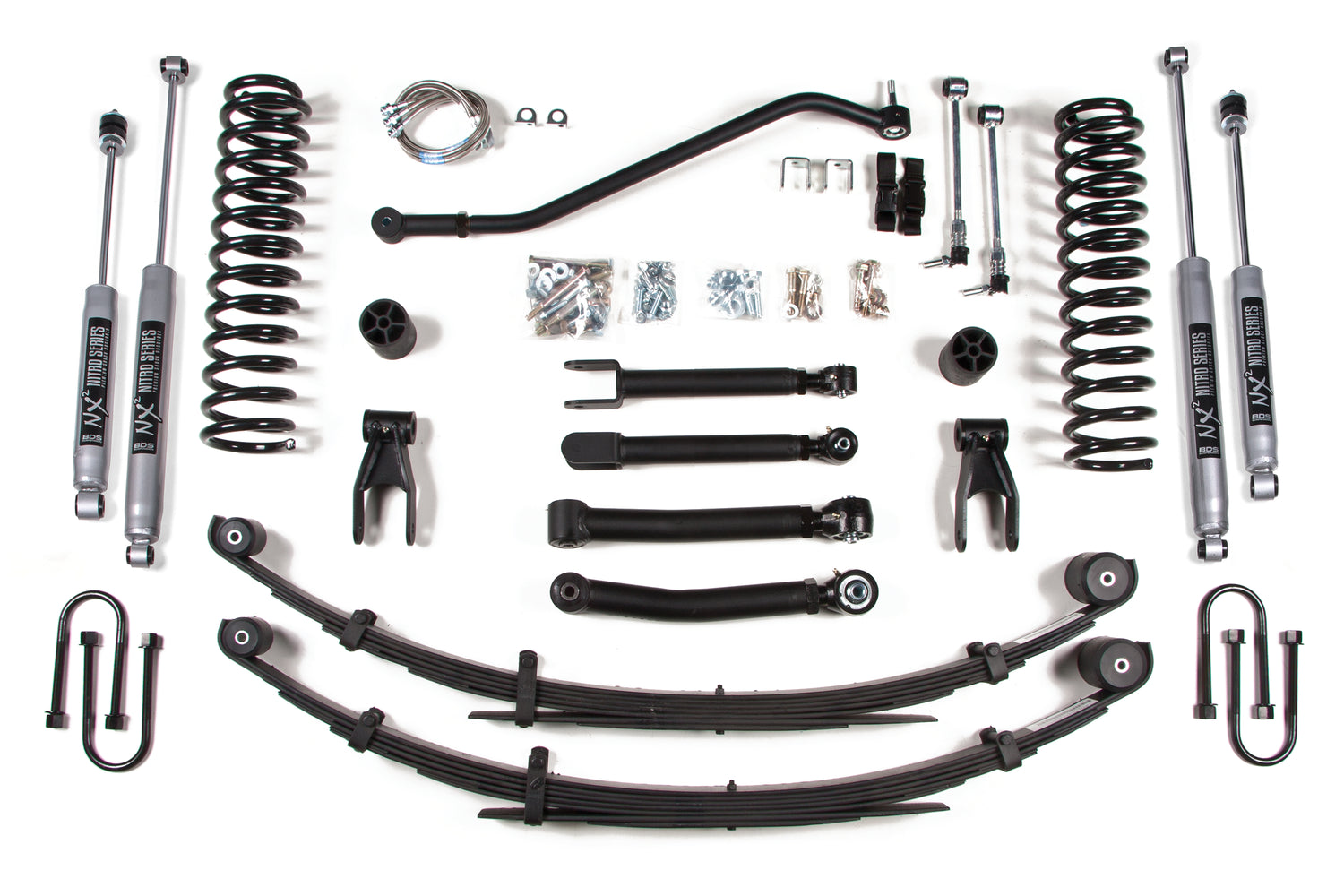

This BDS 4.5" suspension lift kit steps up the 1984-2001 Jeep Cherokee XJ with clearance for up to 32" tires. Up front it includes BDS Pro-Ride coil springs, a heavy duty adjustable front track bar to recenter the axle, HD adjustable upper and lower control arms, bump stop extensions, stainless braided brake lines, and sway bar quick disconnects for added flex with quiet on-road manners. The rear uses triple-stage progressive Glide-Ride leaf springs for maximum travel, stainless braided brake line, and extended shackles. Choose NX2 Nitro or FOX 2.0 Performance shocks.

Features

• 100% bolt-on installation, clearance for up to 32" tires
• Pro-Ride coil springs for improved ride quality and more articulation
• HD adjustable control arms to properly control front and rear axle positions
• Glide-Ride leaf springs provide full lift height and increased capacity
• Sway bar quick disconnects and extended rear shackles for improved off-road flex
• Front HD adjustable track bar to correctly position the axle and control lateral movement
• Choice of NX2 Nitro gas or FOX 2.0 Performance Internal Floating Piston shocks
• FOX 2.0: 2-inch Impact extruded aluminum body, Internal Floating Piston monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4 inch

Notes

• Measure the rear u-bolts before ordering. The XJ came with two different rear axles (Chrysler 8.25 or Dana 35); Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987-90 models came with a Dana 44, measure and call BDS for proper u-bolt fitment.
• A CV-style rear driveshaft (not included) and slip yoke eliminator kit are required.

Includes

• BDS004209, 84-01 Jeep XJ 3in Rear Spring (UPC 658848611461)
• BDS014444, 84-01 Jeep XJ 4.5in Box Kit (UPC 658848614141)
• BDS034452, Jeep XJ 4.5in Front Coil Kit (UPC 658848616916)
• FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
• FOX98224974, Fox 2.0 Shock 26.35 x 16.75 x 2-BP18/EB1
• JKS2001, Quicker Disconnect (UPC 814897010017)
• UBT4005, 1/2 x 2-3/4 x 6-1/2 Round U-bolt (UPC 711745613508)
