1984-2001 Cherokee 6.5" Long Arm Conversion Kit with FOX 2.0 Performance Shocks (BDS1433FS)

Maximize the capability of your 1984-2001 Jeep Cherokee XJ with this BDS 6.5" lift kit with long arm conversion, with clearance for up to 33" tires. By maximizing control arm length BDS minimizes caster change for optimal handling. Up front are a massive 1/4" steel belly pan with new pivot mounts, heavy duty lower flex arms and adjustable upper flex arms, 4.5" Pro-Ride coil springs, bump stop extensions, braided stainless brake lines, ultimate sway bar disconnects, a front adjustable track bar and a drop pitman arm. The rear uses Glide-Ride leaf springs, stainless braided brake lines and extended shackles, finished with your choice of NX2 Nitro or FOX 2.0 IFP performance series shocks.

Features

• Redesigned 4-link long arm to improve articulation and control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Massive belly pan that incorporates the link mounts and is built to smash rocks
• Glideride leaf springs to provide full lift height and increased capacity
• Sway bar quick disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Easy, 100 percent bolt-on installation
• Allows clearance for 33" tires

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6.5 inch
• Rear Lift Height: 6 inch

Notes

• Measure the rear u-bolts before ordering. Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987-90 models came with a Dana 44; measure and call BDS for proper u-bolt fitment.
• CV style rear driveshaft (not included) and slip yoke eliminator kit is required.
• System only works with 4.0L motor and automatic transmission.
• Some welding is required.
• '96 and earlier models may require a longer emergency brake cable.

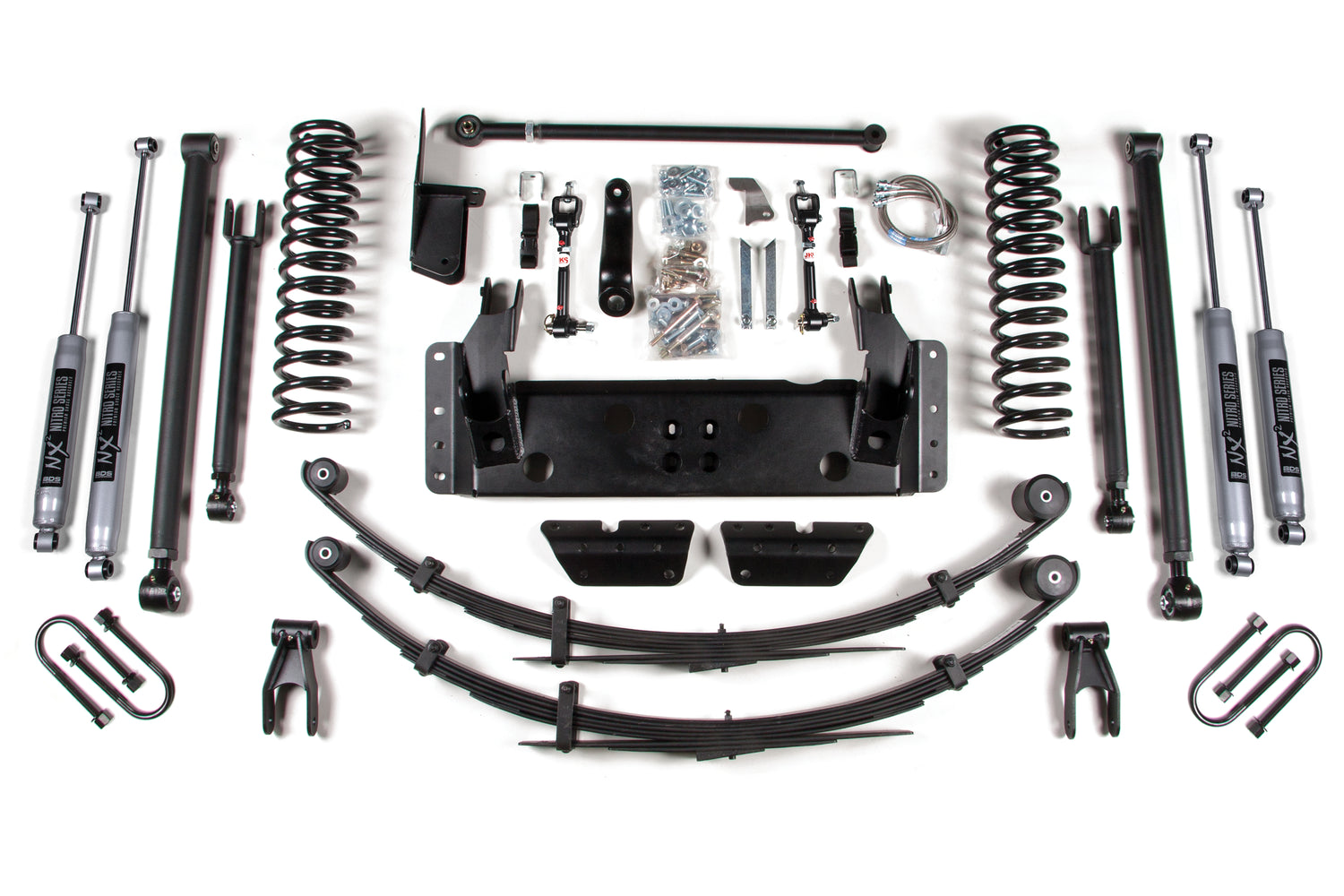

Includes

• BDS004509, 84-01 Jeep XJ 5in Rear Spring (UPC 658848611584)
• BDS014641, Jeep XJ 6.5 inch Long Arm Box Kit (UPC 658848614257)
• BDS014654, Jeep XJ 6.5in Long Arm Xmember Box Kit (UPC 658848614264)
• BDS014655, XJ Long Arm Box Kit (UPC 658848614271)
• BDS014659, Jeep XJ 6.5in Rear Box Kit w/Chrysler (UPC 658848614301)
• BDS034652, Jeep XJ 6.5in Front Coil Kit (UPC 658848616978)
• BDS174002, 97-01 Jeep XJ Frt Bumpstops (small dia) (UPC 711745608153)
• FOX98224920, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
• FOX98224961, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• JKS2001, Quicker Disconnect (UPC 814897010017)
