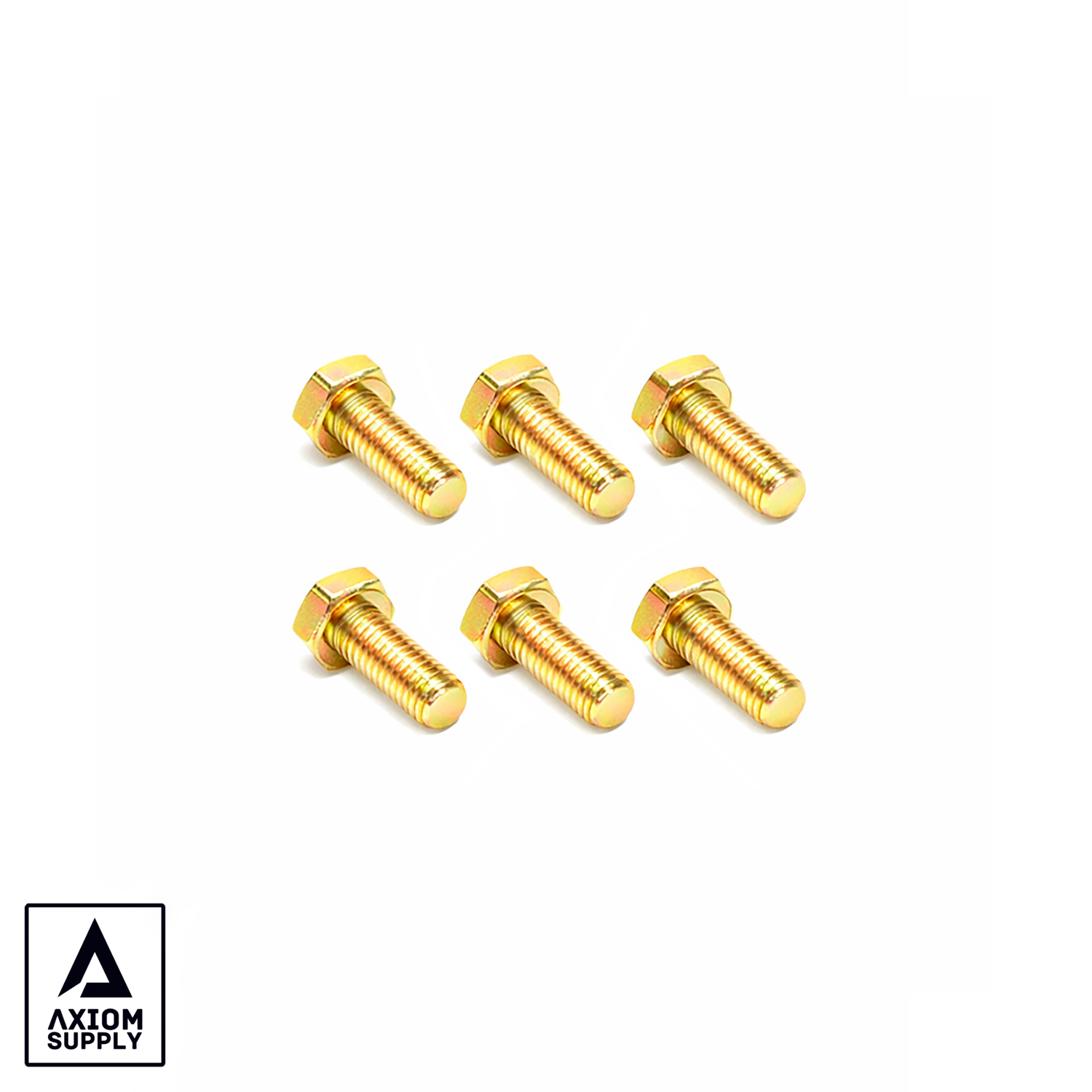

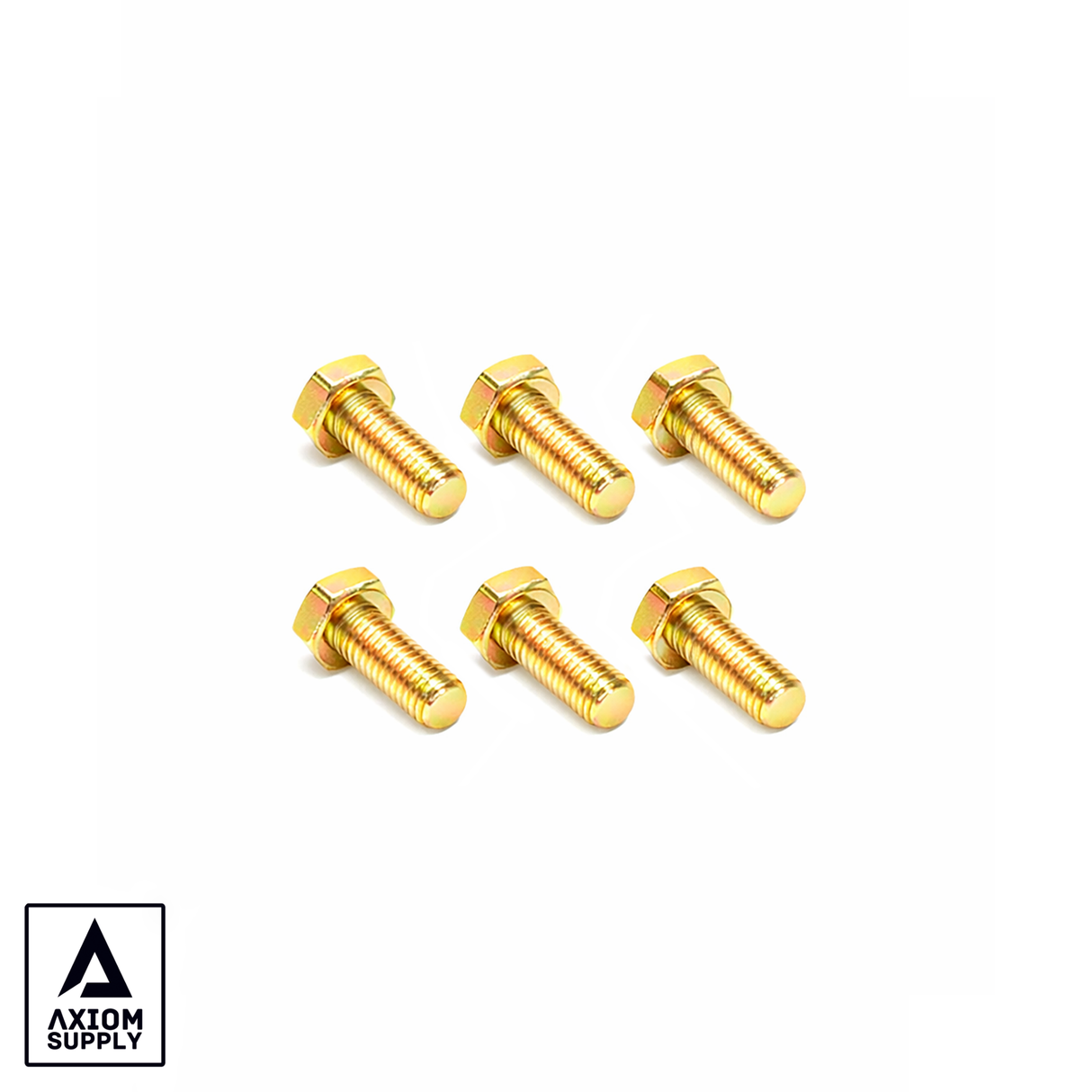

1985-2026 GM 1500 & HD CV Axle Flange Bolt Set (AXGMCV6)

Description

The Axiom Supply CV Axle Flange Bolt is a critical fastener designed to secure your CV axle to the differential flange under extreme load and constant drivetrain stress. These bolts are torque-to-spec hardware, tightened to 58 lb.ft, and are not components you want to reuse once removed. Factory bolts stretch, fatigue, and corrode over time-especially on trucks and UTVs that see hard use. Installing a new axle with old hardware is a gamble. That's why Axiom Supply always recommends replacing flange bolts during any CV axle service. Fresh hardware ensures proper clamping force, torque retention, and long-term reliability. Each bolt features a zinc-plated finish to combat corrosion and oxidation, extending service life in harsh environments like mud, snow, road salt, and off-road conditions. This is the right way to finish a CV axle install-no shortcuts.

Features

• Grade 10.9 Strength Rating:
• Designed to handle high torque and constant rotational stress.
• Zinc-Plated Finish:
• Provides corrosion resistance and long-term durability.
• Factory-Length Design:
• Ensures proper engagement and fitment with OEM CV axle flanges.
• High Torque Capability:
• Engineered for
• 58 lb.ft: installation torque.

Includes

• (6) Grade 10.9 Flange Bolts (1 Axle Side)

Notes

• Torque specification: 58 lb.ft.
• Thread locker is recommended during installation.
• Replacement bolts use a 17mm head and may cause clearance issues with certain lift kits.
• Not compatible with CV spacer kits.
