1986-1992 Comanche 3" Lift Kit with FOX 2.0 Performance Shocks (BDS440FS)

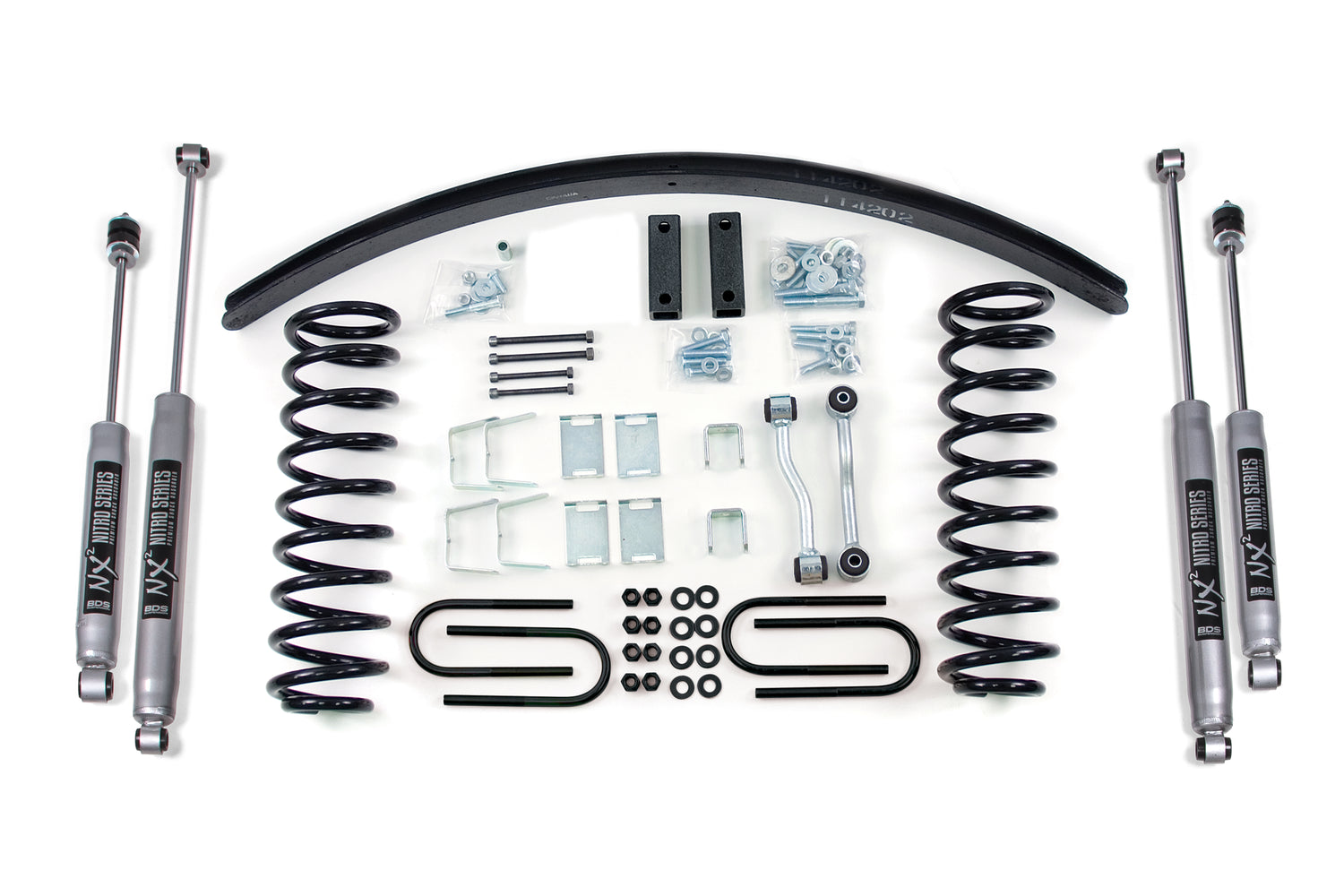

This BDS 3" lift kit improves the style and handling of your 1986-1992 Jeep Comanche MJ with clearance for up to 31" tires. Up front it includes Pro-Ride (Glide-Ride) coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles. The rear uses a long thin add-a-leaf to add height without a harsh ride plus a 5/8" lift block to level out the Jeep. Choose NX2 Nitro or FOX 2.0 Performance shocks.

Features

• 100% bolt-on installation, clearance for up to 31" tires
• Pro-Ride coil springs for improved ride quality and more articulation
• Transfer case drop maintains proper driveline angles
• Choice of NX2 Nitro gas or FOX 2.0 Performance shocks
• FOX 2.0: 2-inch Impact extruded aluminum body, Internal Floating Piston monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2.5 inch

Notes

• The Comanche came with two different rear axles (Chrysler 8.25 or Dana 35). Measure the diameter of the axle or the ID of your rear u-bolts to order the correct new u-bolts.
• The transfer case drop kit is not necessary for 2WD applications.

Includes

• BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in (UPC 658848616749)
• BDS114202, Jeep YJ/XJ Front/Rear Long Add-a-leaf (UPC 658848618750)
• BDS124006, Jeep XJ/MJ Transfer Case Drop Kit 1 inch (UPC 711745604544)
• BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid (UPC 711745604957)
• FOX98224920, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
• FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
• UBT4012, 1/2 x 3 x 6-3/4 Round U-bolt (UPC 711745613454)
