1988-1991 Suburban / Blazer 4" Lift Kit with FOX 2.0 Performance Shocks (BDS137FS)

Designed to improve stance, performance, and capability. BDS Suspension has designed this 4-inch lift kit for your 1988-1991 Chevy K5 Blazer and GMC K5 Jimmy. This kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Features

• Front Lift Method: Leaf Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch
• The 1/2 ton commonly came with a factory 52 inch eye to eye rear leaf spring. However, some were produced with a 56 inch rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
• If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
• Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options.
• #001408 come with OE style rubber bushings installed.
• Exhaust modification may be required to clear front driveshaft.
• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Includes two BDS001401, 73-91 GM 4 Inch Front Spring, UPC Code 658848611164
• Includes one BDS011003, 88-91 GM Blazer/Suburban Front Box Kit, UPC Code 658848611645
• Includes one BDS011409, GM 1/2 ton 4 Inch Rear Box Kit, UPC Code 658848611812
• Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
• Includes two FOX98224620, Fox 2.0 Shock 23.65 x 15.05 x 2- EB1/EB1
• Includes two FOX98224639, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Details

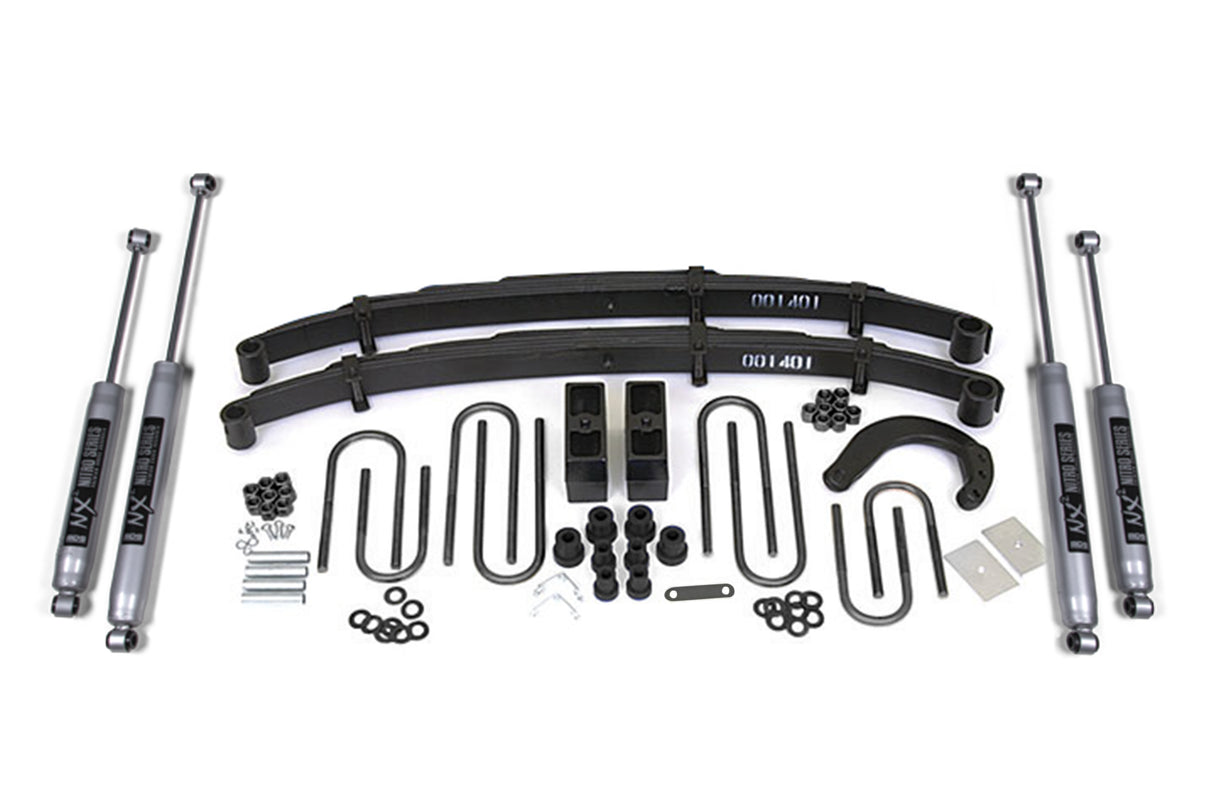

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Rear Lift Option 4 Inch Block Kit

FOX 2.0 Performance Series
