1994-1998 Ram HD Billet High Clearance Extended Control Arms w/ 3" Lift (CS-DBCA-94-14)

Description

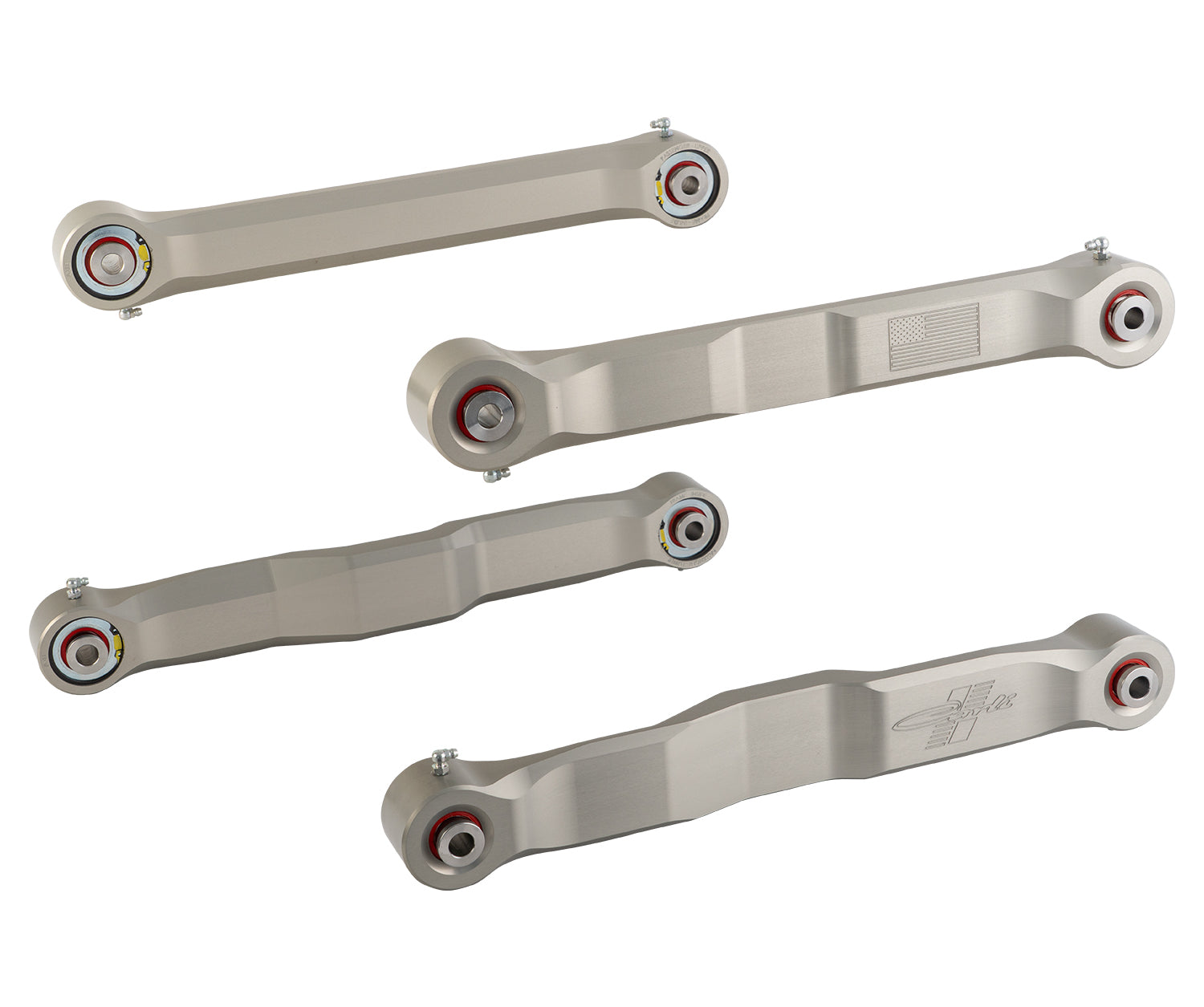

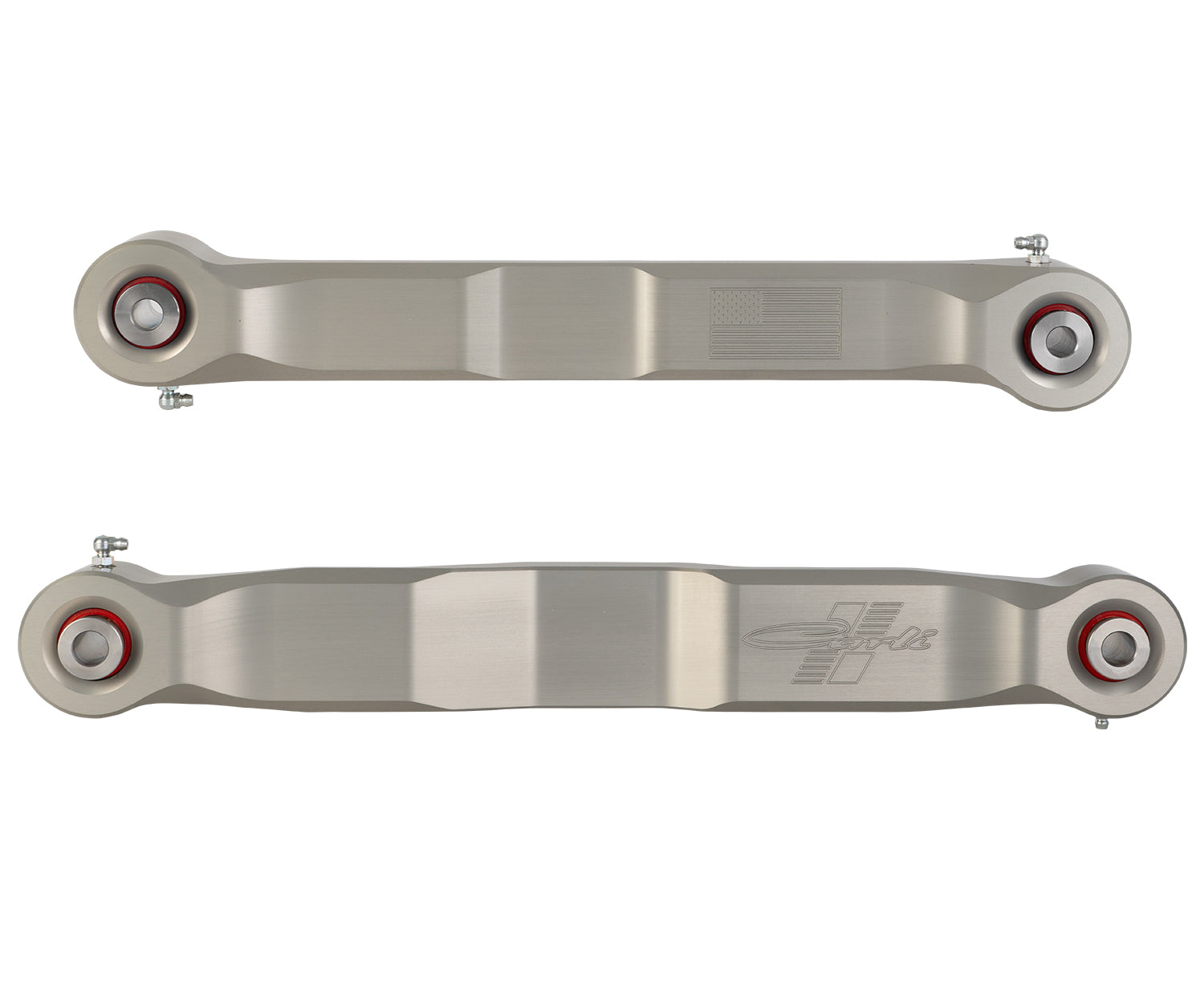

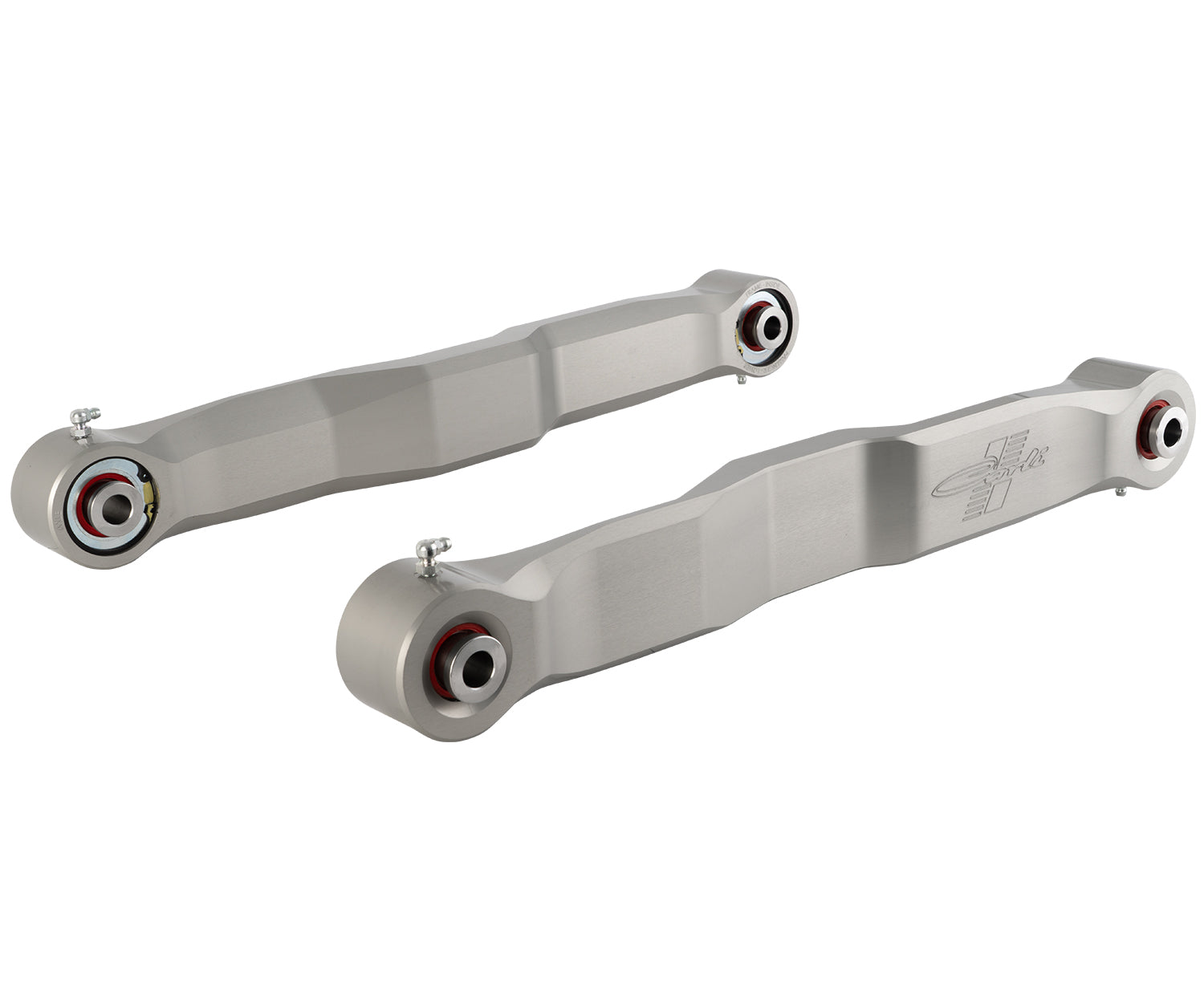

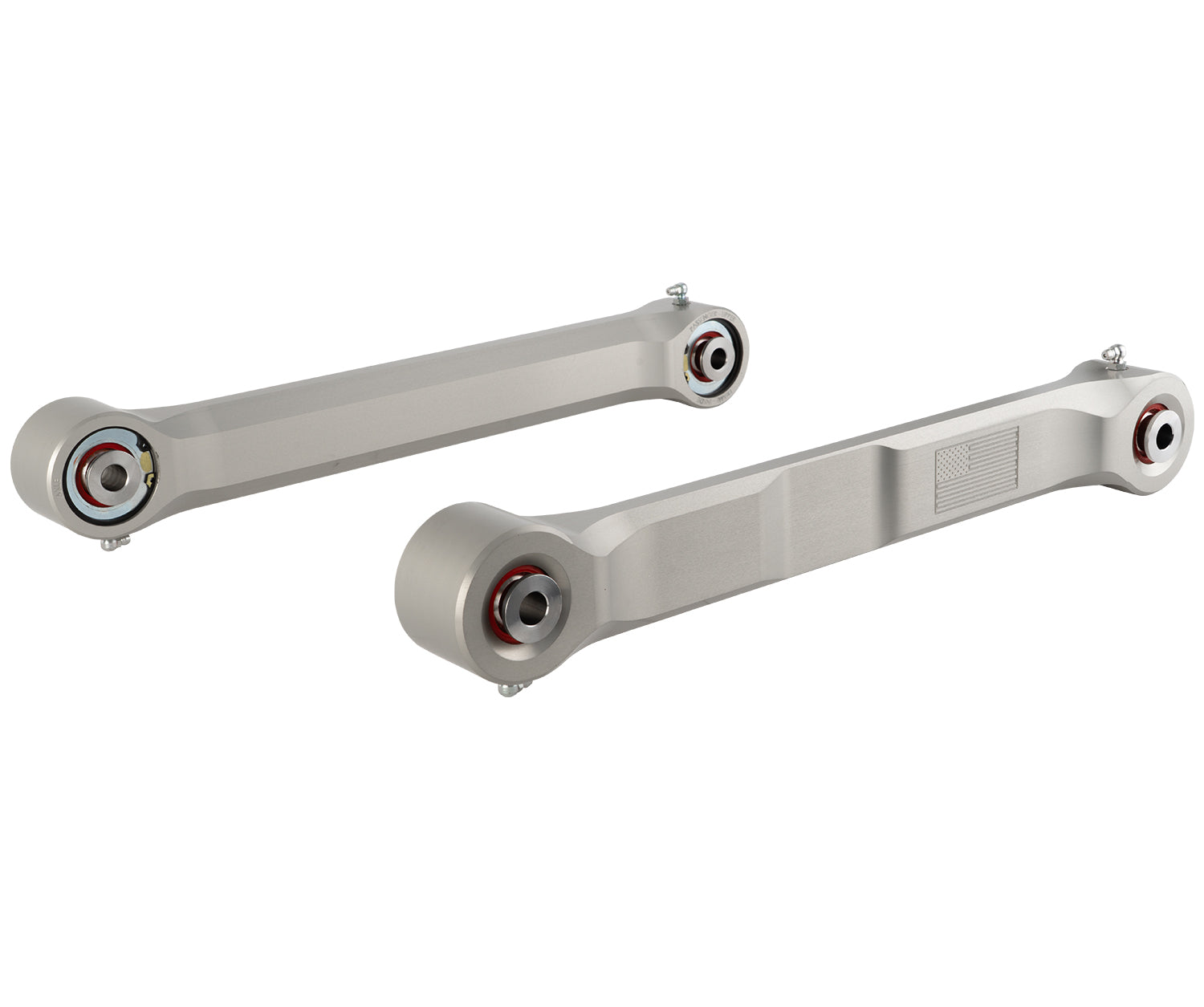

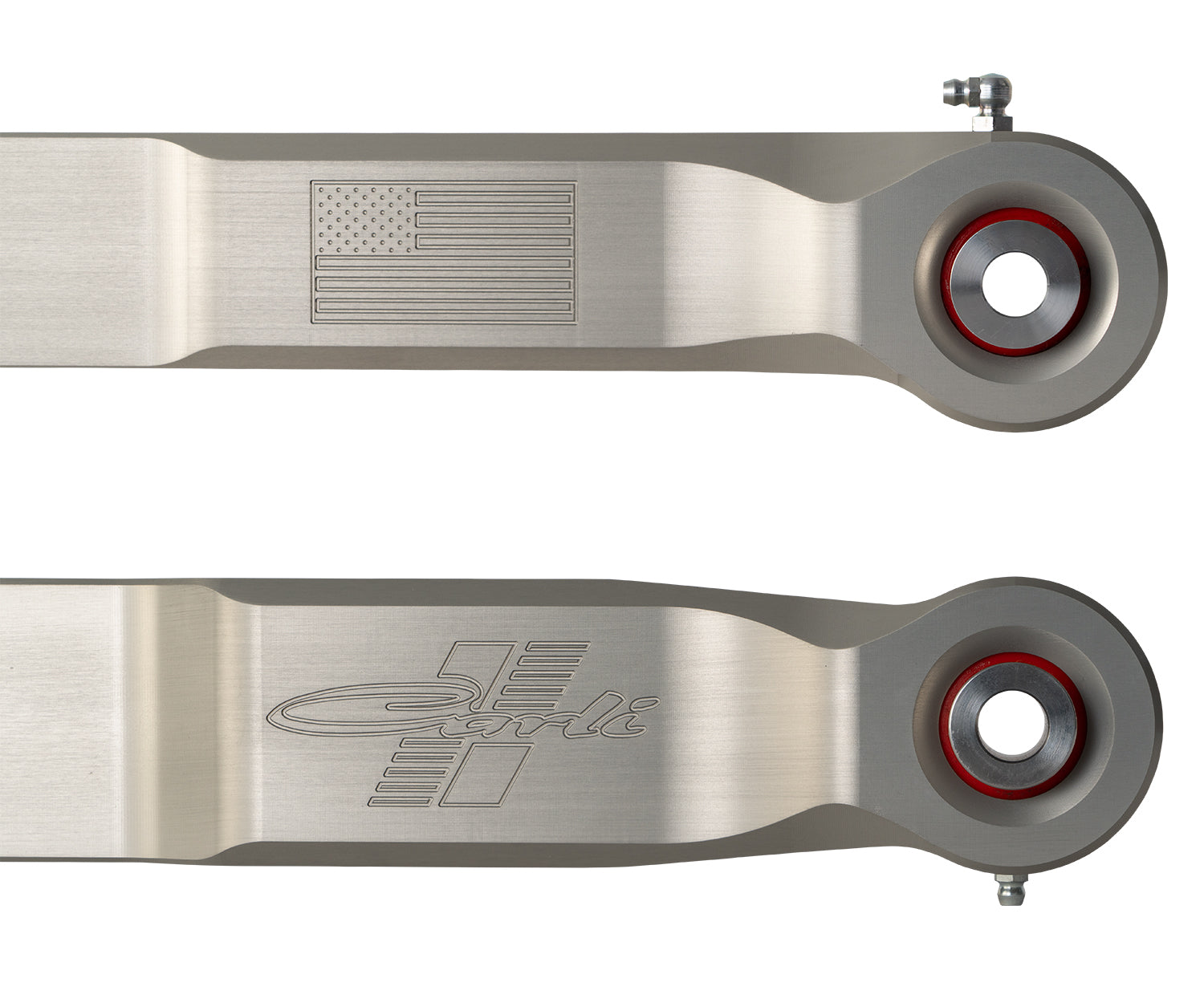

Lifting the front of your 1994-1998 Ram 2500/3500 pushes the front axle away from the frame, throwing geometry off and shifting the axle off center. Carli's Billet High Clearance Extended Control Arms re-center the axle on 3" suspension systems and provide massive 37" tire clearance, machined from solid 6061 billet aluminum with serviceable stainless spherical joints that handle the lateral movement these straight-axle trucks see.

Part Number: CS-DBCA-94-14

Features

• Includes 4 arms (2 upper, 2 lower)
• Re-centers front axle on 3" suspension systems
• 37" tire fitment (9" wide wheel, 5.75" backspacing)
• 6061 billet aluminum construction with clear anodized finish
• 12mm upper ball center, 14mm lower ball center
• Serviceable, vibration-damping joints with 17-4 stainless ball centers
• Greasable zerk fittings for easy maintenance

Notes

Verify your bolt size before ordering. CS-DBCA-94-14 fits 1994-1998 trucks (14mm lower ball center); CS-DBCA-94-16 fits 1998.5-2002 (16mm lower ball center). Crossover has been seen between model years; confirm before purchase.
