1994-1999 Ram HD 4.5" Long Arm Conversion Kit with FOX 2.0 Performance Shocks (BDS214FS)

BDS 4.5" lift with long arm conversion for the 1994-1999 Dodge Ram 2500 and 3500 4WD with clearance for up to 35" tires. The long lower control arms reduce caster change through wheel travel for a more controlled steering feel, and the 4-Link long arm system retains the factory triangulation of the arms for added stability. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, all four control arms plus mounting bracket, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear it uses heavy duty cast steel blocks and add-a-leaf combo, longer u-bolts, and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Tubular long arms reduce caster change and create a more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX performance series IFP gas shocks
• Steel rear blocks provide correct pinion angles
• 2-inch impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Notes

• Trimming may be required.
• Tested tire/wheel fitment: 35 x 12.5 with 16 x 8 and 4 in. backspace.
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs before ordering.

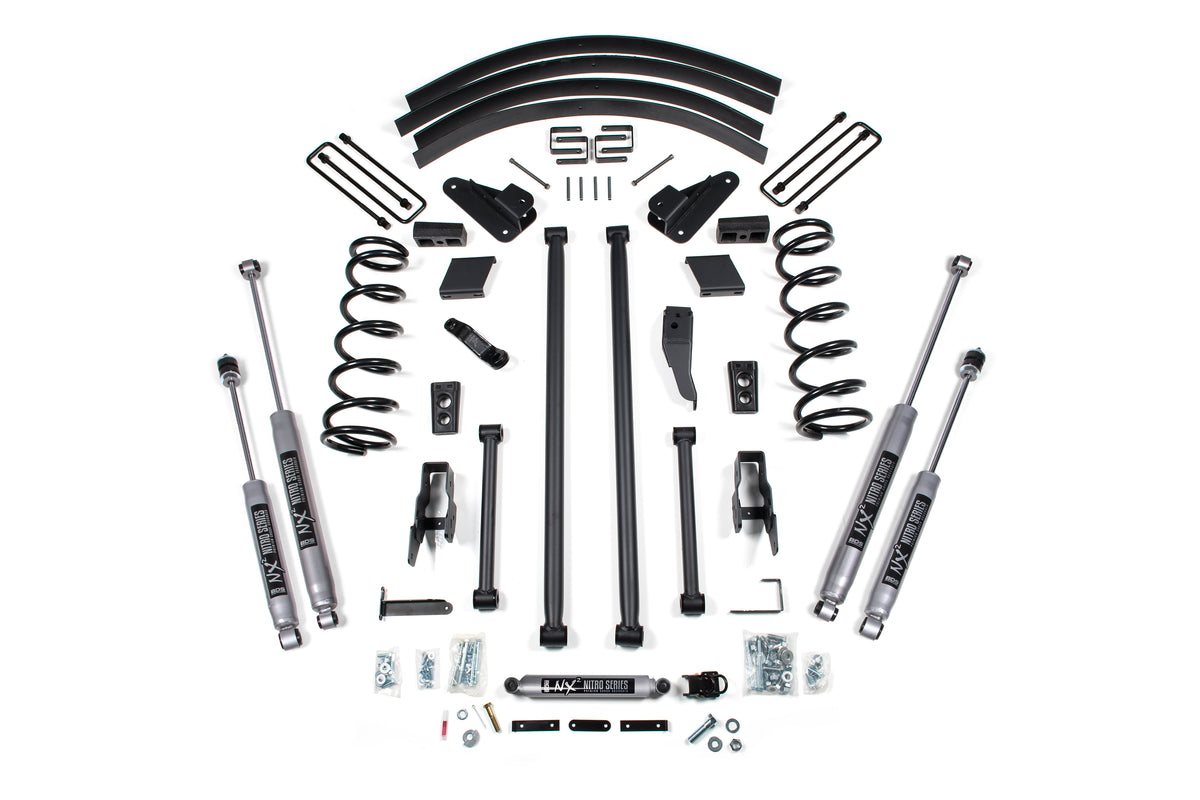

Includes

• BDS012457, 94-01 Dodge 2500 Rear Kit w/Top Mtd (UPC 658848612468)
• BDS012511, 94-01 Dodge Ram Long Arm Kit (1of2) (UPC 658848612550)
• BDS012513, 94-99 Dodge Ram Long Arm Kit (2of2) (UPC 658848612574)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85417, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609129)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
