1994-1999 Ram HD 4.5" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS213H)

Built to outperform, this BDS 4.5" long arm conversion lift kit for your 1994-1999 Dodge RAM 2500 and 3500 4WD truck clears up to 35" tires and maximizes performance on and off road. The 4-link long lower control arms reduce caster change through wheel travel for a more controlled feel while retaining factory triangulation for stability. Up front it includes diesel-specific progressive-rate Pro-Ride coil springs, all four control arms plus mounting bracket, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. The rear uses heavy duty cast steel blocks and add-a-leaf combo, longer u-bolts, and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Tubular long arms reduce caster change and create a more controlled feel on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX Performance Series internal floating piston gas shocks
• NX2 shocks: nitrogen-charged, twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4.5 inch

Notes

• For models built after February 9, 1994 due to track bar stud size.
• May require exhaust modification.
• A dual stabilizer may be substituted for the single stabilizer that comes in the kit.
• These vehicles were produced with and without a top-mounted overload spring. Identify which your vehicle has before ordering.

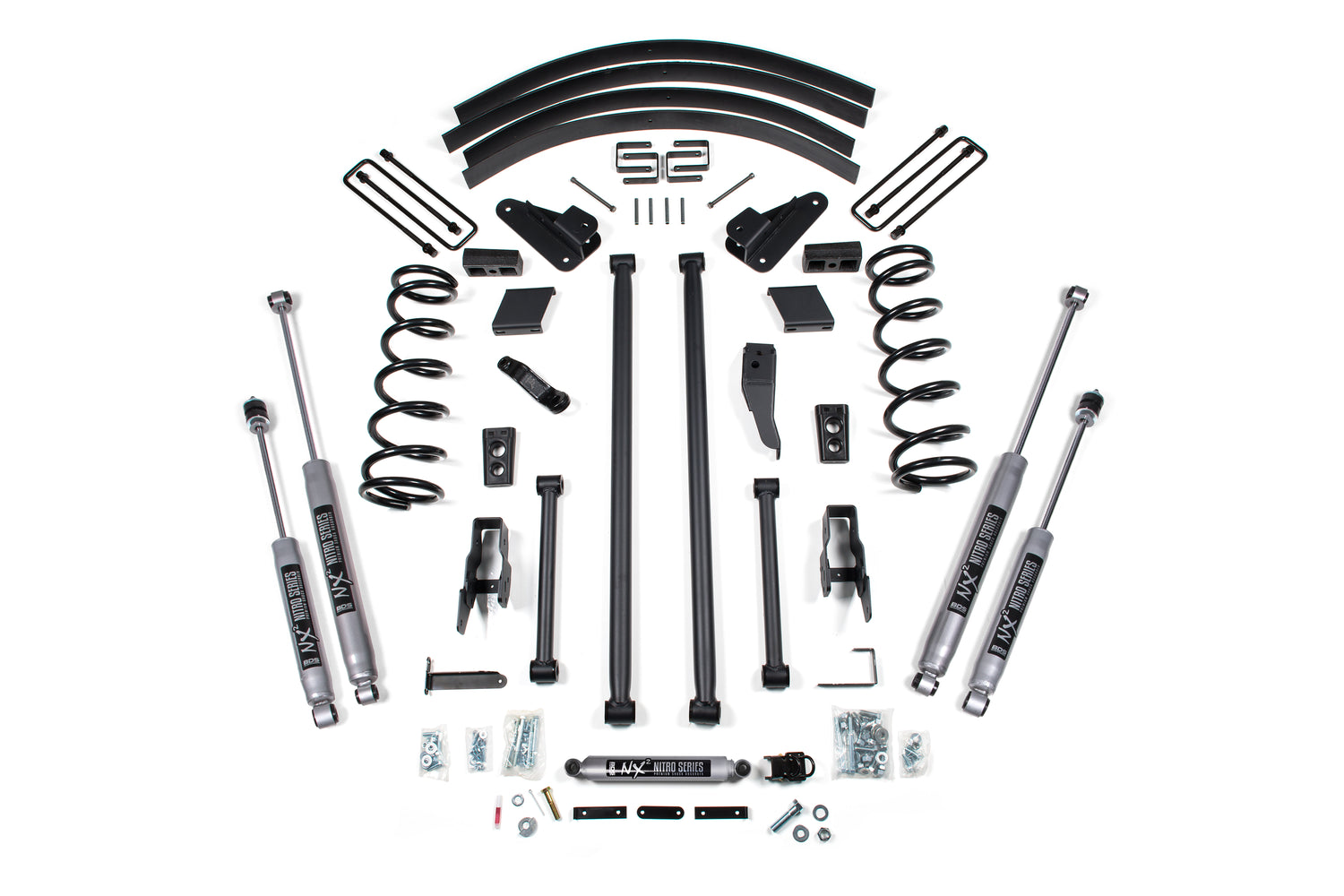

Includes

• BDS012456, 94-01 Dodge 2500 Rear Kit w/o Top Mtd (UPC 658848612451)
• BDS012511, 94-01 Dodge Ram Long Arm Kit (1of2) (UPC 658848612550)
• BDS012513, 94-99 Dodge Ram Long Arm Kit (2of2) (UPC 658848612574)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85417, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609129)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
