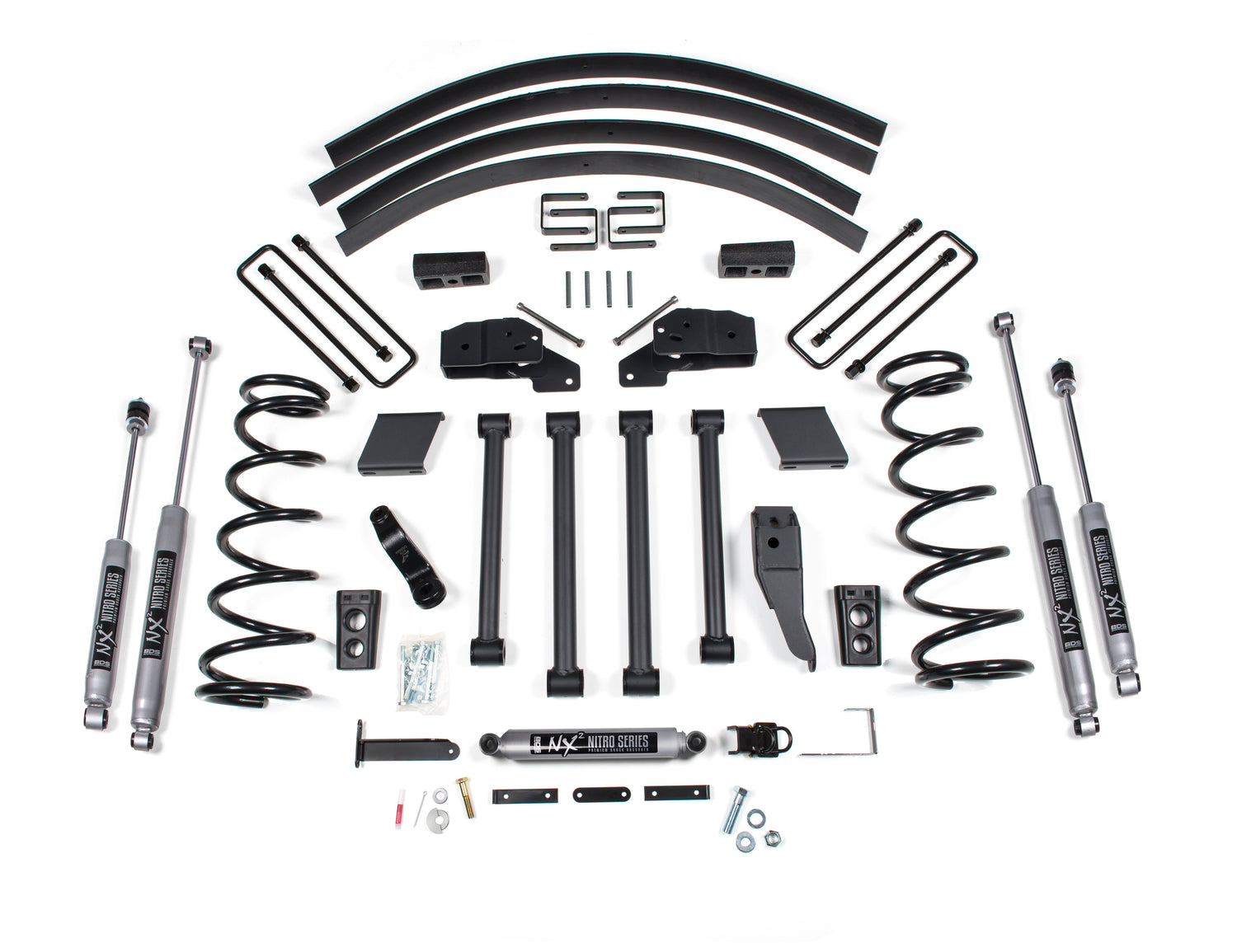

1994-1999 Ram HD 4.5" Lift Kit with FOX 2.0 Performance Shocks (BDS215FS)

Improve the ride and style of your 1994-1999 Dodge RAM 2500 and 3500 4WD truck with this BDS 4.5" lift kit, with clearance for up to 35" tires. New longer lower control arms rotate the axle for proper alignment, paired with a relocation bracket that flattens the upper control arm angle to maintain factory handling. Up front it includes progressive-rate Pro-Ride coil springs, all four control arms plus relocation bracket, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. The rear uses a heavy duty cast steel block and add-a-leaf combo, longer u-bolts, and matching FOX 2.0 Performance shocks.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX Performance Series internal floating piston gas shocks
• FOX 2.0 shocks: 2-inch Impact extruded aluminum body, internal floating piston monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4.5 inch

Notes

• For models built after February 9, 1994 due to track bar stud size.
• May require exhaust modification.
• A dual stabilizer may be substituted for the single stabilizer that comes in the kit.
• These vehicles were produced with and without a top-mounted overload spring. Identify which your vehicle has before ordering.

Includes

• BDS002458, Dodge Ram 3/4 ton 4.5in Rear Spring (UPC 658848611270)
• BDS012503, 1994-1999 Dodge 1500/2500 5in Front Box Kit (UPC 658848612512)
• BDS012508, 94-02 Dodge 2500 Rear Bx Kit w/BDS Rear (UPC 658848612543)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85417, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609129)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
