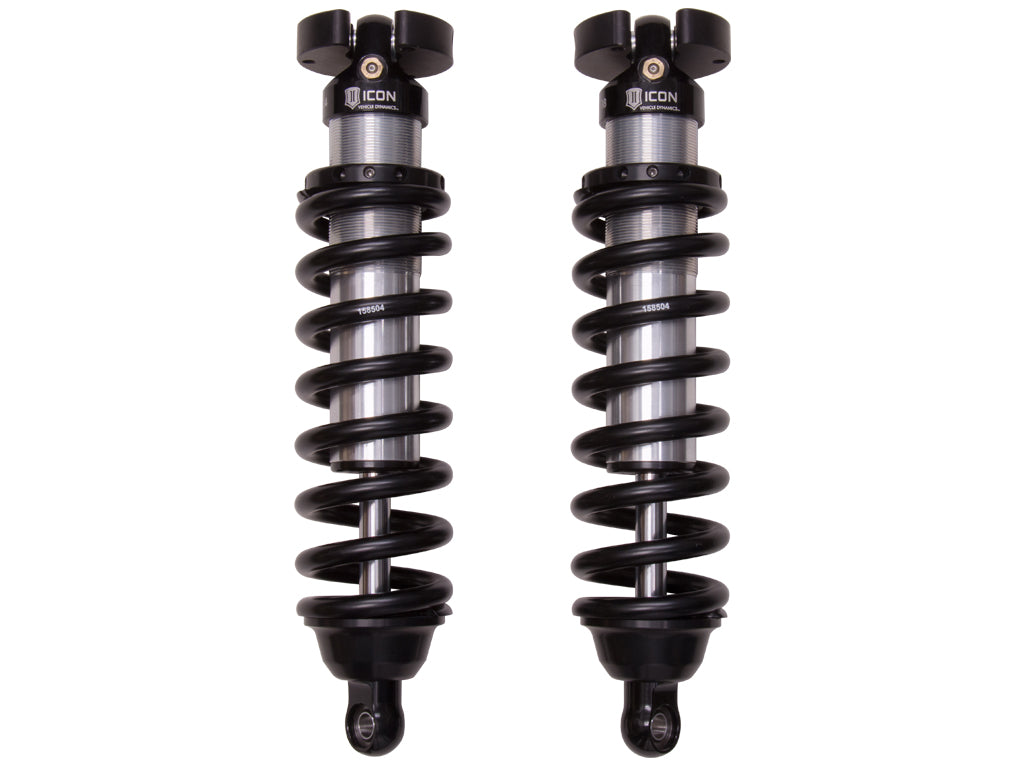

1995-2004 Tacoma 2.5 IR Front Coilover Kit (ICO58615-700)

Drop in serious suspension performance on your 1995-2004 Tacoma with ICON 2.5 Series coilovers. Adjustable from 0-3" of lift over stock.

Features

• Increased wheel travel and improved ride quality over stock
• Extended Travel length requires installation of aftermarket front upper control arms
• Vehicle specific tuned for superior shock damping and control
• Height-adjustable coilovers offer 0-3" of front lift height adjustment
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Tires: Recommended Aftermarket Tires (Tacoma): 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Tires: Recommended Aftermarket Tires (4Runner): 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• These systems are to be used with aftermarket upper control arms only
• Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
• Will not fit 2WD Tacoma with 5 wheel lug studs
• 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
