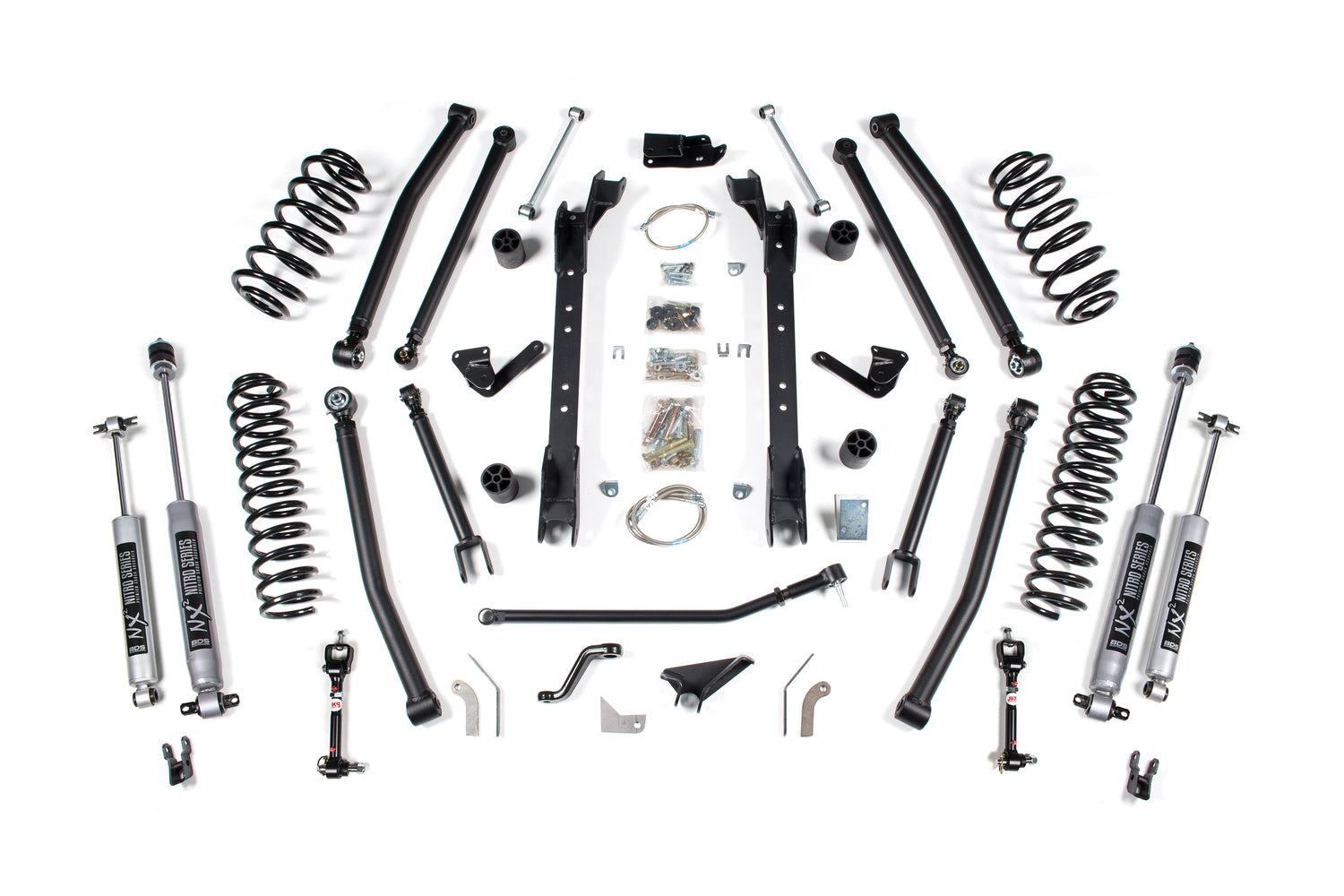

1997-2006 Wrangler 4.5" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS477H)

Maximize the capability of your 1997-2006 Jeep Wrangler TJ with this BDS Suspension 4.5" long arm conversion lift kit, with clearance for up to 33" tires. The system maximizes upper and lower control arm length to minimize caster change for better handling, using 1/4" steel frame brackets, formed long arms and full-coil-bind 4.5" Pro-Ride coil springs front and rear. It also includes adjustable upper flex arms, bump stop extensions, braided stainless brake lines, sway bar quick disconnects, front and rear adjustable track bars and a drop pitman arm.

Finish the kit with your choice of NX2 Nitro Series gas shocks or FOX 2.0 performance shocks for improved damper performance.

Features

• Redesigned 4-link long arm to improve articulation and control throughout wheel travel
• Pro-Ride coil springs offer improved ride quality and more articulation
• Sway bar quick disconnects and extended rear link for improved off-road flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Choice of NX2 gas or FOX 2.0 performance series shocks
• Allows clearance for 33 inch tires
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Spring
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4.5 inch

Notes

• A slip yoke eliminator kit and CV-style rear driveshaft are required.
• May require exhaust modification.
• Some welding required.
• Long Arm systems also fit short wheelbase Rubicon models (not Unlimited models).

Includes

• BDS014441, Long Arm Box Kit (2of3) (UPC 658848614134)
• BDS014448, 97-06 Jeep TJ 4.5in LA Box Kit (UPC 658848614165)
• BDS014660, 97-06 Jeep TJ Long Arm Box (1of3) (UPC 658848614318)
• BDS034451, 1997-2004 Jeep Wrangler (TJ) 4.5in Front Coil (UPC 658848616909)
• BDS034459, 1997-2004 Jeep Wrangler (TJ) 4.5in Rear Coil (UPC 658848616930)
• BDS85967, Shock- 26.15 x 15.55 x 2-3/8 - S1/BP7 (UPC 711745610163)
• BDS85976, Shock- 23.10 x 14.25 x 2-3/8 - BP18/EB1 (UPC 711745610248)
