1999-2024 Superduty 6" Lift Kit with NX2 Nitro Shocks (BDS311H)

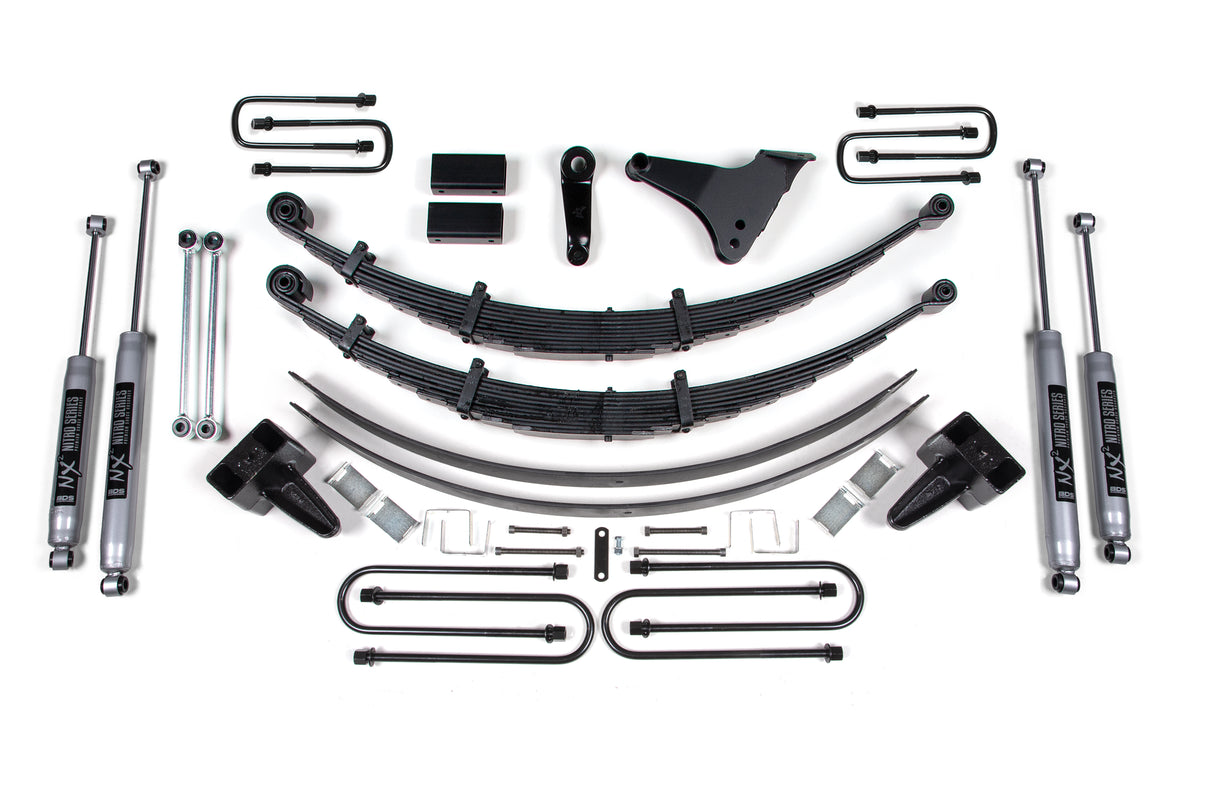

This BDS 6" lift kit sets up your 1999-2004 Ford F250 and F350 Super Duty right with clearance for up to 36" tires. Up front it runs Glide-Ride leaf springs, a forged drop pitman arm and track bar bracket for steering correction, sway bar links, and bump stop brackets. The rear uses a high-strength lift block and longer u-bolts, matched to NX2 Nitro shocks.

Features

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method : Leaf Spring
• Rear Lift Method : Block & Add-A-Leaf
• Shocks Included : Yes
• Front Lift Height : 6 inch
• Rear Lift Height : 5 inch

Notes

• Trimming may be required for 36 x 12.5 with 16 x 10 and 4 in. Backspace.
• Square U Bolt Prior to 2-28-99

Includes

• BDS003602, Ford F250/350 6 Inch Front Spring (UPC 658848611362)
• BDS003609, Ford F250/350 6 Inch Rear Spring (UPC 658848611386)
• BDS013004, Pre 2/99 Ford F250/350 6&8in Front Bx Kt (UPC 658848612949)
• BDS013009, Ford F250/350 6&8in Rear Box Kit (UPC 658848612987)
• BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609471)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
