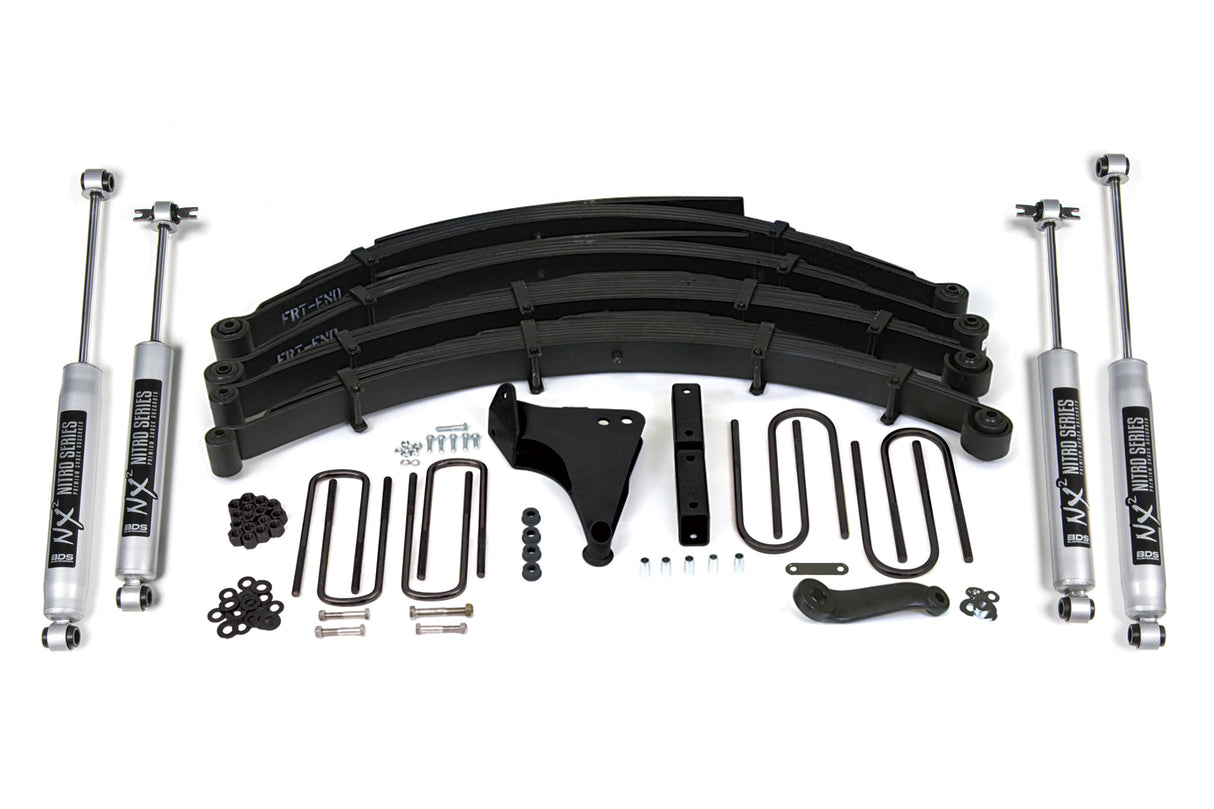

1999-2004 Superduty 8" Lift Kit with FOX 2.0 Performance Shocks (BDS324FS)

This BDS 8" lift kit raises your 1999-2004 Ford F250/F350 Super Duty with clearance for up to 38" tires. Up front it runs BDS Glide-Ride leaf springs, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar links, and bump stop brackets. The rear uses replacement Glide-Ride full leaf spring packs and u-bolts. The exclusive triple-stage Glide-Ride progressive-rate leaf design provides a smooth ride under any load, reduces axle wrap, and adds flexibility through the suspension cycle. Choose NX2 Nitro or FOX 2.0 Performance shocks front and rear.

Features

• 100% bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Cast steel blocks provide a level stance front to rear
• Choice of NX2 Nitro shocks with vehicle-specific valving or FOX 2.0 Performance Series shocks
• FOX 2.0: 2-inch Impact extruded aluminum body, Internal Floating Piston monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

Notes

• These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square, or half way between round and square with a gentle radius around the OE cast u-bolt plate, before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Super Duty came from the factory with a 2", 3", or 4" rear block. To truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
• The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

Includes

• BDS003802, Ford F250/350 8in Front Spring (UPC 658848611416)
• BDS003809, Ford F250/350 8in Rear Spring (UPC 658848611423)
• BDS013006, 00-01 Ford F250/350 6&8in Front Box Kit (UPC 658848612963)
• BDS013009, Ford F250/350 6&8in Rear Box Kit (UPC 658848612987)
• FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
