1999-2004 Superduty 8" Lift Kit with FOX 2.0 Performance Shocks (BDS317FS)

BDS 8" lift for the 1999-2004 Ford F250 and F350 Super Duty truck with clearance for up to 38" tires. Up front it includes Glide-Ride leaf springs, a forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets, and precision tuned NX2 or FOX nitrogen charged shocks. The Glide-Ride leaf springs use an exclusive triple-stage, multi-leaf progressive rate design to reduce axle wrap and provide a smooth ride under any load. In the rear the base kit uses replacement Glide-Ride full leaf spring packs, u-bolts, and matching NX2 Nitro or FOX Performance shocks.

Features

• Easy, 100 percent bolt-on installation
• Glide-Ride leaf springs provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

Notes

• These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square, or half way between round and square with a gentle radius around the OE cast u-bolt plate, before ordering. Typically 1999-2000 are square and 2001-2004 are radiused, but not always.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Super Duty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. To truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
• The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

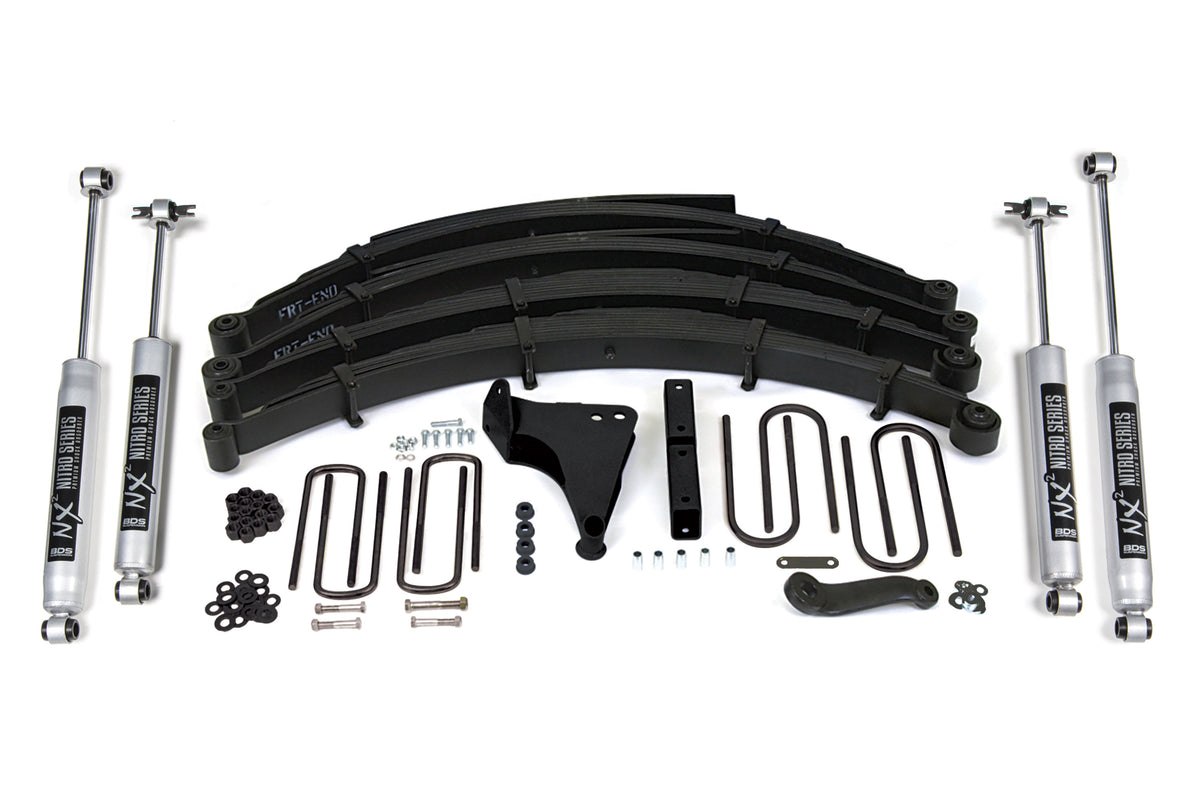

Includes

• BDS003802, Ford F250/350 8in Front Spring (UPC 658848611416)
• BDS003809, Ford F250/350 8in Rear Spring (UPC 658848611423)
• BDS013005, 3/99-00 Ford F250/350 6&8in Front Box Kt (UPC 658848612956)
• BDS013009, Ford F250/350 6&8in Rear Box Kit (UPC 658848612987)
• FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
