1999-2004 Superduty 2.0" Lift Kit with 2 Piece Driveshaft (69-2085)

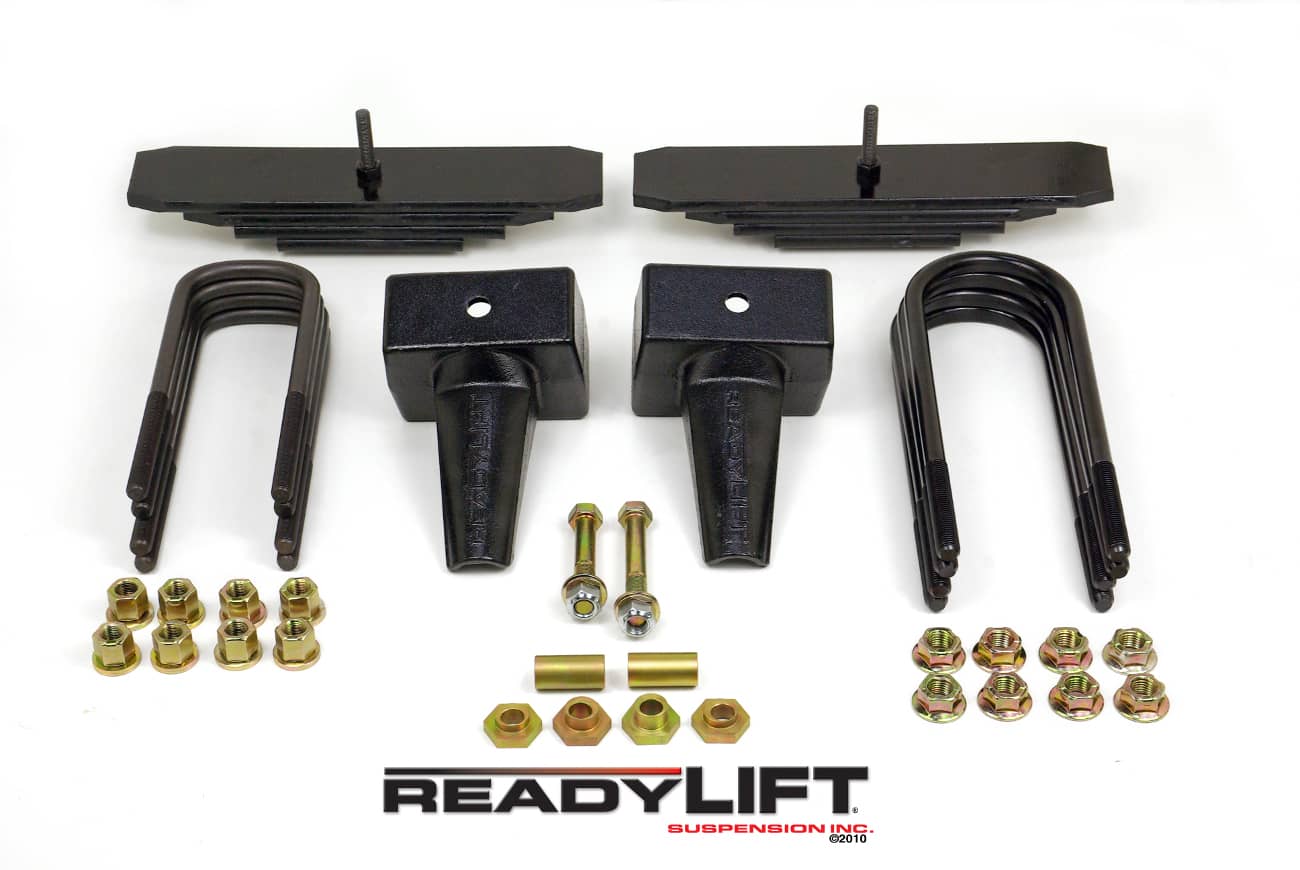

ReadyLIFT offers an expanded line of leveling products with the 2 inch Lift Kit, a Smart Suspension Technology (SST) Lift Kit developed for front leaf spring trucks. This system will compliment the leaf spring suspension with a "mini leaf pack" that, once installed under the factory leaf spring pack, raises the front of the truck a total of 2.0 inches to achieve a level stance. To lift the rear, time-tested original equipment manufacturer (OEM)-style 4.0 inch cast iron rear blocks with built-in pinion angle correction and bump stop landings replace the factory 2.0 inch block for an additional 2.0 inches of lift. This setup establishes a mild lift with a slight rake maintained for towing or hauling. The kit comes with new longer front and rear U-bolts and hardware as well as important pan-hard bar alignment bushings. This kit will allow for up to 35 inch tall tires and is a true bolt-on, no-cut solution.

Features

• Max Lift: 2.0 inches Front / 2.0 inches Rear
• Includes a "mini leaf pack" that installs under the factory front leaf spring pack to raise the front 2.0 inches
• Includes time-tested OEM-style 4.0 inch cast iron rear blocks with built-in pinion angle correction and bump stop landings
• Rear blocks replace the factory 2.0 inch block for an additional 2.0 inches of lift
• Includes a carrier bearing spacer for trucks with a two-piece drive shaft
• Includes new longer front and rear U-bolts and hardware, as well as pan-hard bar alignment bushings
• Requires no cutting or strut spring pre-loading
• Maintains OEM ride and drivability
• Includes all necessary hardware

Specs

• Front Lift: 2.0 inches (Mini Leaf Pack)
• Rear Lift: 2.0 inches (from OEM block equivalent - 4.0 inch blocks provided)
• Max Tire Size: 35 inches (e.g., 35x12.50 for no rub on a 9 inch wide wheel with 0 offset)
• Engine Compatibility: Gas or Diesel engine applications

Compatibility Notes

• Fits Ford F250 Super Duty 4WD trucks from 1999 to 2004 (Note: for use on 1999 models built after 3/1/1999 - not for use on trucks built before 3/1/99).
• Fits Ford Excursion 4WD models from 2000 to 2005.
• For trucks with a two-piece drive shaft.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs.
• Stock length shocks will typically work up to 2.5 inches of lift.

Notes

• The product is backed by a Limited Lifetime Warranty.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
