1999-2006 GM 1500 4.5" Lift Kit with NX2 Nitro Shocks (BDS182H)

The BDS 4.5" lift kit for the 1999-2006 Chevy Silverado and GMC Sierra 1500 4WD improves stance and clears up to 33" tires, using a No Torsion Bar Drop System that mounts the torsion bars directly to the top of the lower a-arm for maximum ground clearance. The high-clearance front end uses torsion bar relocation brackets, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, HD skid plates, and CNC-machined ductile iron steering knuckles with sway bar drops, bump stop extensions, brake line brackets, and CV spacers. The rear is available with a replacement lift block or full Glide-Ride leaf springs, new u-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance
• Glide-Ride leaf springs eliminate any need for a lift block
• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for a smooth ride
• Maintains factory payload weight ratings
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
• Requires frame bracket modification and differential mount modification as well as minor welding.
• If equipped with stock 17 inch wheels, then must replace with 17 inch or larger aftermarket wheels.
• AWD models will require front driveline modification.
• Will not fit Quadsteer equipped models.

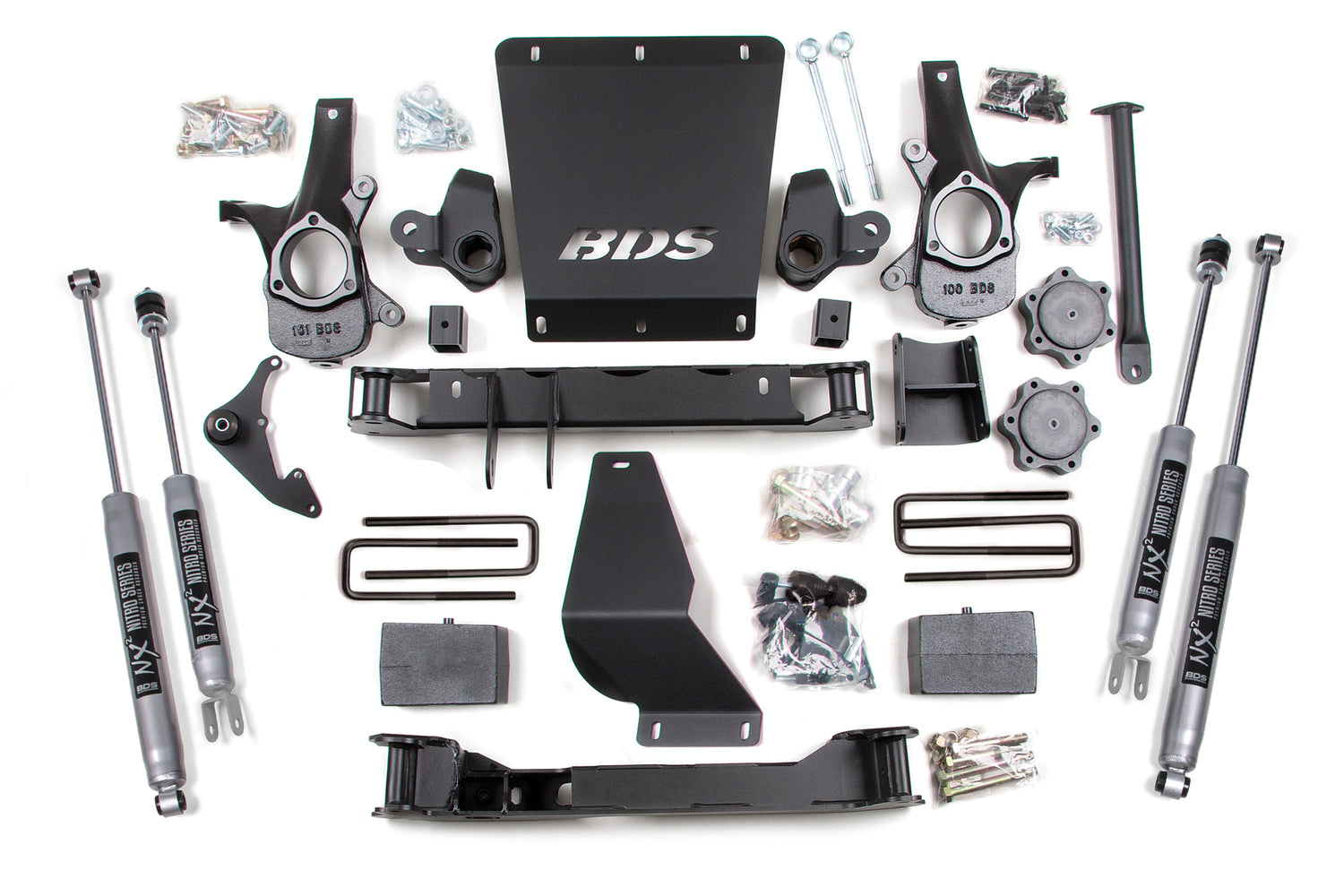

Includes

• BDS001559, GM 1/2 ton 5.5in Rear Spring (UPC 658848611218)
• BDS011458, 99-13 GM 1500 4 Inch Rear Box Kit (UPC 658848611874)
• BDS021450, 4.5in Torsion Bar System (UPC 658848614660)
• BDS021610, 99-03 GM 1500/Silverado Box Kit (1of2) (UPC 658848614820)
• BDS021626, 99-06 K1500 Main Box Kit (UPC 658848614851)
• BDS121614, Front Skid Plate (UPC 658848619115)
• BDS85602, Shock- 21.50 x 13.75 x 2-3/8 - S1/Ubrkt (UPC 711745609280)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
