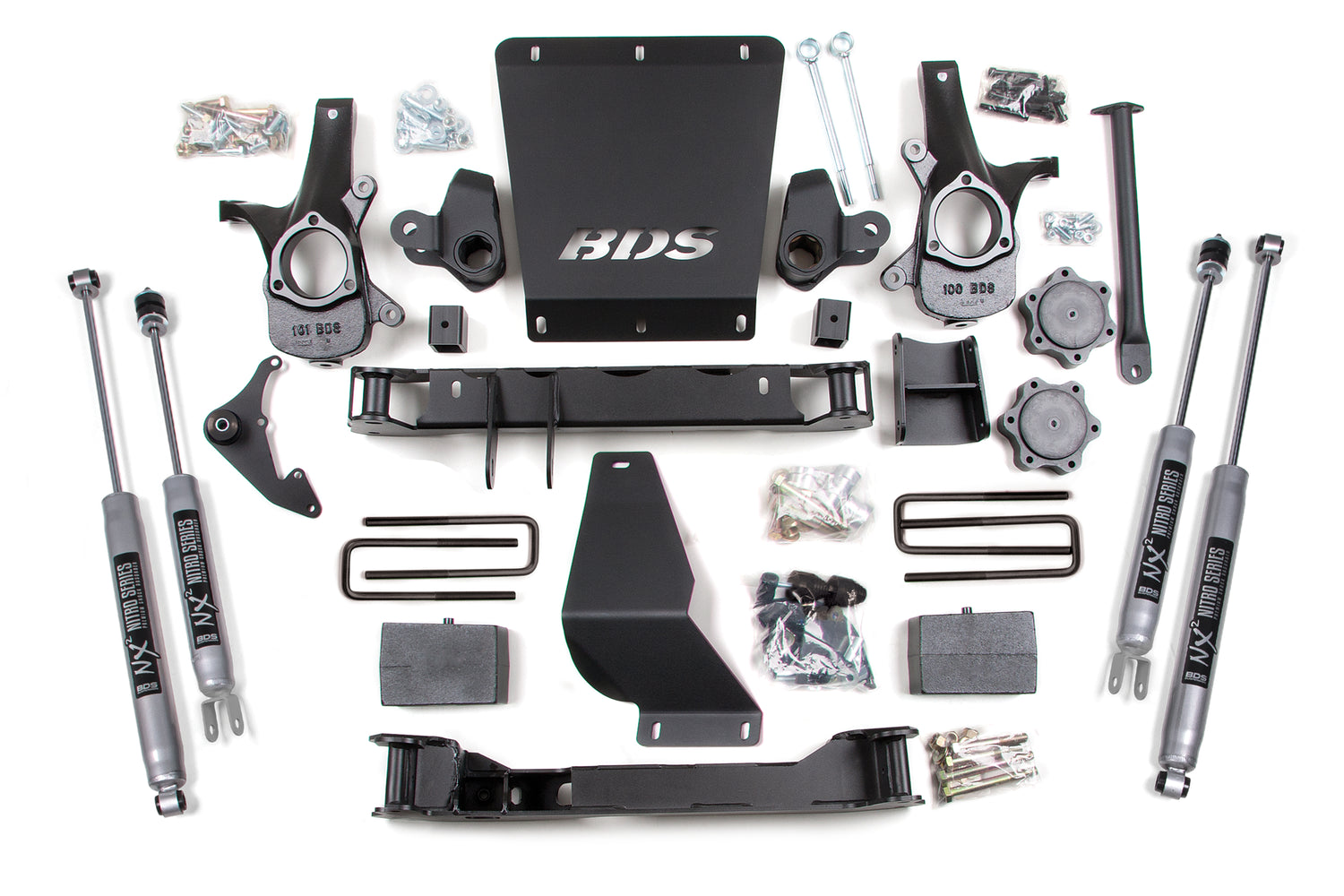

1999-2006 GM 1500 6" Lift Kit with NX2 Nitro Shocks (BDS179H)

The BDS 6" lift kit for the 1999-2006 Chevy Silverado and GMC Sierra 1500 4WD clears up to 35" tires and uses a No Torsion Bar Drop System that mounts the torsion bars to the top of the lower a-arm for maximum ground clearance. Up front it runs torsion bar relocation brackets, high-arched 1/4" steel crossmembers, multi-piece differential relocation brackets, heavy-duty skid plates, and CNC-machined ductile iron steering knuckles that work with the factory tie rod ends, plus sway bar drops, bump stop extensions, brake line brackets, and CV spacers. The rear offers a replacement lift block or full Glide-Ride leaf springs (4.5" of lift), new u-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 shocks.

Features

• No torsion bar drop design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks
• Optional Glide-Ride leaf springs give 4.5" of lift and freshen worn factory springs; includes new center pins
• NX2 shocks: nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars; not available through BDS.
• Requires frame bracket modification, differential mount modification, and minor welding.
• AWD models will require front driveline modification.
• Will not fit Quadsteer equipped models.
• If equipped with stock 17" wheels, they must be replaced with 17" or larger aftermarket wheels.

Includes

• BDS011559, 99-13 GM 1500 5.5in Rear Block & AAL (UPC 658848611980)
• BDS021610, 99-03 GM 1500/Silverado Box Kit (1of2) (UPC 658848614820)
• BDS021617, Torsion Bar System (UPC 658848614837)
• BDS021626, 99-06 K1500 Main Box Kit (UPC 658848614851)
• BDS121614, Front Skid Plate (UPC 658848619115)
• BDS85602, Shock- 21.50 x 13.75 x 2-3/8 - S1/Ubrkt (UPC 711745609280)
• BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609686)
