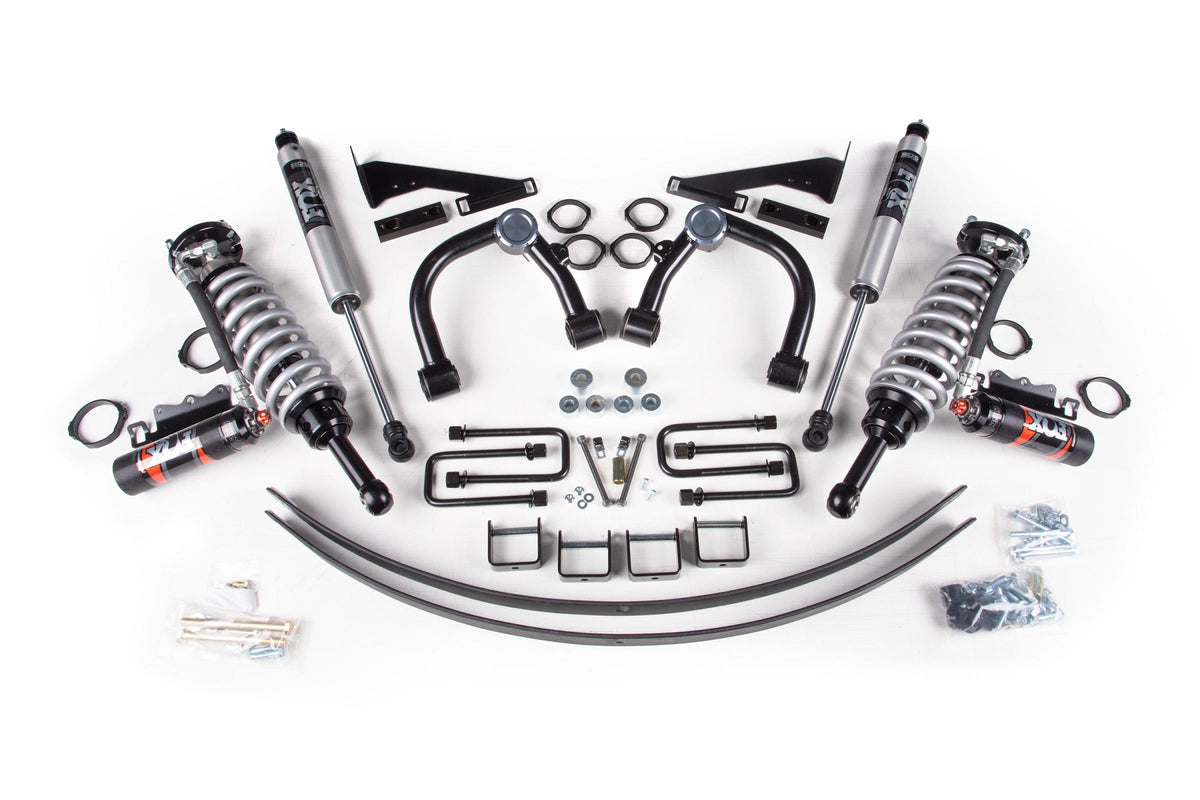

2016-2023 Tacoma 2" Lift Kit with FOX 2.0 Performance Shocks (BDS835FPE)

BDS 2" lift for the 2016-2023 Toyota Tacoma with clearance for up to 33" tires. Up front it includes FOX 2.5 Factory Series remote reservoir coil-overs, heavy duty tubular upper control arms, 1" front differential spacers, and longer hardware to keep CV axles within correct operating angles. In the rear, BDS supplies add-a-leafs for 1" of lift to level the truck plus a set of FOX 2.0 Performance shocks. The FOX 2.5 shocks add a remote reservoir for cooling and Dual Speed Compression Adjust with 10 low-speed and 12 high-speed compression settings. The tubular UCAs use 1.5" OD x .120-wall construction with an indexed ball joint cup for added down travel and camber adjustment.

Features

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt-on installation
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 285/70
• Wheel Diameter: 17x8
• Back Spacing: 4.5

Notes

• Optional rear FOX 2.5 Dual Speed Compression Adjust reservoir shocks are available for maximum off-road capability.

Includes

• BDS018217, 2005-2023 Toyota Tacoma Add-A-Leaf Kit (UPC 658848614417)
• BDS028301, 2005-2023 Toyota Tacoma 3 inch Coilover Front Box Kit (UPC 658848616145)
• FOX88306178, Kit: 05-ON Toyota Tacoma, Front, Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2-3 inch Lift, Dual Speed Compression Adjust
• FOX98024670, 05-ON Toyota Tacoma Rear, PS, 2.0, Internal Floating Piston, 8.1 inch, 0-1 Inch Lift
