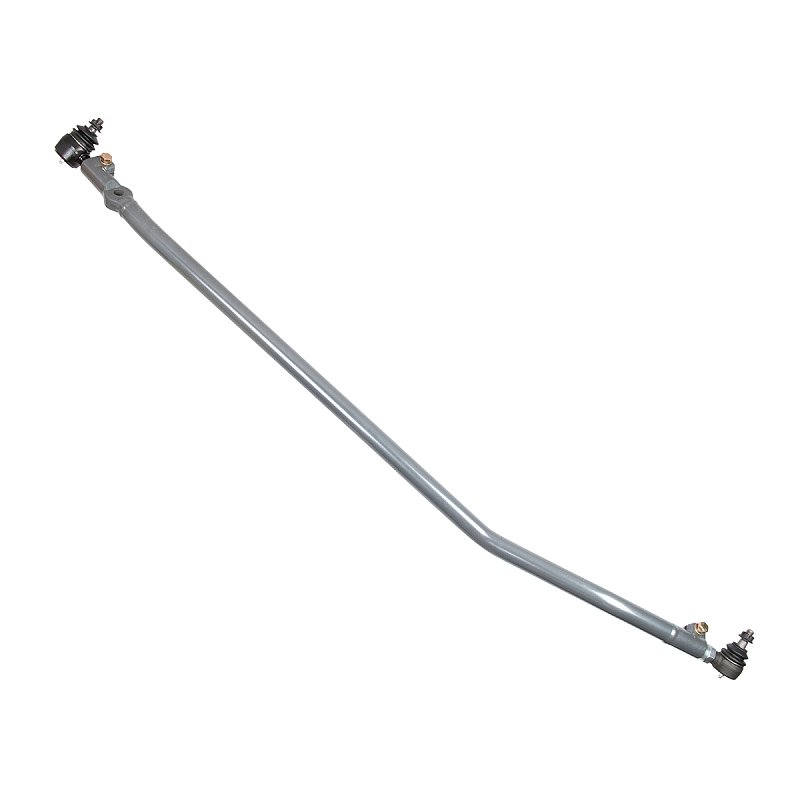

2000-2002 Ram 1500/HD Ram Heavy Duty Tie Rod (SYN8568-22)

Description

" name="returnURL" value="/synergy-1994-2002-dodge-ram-heavy-duty-tie-rod" /> The 1994-2002 Dodge Ram Heavy Duty Tie Rod delivers increased durability without the need for drilling or reaming. Designed around the updated factory T-style steering geometry, it eliminates the toe change commonly associated with Y-style steering systems while avoiding the bump steer often introduced by aftermarket crossover kits. Engineered for strength, precision, and straightforward installation, this tie rod is designed to be used in conjunction with the Synergy Drag Link and built to handle oversized tires, heavy loads, and aggressive use both on and off road. Complete with our signature metal-on-metal tie rod ends, this tie rod delivers exceptional longevity and precision. Unlike weaker tie rod ends that still contain a nylon liner, our metal-on-metal ends are fully greaseable and engineered to perform under extreme loads — providing unmatched durability and steering feel in all conditions. When paired with the Synergy Heavy Duty Drag Link , Steering Stabilizer Mount Kit, and one of our Synergy Tuned Steering Stabilizers, it becomes part of a complete steering solution that sets the benchmark for performance, stability, and reliability. Pro-Tip: Pair one of our heavy duty steering kits with our Heavy Duty Track Bar Conversion Kit for the most reliable front end upgrade to your 2nd Gen Ram!

Part Number: 8568-22

Features

• Engineered and precision bent from 1.5" x .188 wall 4130 Chromoly and Heat Treated for maximum strength
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance

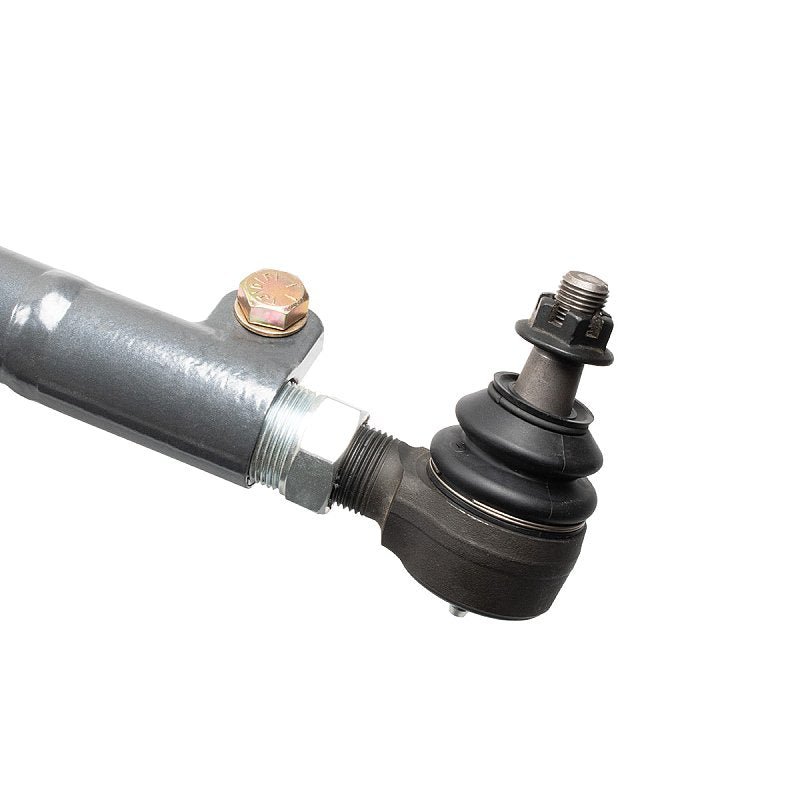

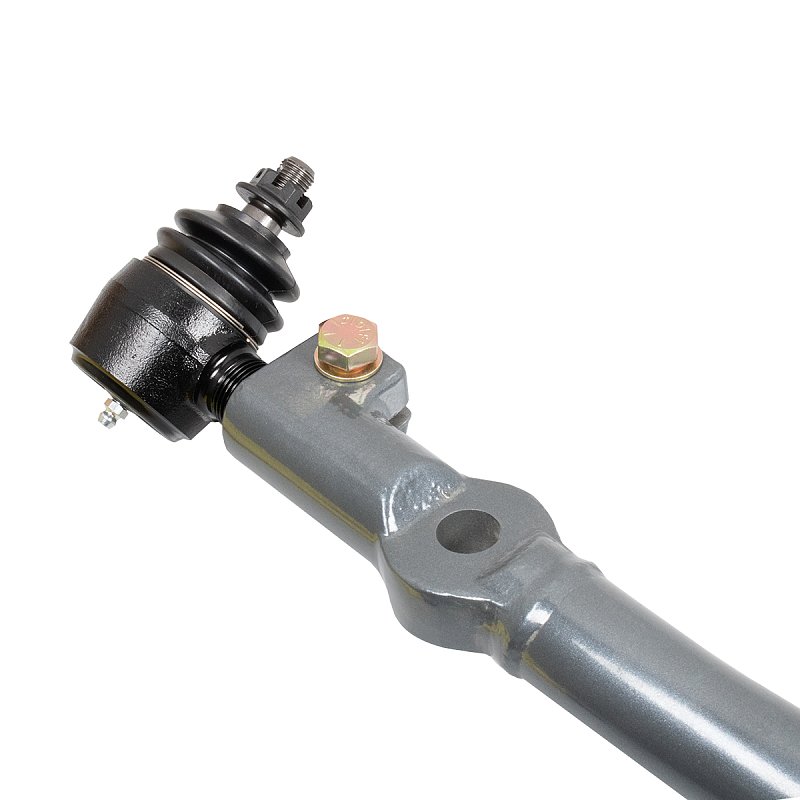

• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly eliminates jam nuts and allows for easy adjustability
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
• Min/max Measurements:
• Measured from center of mounting point to center of mounting point
• Minimum - 59.75"
• Maximum - 62"
• Precision built from 1.5" x .188 wall heat treated chromoly tubing, providing over 200% more strength over the stock tie rod
• Improves strength and steering feel and eliminates any chance of bending
• Offers a more direct connection to the road compared to stock; no more bent drag links and constantly having to align your vehicle

What's Included

• (1) Heavy Duty Track Bar
• (1) Grade 8 Hardware Kit

Notes

• These drag links are a component of our 1999 - 2002 Heavy Duty Steering Kit and are designed to be used in conjunction with the Synergy Heavy Duty Drag Link part number 8567-12 or 8567-13 Not backwards compatible with the stock drag link
• 2000 - 2002 Replacement Tie Rod Ends 4134-L (Driver)
• 4167-L (Passenger)
• 1994 - 1999 Replacement Tie Rod Ends 4136-L (Driver)
• 4169-L (Passenger)
• New single plane tie rod end - part number 4167-L - is not compatible with the metal misalignment caps (part number 4134-02) If upgrading to the new single plane tie rod end on older model tie rods that include the metal caps, the opposing tie rod end will require a new poly boot part number 4131-01
• If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Recommended Fox Steering Stabilizers: IFP - Internal Floating Piston {6401-01 )

Warranty

This product is covered by Synergy Manufacturing's Limited Lifetime Warranty against defects in materials and workmanship.
