2000-2002 Ram HD 5" Long Arm Conversion Kit with NX2 Nitro Shocks (BDS222H)

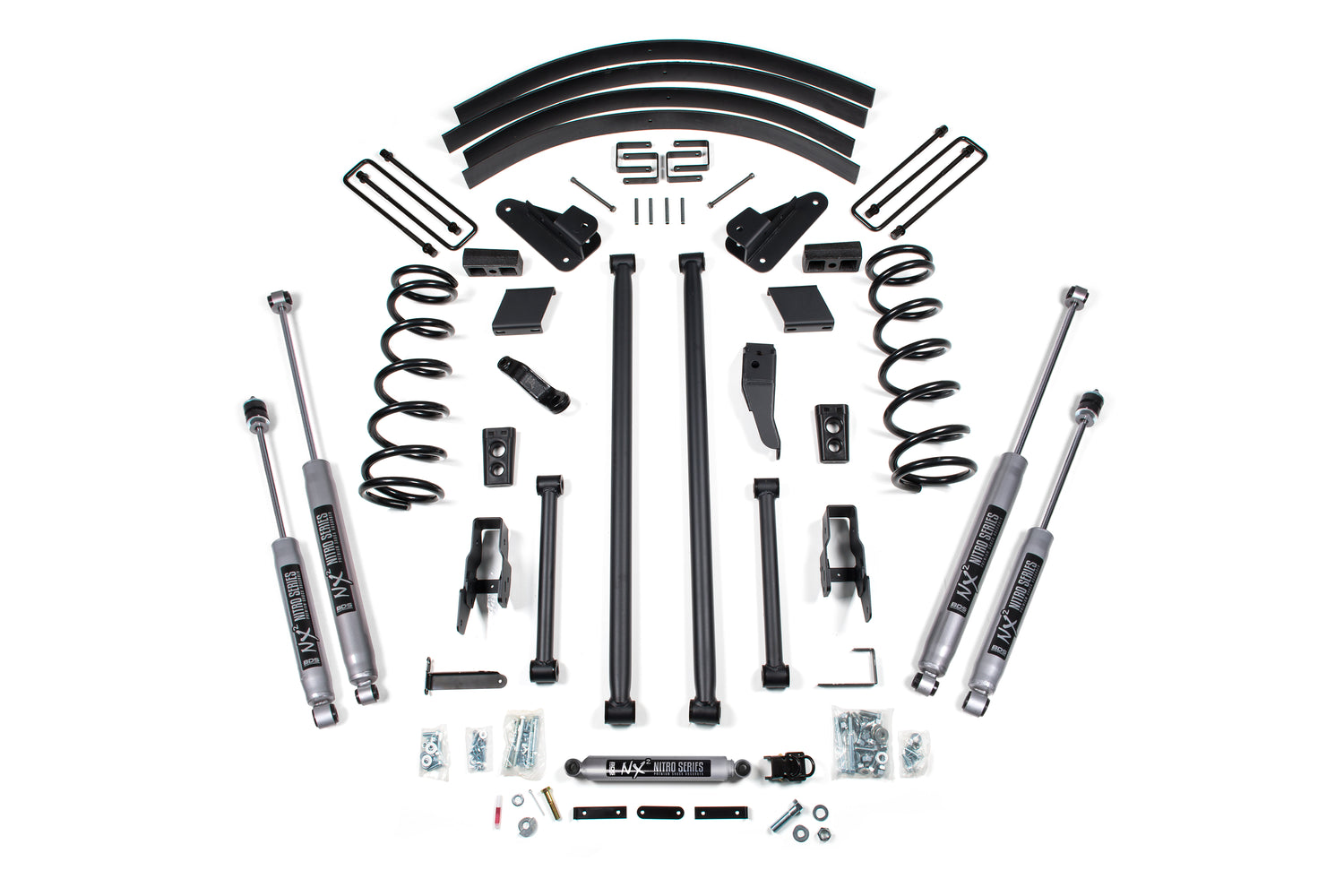

This BDS 5" lift kit with long arm conversion raises your 2000-2002 Dodge Ram 2500/3500 4WD with clearance for up to 35" tires. The 4-link long arm system uses longer lower control arms to reduce caster change through wheel travel for a more controlled feel, while retaining the factory arm triangulation for added stability. Up front it includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, and sway bar drop brackets. The rear uses a heavy duty cast steel block and add-a-leaf combo with longer u-bolts. Choose NX2 Nitro or FOX 2.0 Performance shocks front and rear.

Features

• Tubular long arms reduce caster change for a more controlled feel on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 Nitro gas or FOX 2.0 Performance Internal Floating Piston shocks
• Rear add-a-leaf eliminates any need for a lift block, reduces axle wrap, and maintains factory payload ratings
• NX2 Nitro: nitrogen-charged, twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4.5 inch

Notes

• May require exhaust modification.
• Dual stabilizer may be substituted for the single stabilizer that comes in the kit.
• These vehicles were produced with and without a top mounted overload spring. You will need to identify which your vehicle has before ordering the rear block & add-a-leaf kit.

Includes

• BDS002458, Dodge Ram 3/4 ton 4.5in Rear Spring (UPC 658848611270)
• BDS012508, 94-02 Dodge 2500 Rear Bx Kit w/BDS Rear (UPC 658848612543)
• BDS012511, 94-01 Dodge Ram Long Arm Kit (1of2) (UPC 658848612550)
• BDS012512, 00-01 Dodge Ram Long Arm Kit (2of2) (UPC 658848612567)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85406, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609051)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
