2000-2002 Ram HD 5" Lift Kit with NX2 Nitro Shocks (BDS221H)

This BDS Suspension 5" lift kit sets up your 2000-2002 Dodge Ram 2500 and 3500 4WD right with clearance for up to 35" tires. Up front it runs progressive rate Pro-Ride coil springs, all four control arms plus a relocation bracket to rotate the axle and flatten the upper arm angle for factory handling, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and NX2 Nitro shocks. The rear uses a heavy duty cast steel block and add-a-leaf combo, longer u-bolts, and matching NX2 Nitro shocks to control axle wrap.

Features

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas shocks to improve ride and offroad performance
• Rear cast steel block and add-a-leaf combo reduces axle wrap for a more controlled, stable feel
• Nitrogen-charged twin-tube shock design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4.5 inch

Notes

• May require exhaust modification.
• These vehicles were produced with and without a top mounted overload spring. You will need to identify which your vehicle has before ordering the rear block & add-a-leaf kit.
• Dual stabilizer may be substituted for the single stabilizer that comes in the kit.

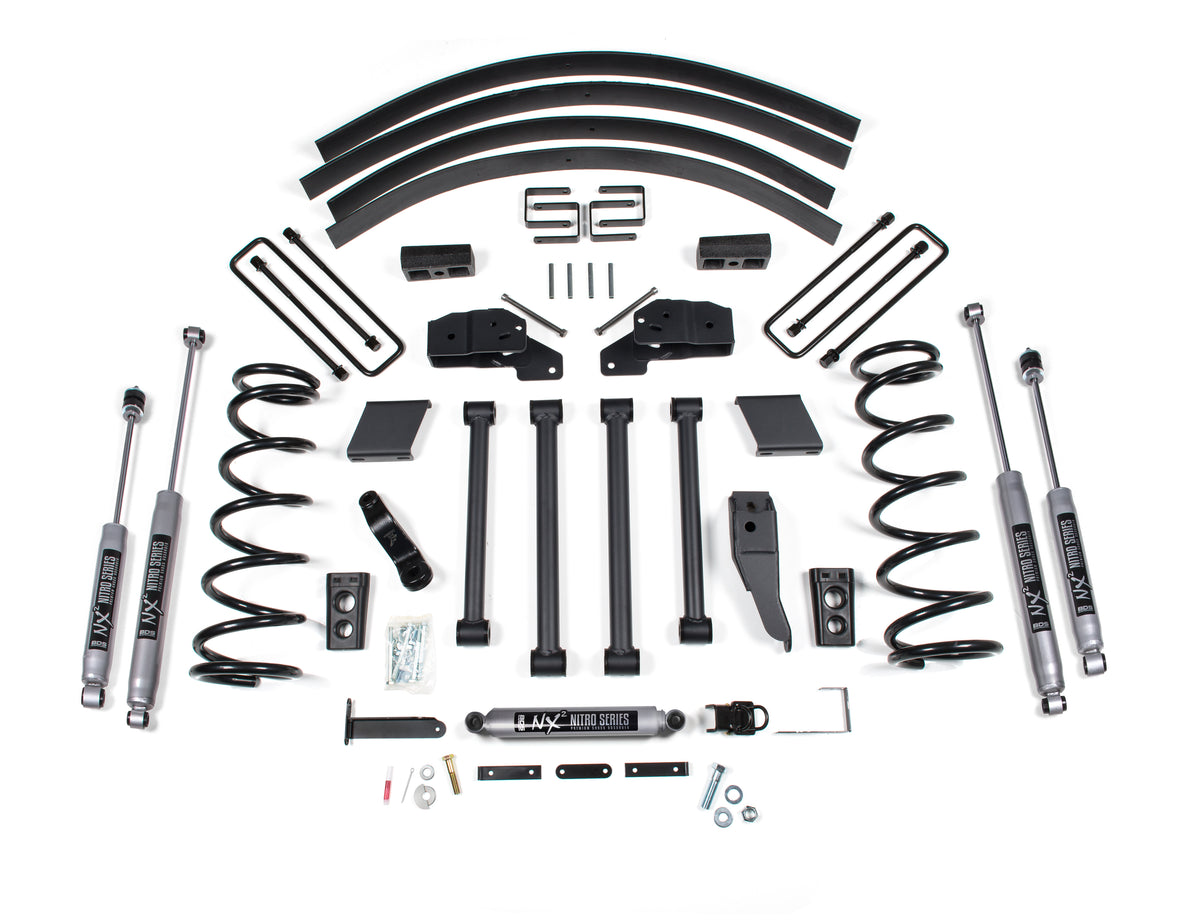

Includes

• BDS002458, Dodge Ram 3/4 ton 4.5in Rear Spring (UPC 658848611270)
• BDS012504, 00-01 Dodge 1500/2500 5in Front Box Kit (UPC 658848612529)
• BDS012508, 94-02 Dodge 2500 Rear Bx Kit w/BDS Rear (UPC 658848612543)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85406, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609051)
• BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609600)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
