2000-2002 Ram HD 5" Long Arm Conversion Kit with FOX 2.0 Performance Shocks (BDS220FS)

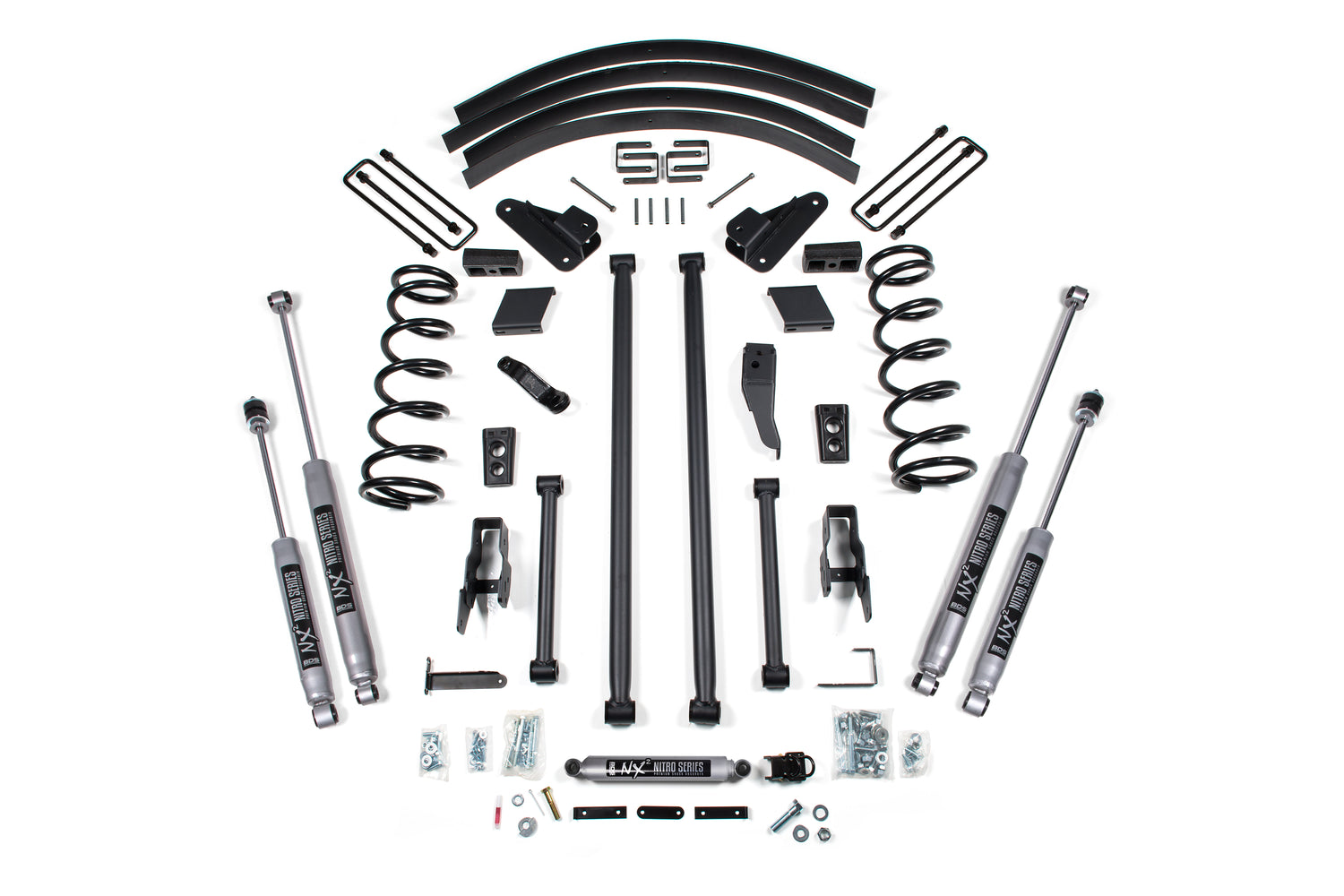

Built to outperform, this BDS 5" long arm conversion lift kit for your 2000-2002 Dodge RAM 2500 and 3500 4WD truck clears up to 35" tires and maximizes performance on and off road. The 4-link long lower control arms reduce caster change through wheel travel for a more controlled feel while retaining factory triangulation for stability. Up front it includes diesel-specific progressive-rate Pro-Ride coil springs, all four control arms plus mounting bracket, a forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. The rear uses heavy duty cast steel blocks and add-a-leaf combo, longer u-bolts, and matching FOX 2.0 Performance shocks.

Features

• Tubular long arms reduce caster change and create a more controlled feel on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX Performance Series internal floating piston gas shocks
• FOX 2.0 shocks: 2-inch Impact extruded aluminum body, internal floating piston monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4.5 inch

Notes

• May require exhaust modification.
• A dual stabilizer may be substituted for the single stabilizer that comes in the kit.
• These vehicles were produced with and without top-mounted overload springs. Identify which your vehicle has before ordering the rear block & add-a-leaf kit.

Includes

• BDS012457, 94-01 Dodge 2500 Rear Kit w/Top Mtd (UPC 658848612468)
• BDS012511, 94-01 Dodge Ram Long Arm Kit (1of2) (UPC 658848612550)
• BDS012512, 00-01 Dodge Ram Long Arm Kit (2of2) (UPC 658848612567)
• BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit (UPC 658848616398)
• BDS85406, Steering Stab 23.9 x 14.3 - EB1/EB1 (UPC 711745609051)
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
