2000-2003 Excursion 4x4 7.3L Diesel 4.5" Lift Performance System (CS-FEXP25-7.3)

Description

Enter the Carli Performance 4.5" Lift Kit, featuring custom-tuned 2.5 series King Shocks with 9" of travel, 12" stroke with a custom hose to route the reservoir out from under the bed. These shocks provide exceptional highway and off-road performance without compromises. Deaver progressive leaf spring packs all around give you a true lifted, but leveled ride.

Part Number: CS-FEXP25-7.3

Features

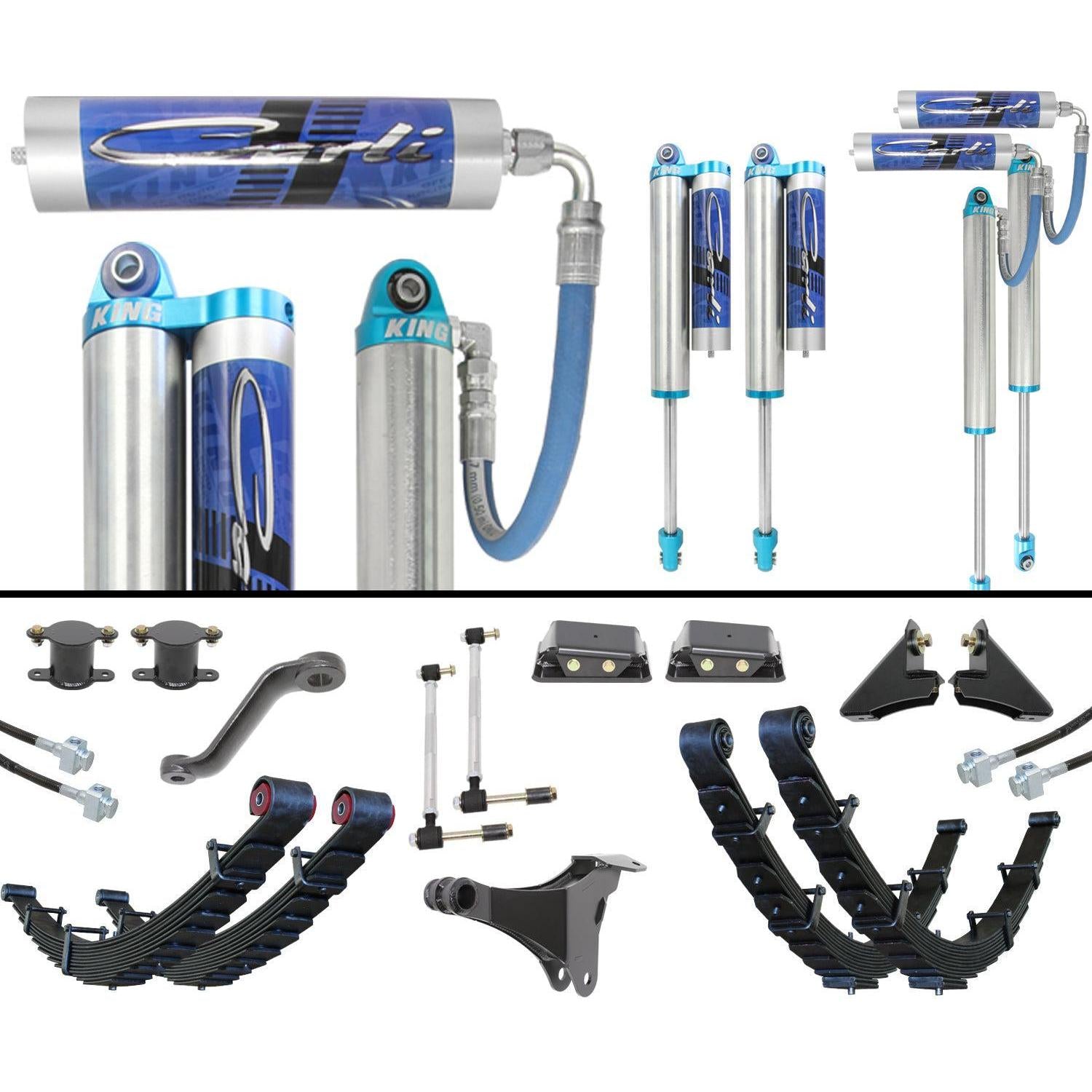

• Carli Spec King 2.5" shocks, front and rear leaf springs, brake lines, f&r bump stop drops, front sway bar links, drop pitman arm, track bar drop, and rear shock mounts
• Front and rear Carli Spec Deaver leaf springs provide 50% more suspension travel and a much smoother ride
• Carli Spec King shocks featuring Carli 5-Port pistons are tuned for great ride quality and superior control
• Easily clear 35" tires with no trimming and a full range of travel

Notes

• Rear upper shock mounts require welding
• The rear springs are a reduced capacity spring pack (reduces payload/hauling capacity to a "light" ¾-ton). If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity with the addition of Carli Excursion-specific Long-Travel Airbags
• All King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a replaceable moisture barrier
