2000-2006 GM 1500 / Tahoe 4" Lift Kit with NX2 Nitro Shocks (BDS191H)

BDS 4" lift for the 2000-2006 Chevy Avalanche, Suburban, and Tahoe and GMC Yukon 1500 4WD with clearance for up to 33" tires. For maximum ground clearance, BDS uses a No Torsion Bar Drop System that mounts the torsion bars directly to the top of the lower a-arm, eliminating the torsion bar cross-member drop. Up front it uses torsion bar relocation brackets, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles. The rear lift uses new coil springs, track bar relocation, sway bar links, and extended bump stops, with brackets for Auto Ride vehicles or NX2 Nitro / FOX 2.0 Performance shocks.

Features

• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Spacer
• Shocks Included: No
• Front Lift Height: 4.5 inch
• Rear Lift Height: 3.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
• Requires frame bracket modification and differential mount modification.
• All-wheel drive models will require front drive line modification.
• If equipped with stock 17 inch wheels, must replace with 17 inch or larger aftermarket wheels.
• Larger tires cannot be installed on OEM wheels.
• Auto-Ride equipped vehicles require part #121400 in place of front and rear shocks.
• System will not fit 2000 model Escalades.

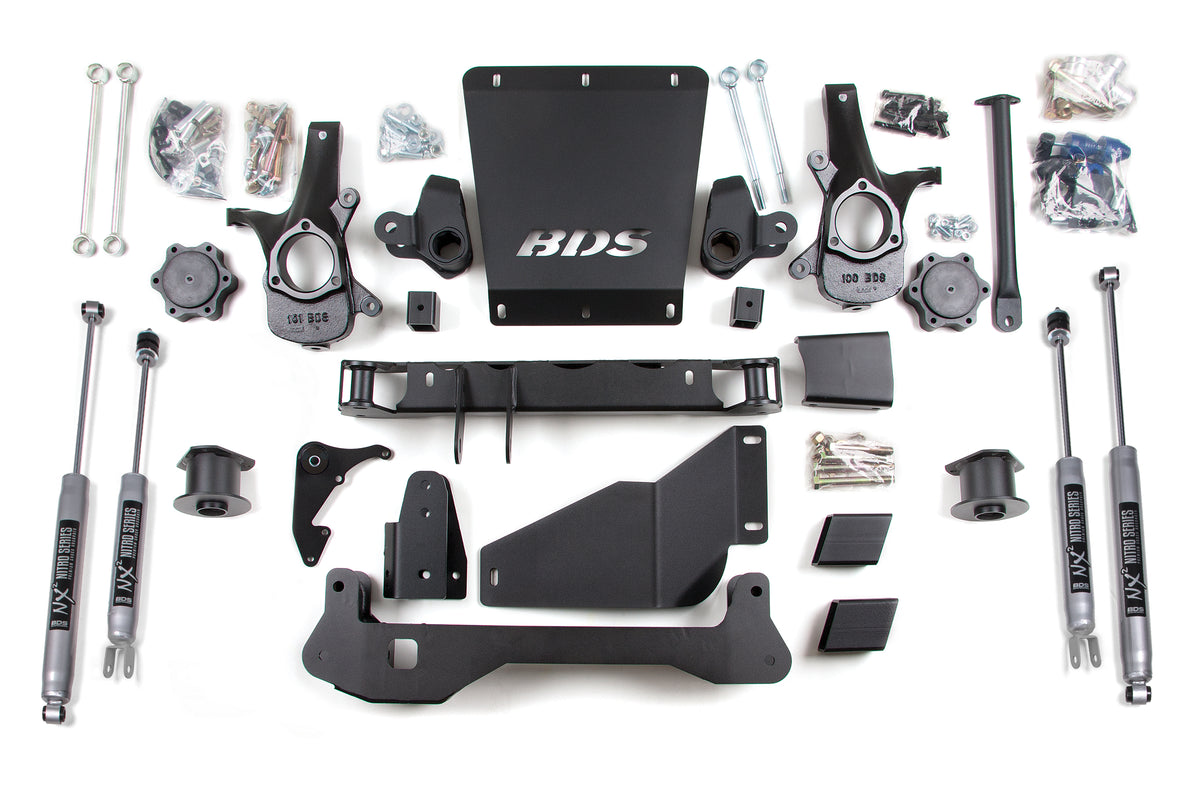

Includes

• BDS021359, 2000-2006 GM 1500/SUV 3.5 inch Rear (UPC 658848614578)
• BDS021450, 4.5in Torsion Bar System (UPC 658848614660)
• BDS021610, 99-03 GM 1500/Silverado Box Kit (1of2) (UPC 658848614820)
• BDS021626, 99-06 K1500 Main Box Kit (UPC 658848614851)
• BDS121614, Front Skid Plate (UPC 658848619115)
• BDS85602, Shock- 21.50 x 13.75 x 2-3/8 - S1/Ubrkt (UPC 711745609280)
• BDS85719, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1 (UPC 711745609570)
