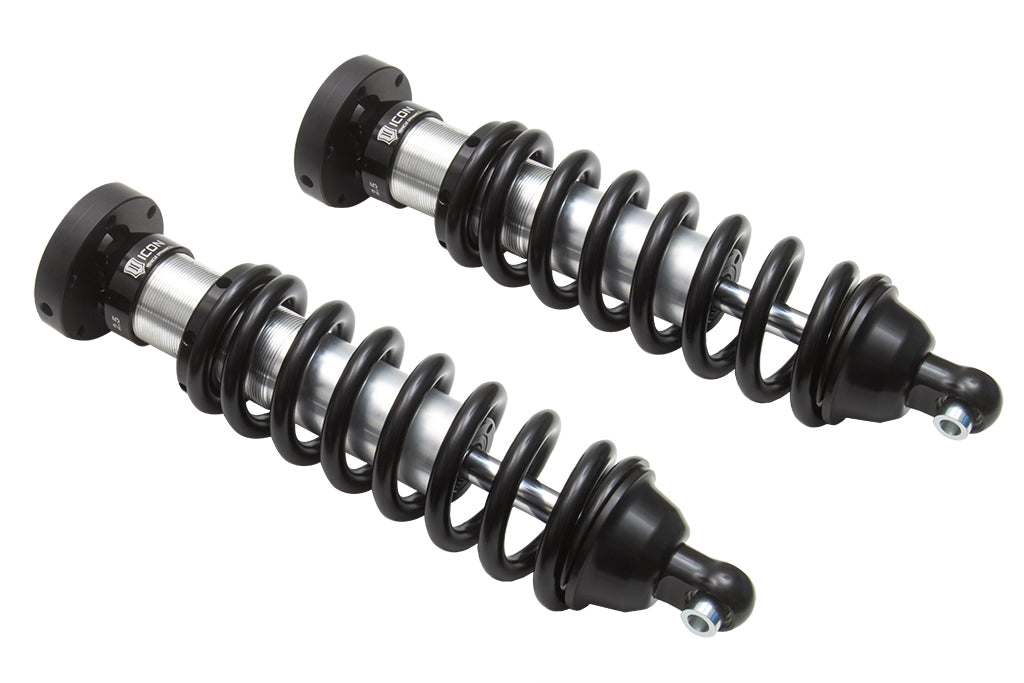

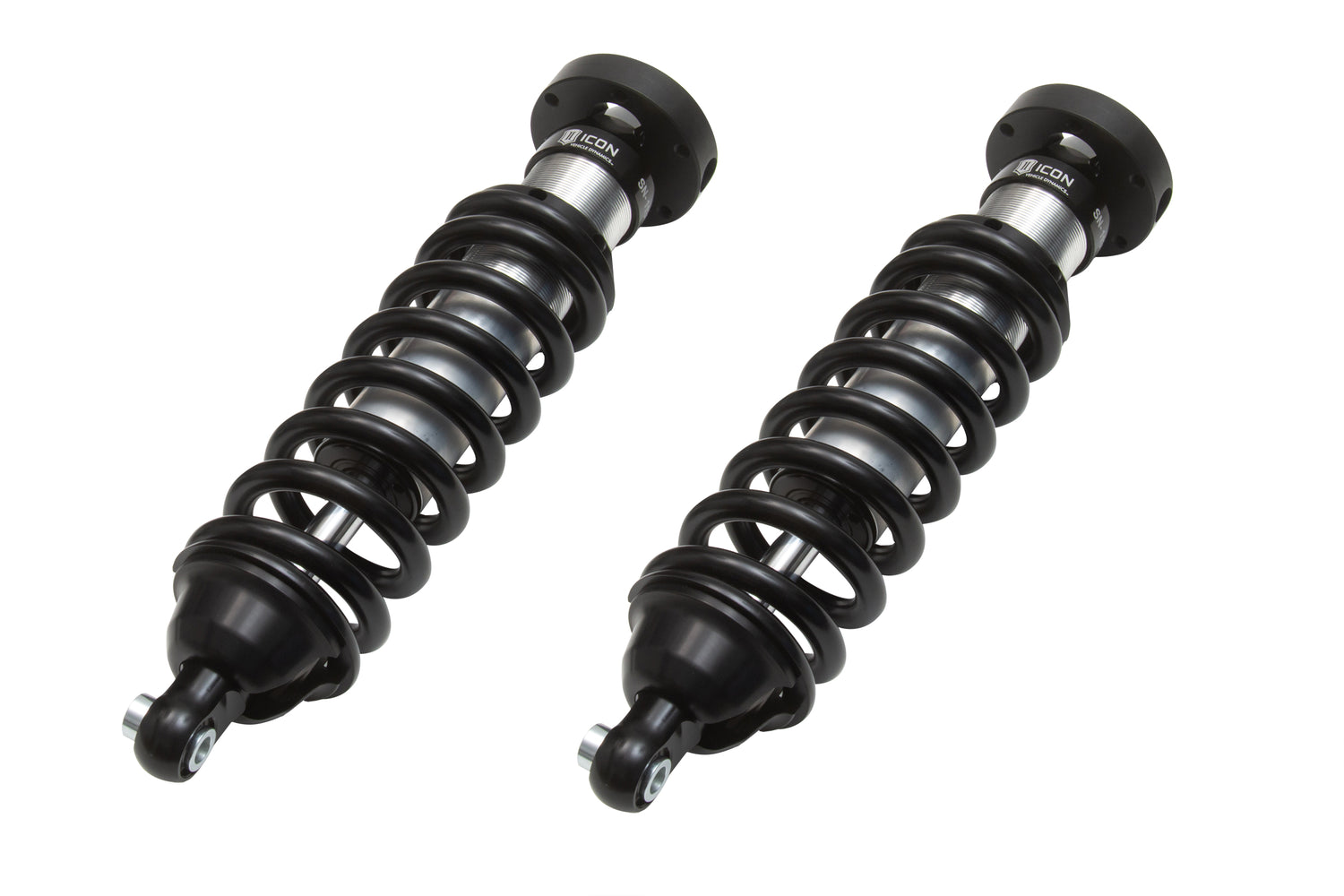

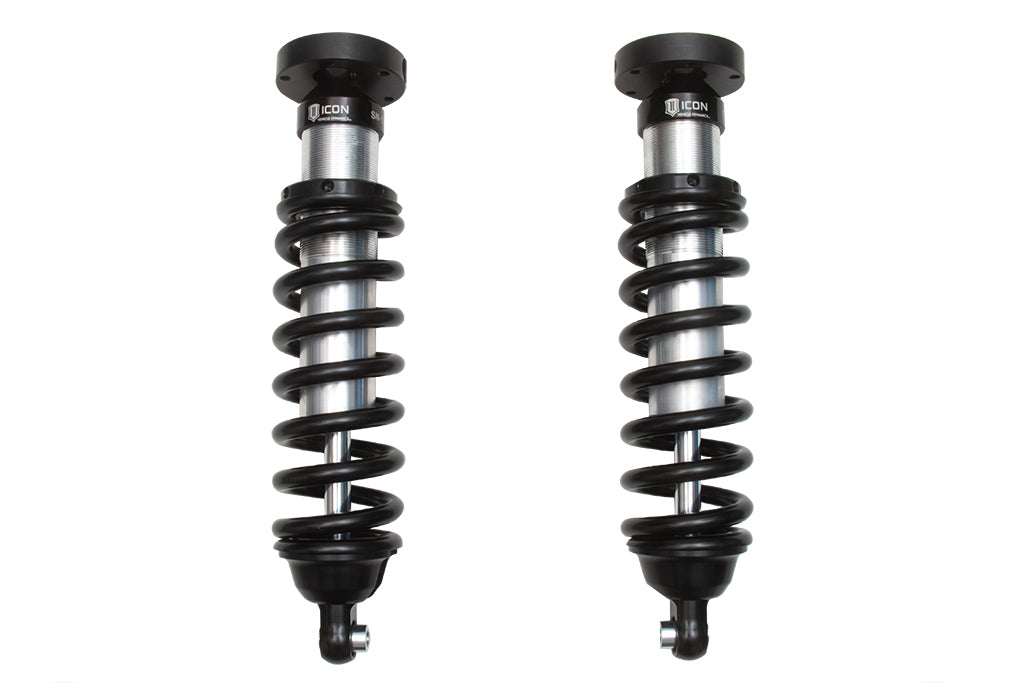

2000-2007 Tundra 2.5 IR Front Coilover Kit (ICO58625)

Drop in serious suspension performance on your 2000-2007 Tundra with ICON 2.5 Series coilovers.

Features

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with aftermarket front upper control arms yields maximum wheel travel
• Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Important Notes

• These systems are to be used with aftermarket upper control arms ONLY
• 700Lb/In Expedition Coil available for heavier equipped vehicles
• Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• These "Extended Travel" length coilovers require installation of aftermarket front upper control arms. If using stock front upper control arms, consider "Standard Travel" versions, ICON part number 58620.

Manufacturer Description

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5" shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
