2001-2006 LS430 Performance Rear Kit (ALF75653)

Achieve an incredible 6.4 inches of drop for your 2001-2006 Lexus LS430 with the Air Lift Performance rear air suspension kit. This system replaces your factory rear setup with custom double-bellows air springs and 30-way damping adjustable air-over shocks, allowing you to go from a luxurious "VIP" show stance to a performance-oriented ride height at the touch of a button. Engineered specifically for the UCF30 chassis, this kit delivers superior handling and ride quality that exceeds the factory suspension while maintaining daily driver versatility.

Features

• Maximum drop of 162mm (6.4") for a ground-hugging show stance.
• 30-way damping adjustable monotube shocks for precise rebound and compression tuning.
• Custom double-bellows air springs provide a progressive rate for a smooth, controlled ride.

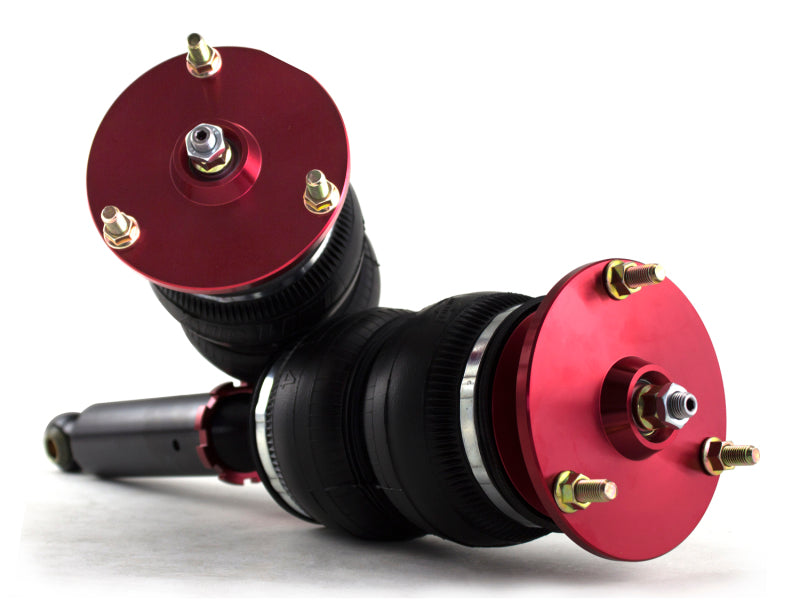

• Red anodized aluminum upper mounts featuring high-quality spherical bearings for precise suspension travel.
• Threaded, adjustable shock bodies allow for independent ride height customization.
• Fully engineered for the LS430 to provide unmatched static drop and high-performance handling.
• Direct bolt-on installation with no vehicle modifications required.

Compatibility Notes

• Specifically designed for 2001-2006 Lexus LS430 (UCF30) models.
• Fits both Base and Premium trim levels.
• Ideal for converting factory air suspension or upgrading from traditional coilovers.

Notes

• This kit is for the rear suspension only; a front kit and air management system are required for full operation.
• Modifications Required: NONE. This is a direct-fit, bolt-on application.
• Backed by Air Lift Performance’s 1-year limited warranty and expert technical support.

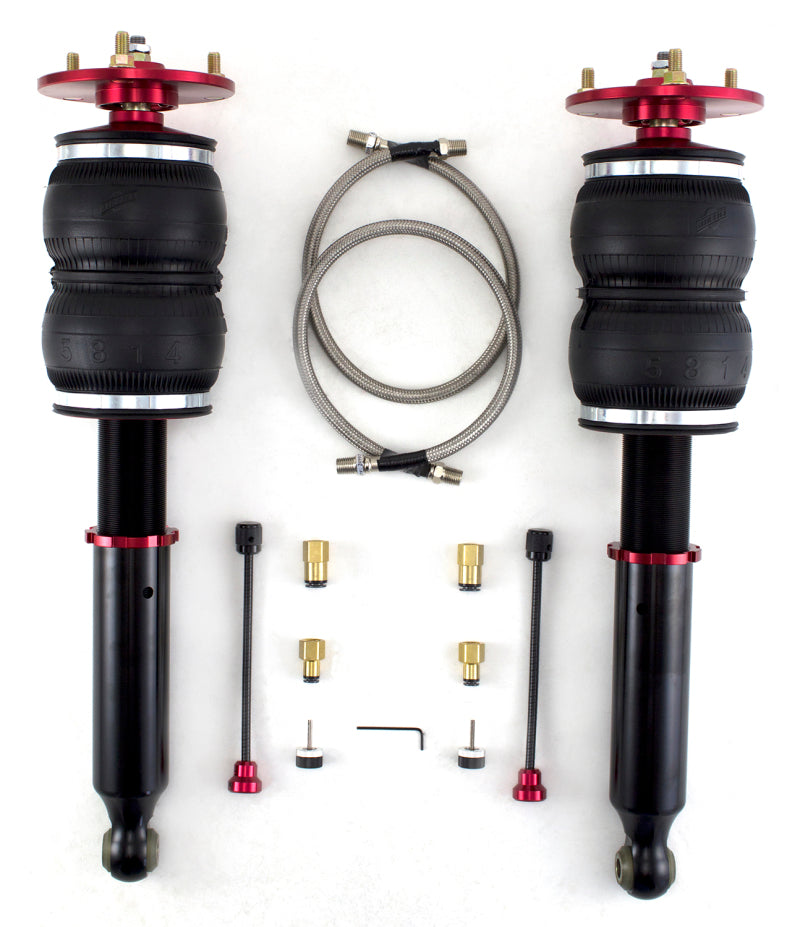

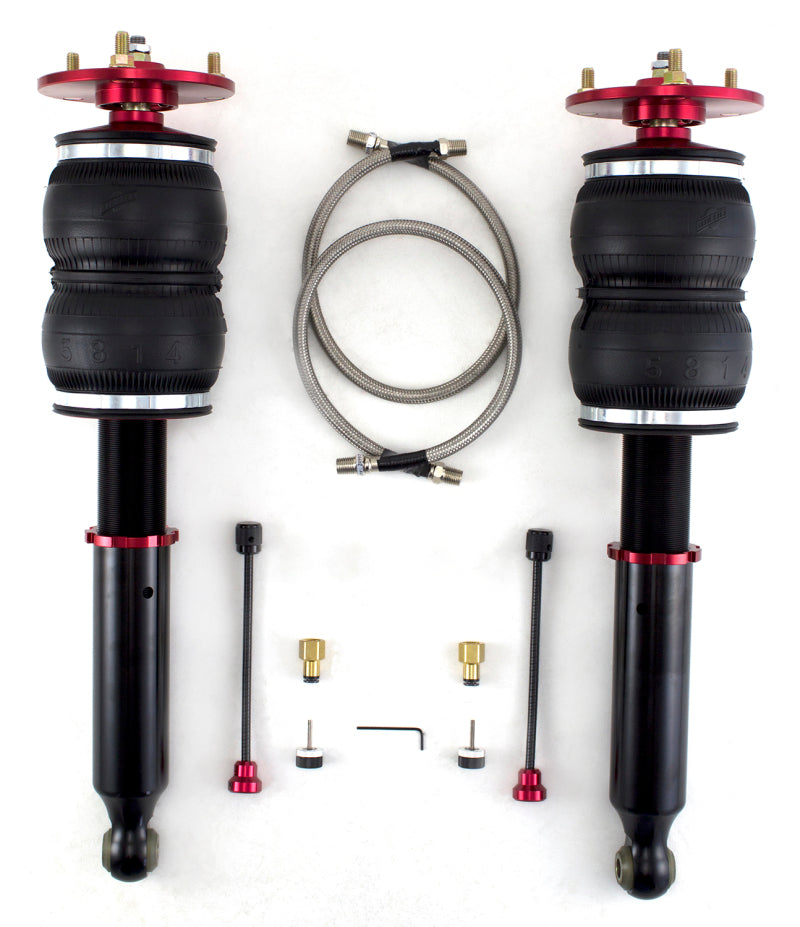

Includes

• Pair of performance-valved, 30-level adjustable rear air-over shocks.

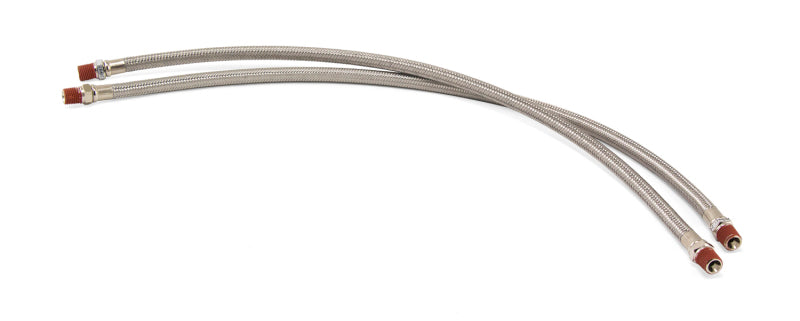

• Braided stainless steel leader hoses.
• 1/4" PTC (Push-to-Connect) air fittings.
• All necessary mounting hardware.
• Detailed, fully illustrated instruction manual.
