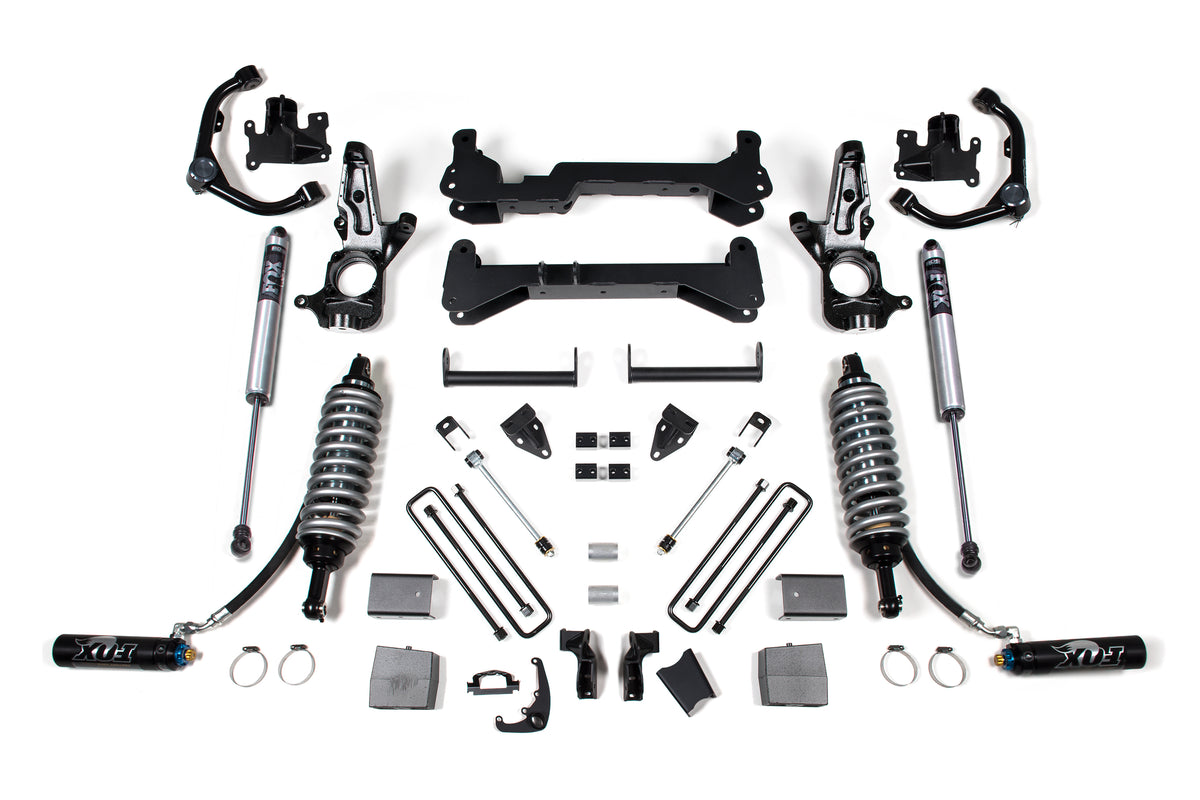

2001-2010 GM HD 7" FOX 2.5 Performance Conversion Kit (BDS149FDSC)

Step up your 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD with this BDS 7" suspension lift kit with FOX 2.5 coil-over conversion, with clearance for up to 35" tires. It uses BDS's high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front are FOX 2.5 coil-overs, heavy duty tubular upper control arms, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles, plus sway bar drops, bump stop extensions, brake line brackets and CV spacers. The rear offers replacement lift block or full Glide-Ride leaf spring options, new u-bolts and FOX 2.0 Performance Series shocks. UCAs use 1.5" OD x .120-wall tubular construction with greaseable ball joints, finished in black powder coat.

Features

• FOX 2.5 coil-overs offer improved damper performance over stock
• DSC adjuster allows easy high-speed and low-speed compression tuning
• Performance UCAs increase strength and allow for more suspension travel
• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 7 Inch
• Rear Lift Height: 5 Inch

Notes

• Trimming may be required (35 x 12.5 with 16 x 8 and 4.5 in. backspace, 17 x 9 and 5.5 in. backspace, or 20 x 9 and 5.75 in. backspace).
• The '01-09 2WD HD was available with two different carrier bearing crossmembers. If the carrier bearing is mounted above the crossmember the base kit will work; if mounted below the crossmember, that selection must be made.

Includes

• BDS011507, GM 3/4 ton HD 5in Rear Box Kit (UPC 658848611904)
• BDS021620, 01-10 GM HD (1of3) (UPC 658848614844)
• BDS021627, 01-10 Chevy 2500HD 2wd Box Kit (2of3) (UPC 658848614868)
• BDS021628, 01-10 Chevy 2500HD 2wd Box Kit (3of3) (UPC 658848614875)
• BDS121252, 01-10 HD UCA Kit (UPC 658848618934)
• BDS121611, GM C2500 HD Carrier Bearing Drop (UPC 658848619085)
• BDS121654, 01-10 HD Coilover Mounting Kit (UPC 658848619245)
• FOX88406188, Kit: BDS 01-10 GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust (UPC 814897013704)
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
