2001-2010 GM HD / GM 1500 7" Lift Kit with NX2 Nitro Shocks (BDS150H)

BDS 6" lift kit for 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD, with clearance for up to 35" tires. It uses a No Torsion Bar Drop design that mounts the torsion bars to the top of the lower a-arm for maximum ground clearance. Up front are torsion bar relocation brackets, high-arched 1/4" steel crossmembers, heavy-duty skid plates, and CNC-machined ductile iron steering knuckles that correct steering geometry, plus sway bar drops, bump stop extensions, and brake line brackets. The rear offers a replacement lift block or full Glide-Ride leaf spring option, new u-bolts, and NX2 Nitro or FOX 2.0 Performance shocks.

Features

• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method : Cross-Member
• Rear Lift Method : Block
• Shocks Included : Yes
• Front Lift Height : 7 Inch
• Rear Lift Height : 5 Inch

Notes

• Trimming may be required
• Special tool required to unload/load the torsion bars
• The '01-09 2WD HD came with two carrier bearing crossmember styles. If the carrier bearing mounts above the crossmember, use 121611; if below, use 121612.
• 35x12.5 with 16x8 and 4.5" backspace
• 35x12.5 with 17x9 and 5.5" backspace
• 35x12.5 with 20x9 and 5.75" backspace

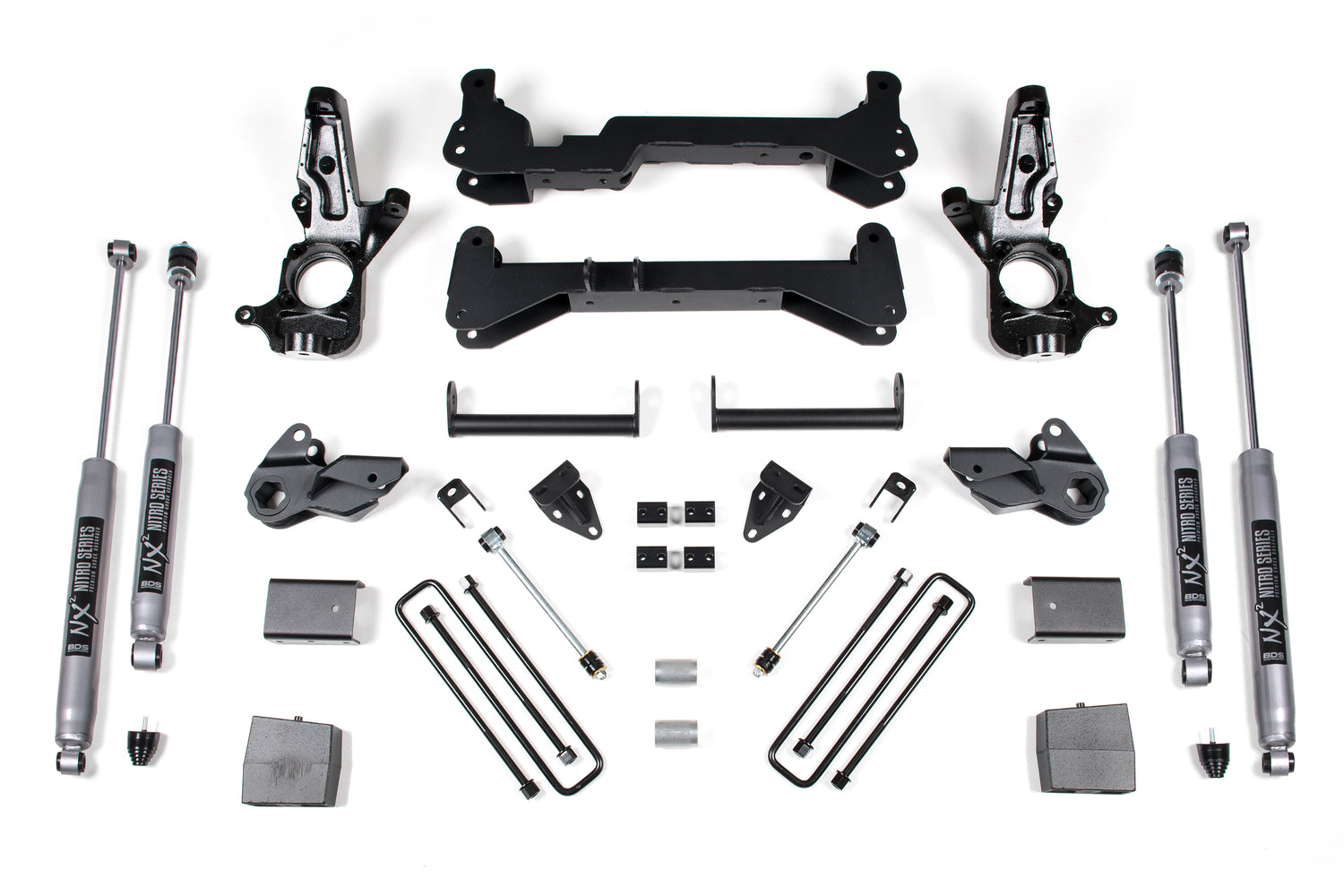

Includes

• BDS011507, GM 3/4 ton HD 5in Rear Box Kit (UPC 658848611904)
• BDS021620, 01-10 GM HD (1of3) (UPC 658848614844)
• BDS021627, 01-10 Chevy 2500HD 2wd Box Kit (2of3) (UPC 658848614868)
• BDS021628, 01-10 Chevy 2500HD 2wd Box Kit (3of3) (UPC 658848614875)
• BDS121612, 2011-2024 GM 2500/3500HD Carrier Bearing Drop (UPC 658848619092)
• BDS85606, Shock- 22.20 x 13.35 x 2 - S50/EB1 (UPC 711745609327)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
