2001-2010 GM HD 4.5" FOX 2.5 Performance Conversion Kit (BDS740FDSC)

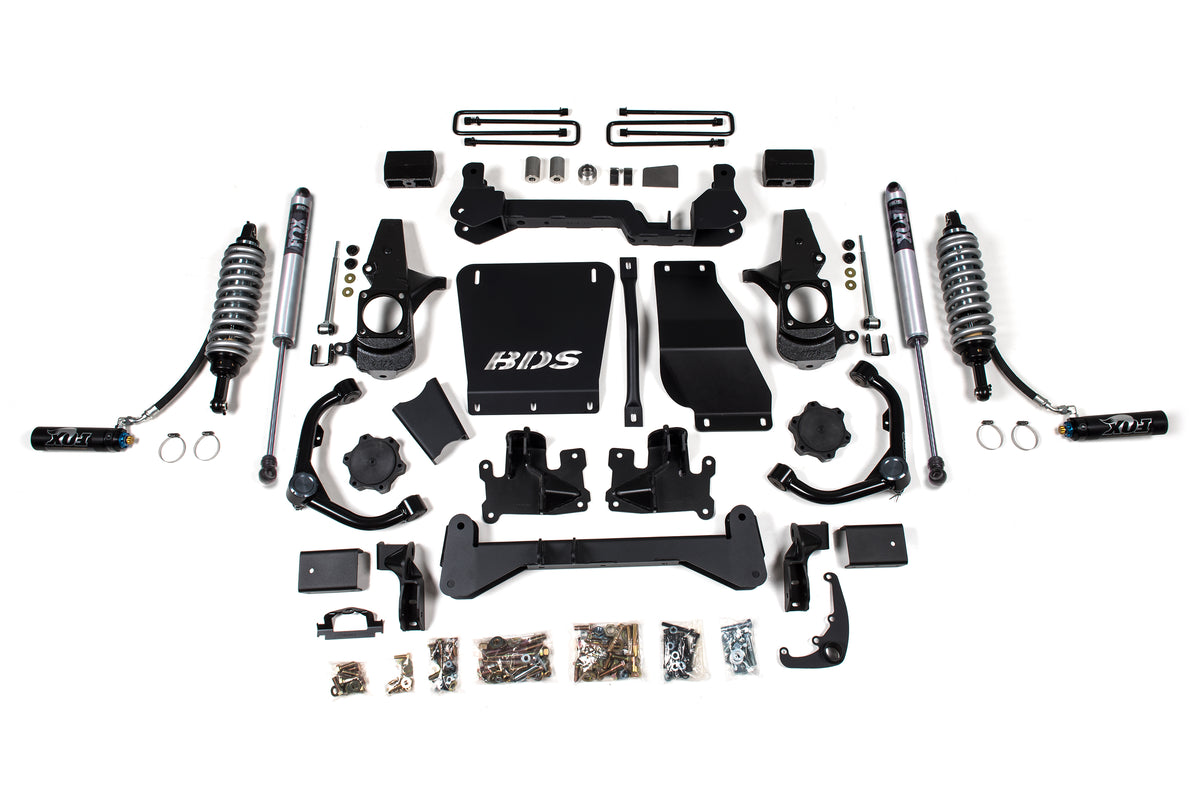

This BDS 4.5" lift kit with FOX 2.5 Coil-Over conversion raises the bar on your 2001-2010 Chevy Silverado / GMC Sierra 2500 HD, with clearance for up to 33" tires. Up front it runs FOX 2.5 coil-overs, heavy duty tubular upper control arms, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates and CNC-machined ductile iron steering knuckles, plus sway bar drops, bump stop extensions, brake line brackets and CV spacers. The rear offers replacement lift block or full Glide-Ride leaf spring options, new u-bolts and FOX 2.0 Performance shocks. The bolt-on FOX 2.5 remote-reservoir coil-overs are race-proven and tuned out of the box.

Features

• FOX 2.5 remote-reservoir coil-overs for improved damper performance over stock
• Dual Speed Compression adjuster for high-speed and low-speed compression tuning
• Performance UCAs increase strength and allow for more suspension travel
• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 5.5/5.758

Notes

• Torsion bar tool required to load/unload the torsion bars.
• Some welding required.
• Requires frame bracket modification and differential mount modification.
• Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4 inch to 8 inch of lift.
• 20 inch wheels with 5 inch to 5.75 inch backspacing recommended to reduce trimming.
• Narrow track knuckle will slightly increase turning radius.
• For a tail-high stance use #119157 add-a-leaf with the block kit, or 069207 with the leaf spring kit.
• Not recommended for Suburban / Yukon models with AutoTrac Transfer Case.
• Does NOT work with rear Autoride equipped SUVs.

Includes

• BDS011319, 01-10 GM HD 3in Rear Kit (UPC 658848611768)
• BDS021441, 01-10 HD Coilover System Box Kit (1of2) (UPC 658848614646)
• BDS021442, 01-10 HD Coilover System Box Kit (2of2) (UPC 658848614653)
• BDS021632, HD Knuckle Kit (UPC 658848614882)
• BDS121252, 01-10 HD UCA Kit (UPC 658848618934)
• BDS121650, 2001-2019 GM HD Front Skid Plate Box Kit (UPC 658848619207)
• BDS121654, 01-10 HD Coilover Mounting Kit (UPC 658848619245)
• FOX88406187, Kit: BDS 01-10 GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 4.5 inch Lift, Dual Speed Compression Adjust (UPC 814897013889)
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
