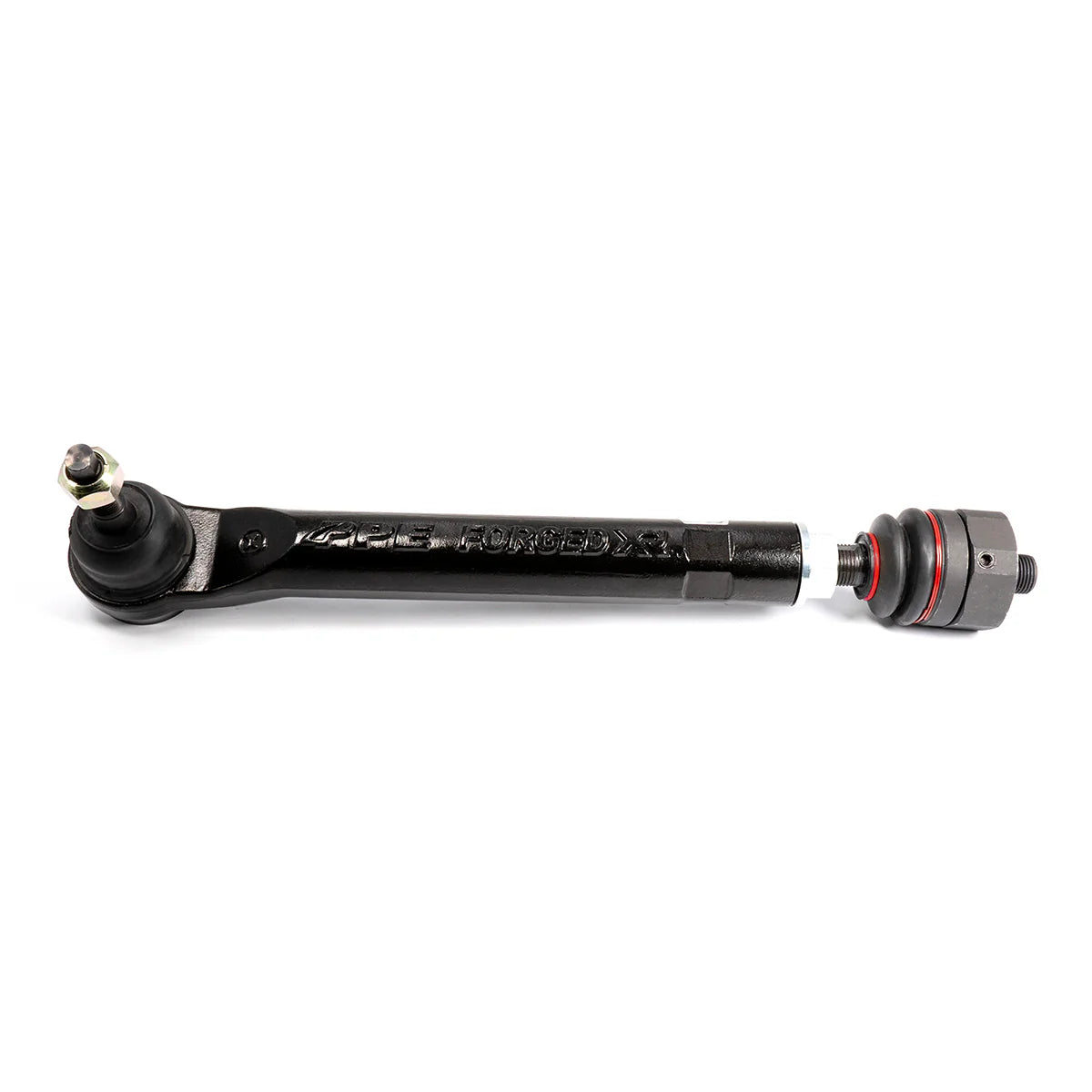

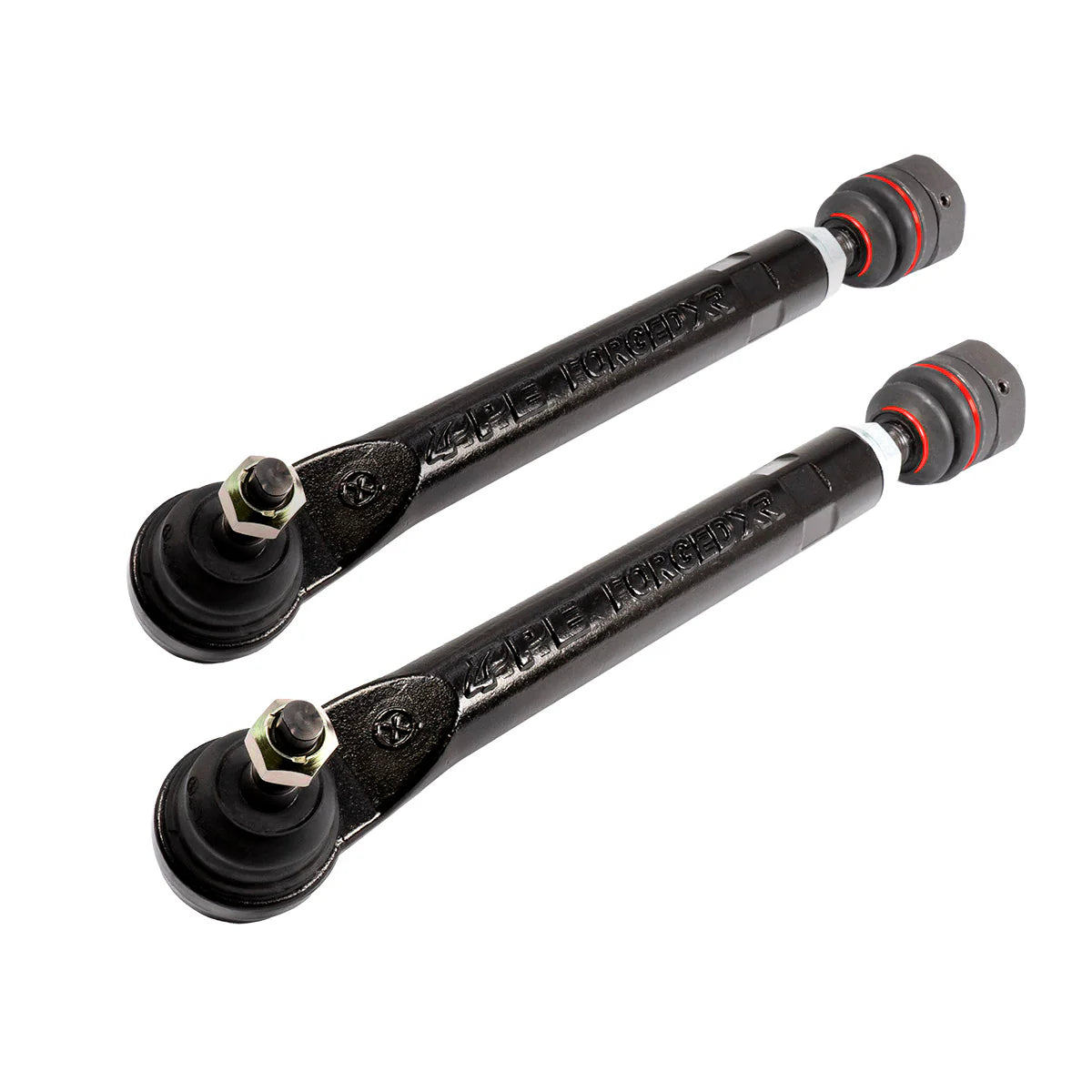

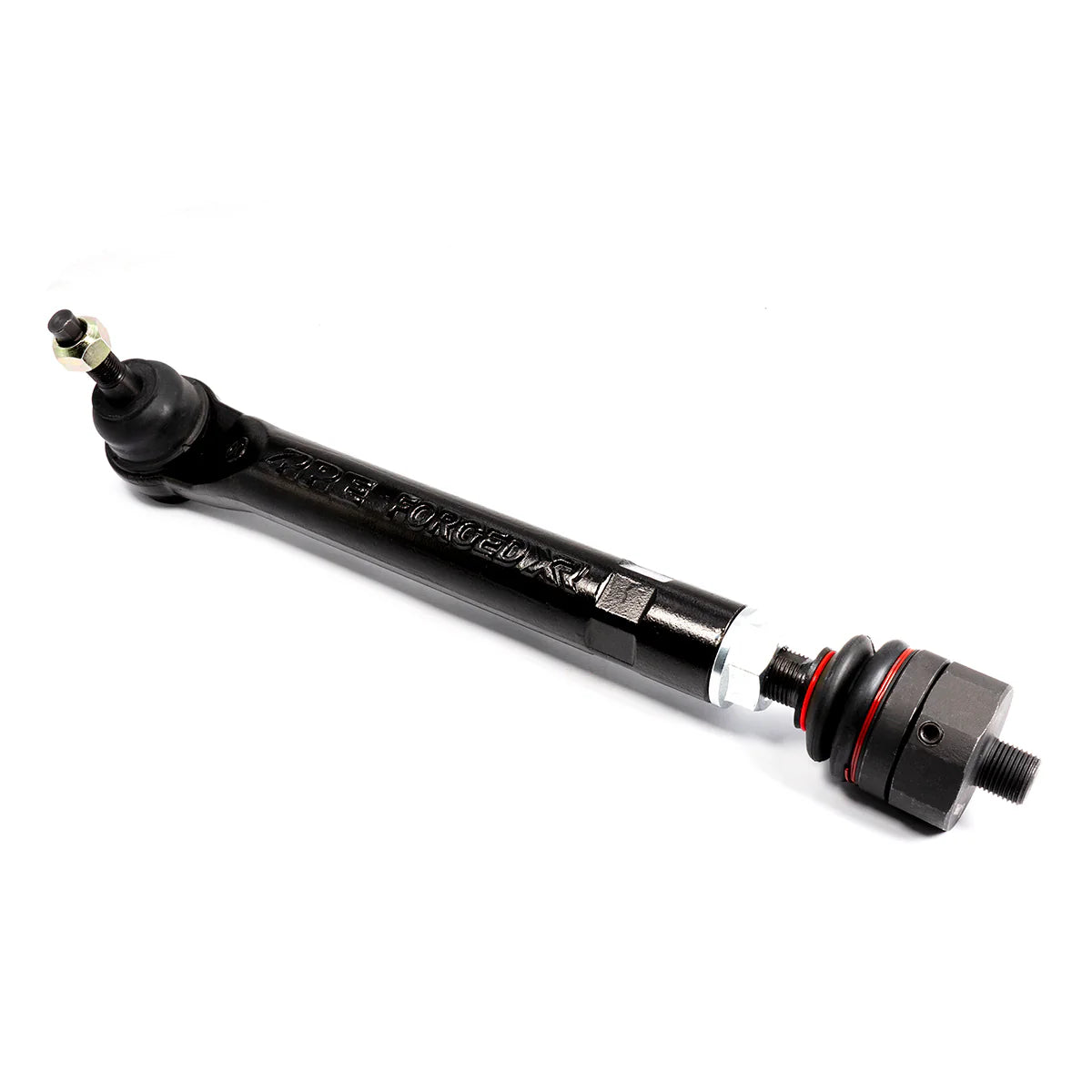

2001-2010 GM HD Forged XR Tie Rods (158032500)

Description

The PPE Forged XR Tie Rods are an ultra-heavy-duty steering upgrade engineered for GM 2500/3500 HD trucks. These units are designed to address a critical weak point in the factory steering geometry, where OEM tie rods are prone to bending or snapping under high-torque loads, particularly during 4WD launches or off-road operation. By replacing the undersized factory units with forged 1045 steel assemblies, the XR series provides the structural integrity required to maintain precise wheel alignment and steering control in demanding environments.

Each tie rod assembly features significantly larger internal components, including massive ball joints and thick-walled bars that distribute mechanical stress more effectively than stock components. This robust architecture not only improves steering feel but also protects other front-end components from the secondary damage often caused by steering flex and "toe-in" during hard acceleration.

Part Number:  158032500

Supersedes: 158031500

Features

• Forged 1045 steel construction offers superior tensile strength and resistance to mechanical fatigue.
• Equipped with massive 32mm ball joints
• 1.5-inch diameter solid bars significantly increase rigidity and prevent bending under high-load conditions.
• Greasable ball joints with integrated zerk fittings facilitate easy maintenance and ensure a long service life.
• Polished finish provides a high level of corrosion resistance against road salts and environmental debris.

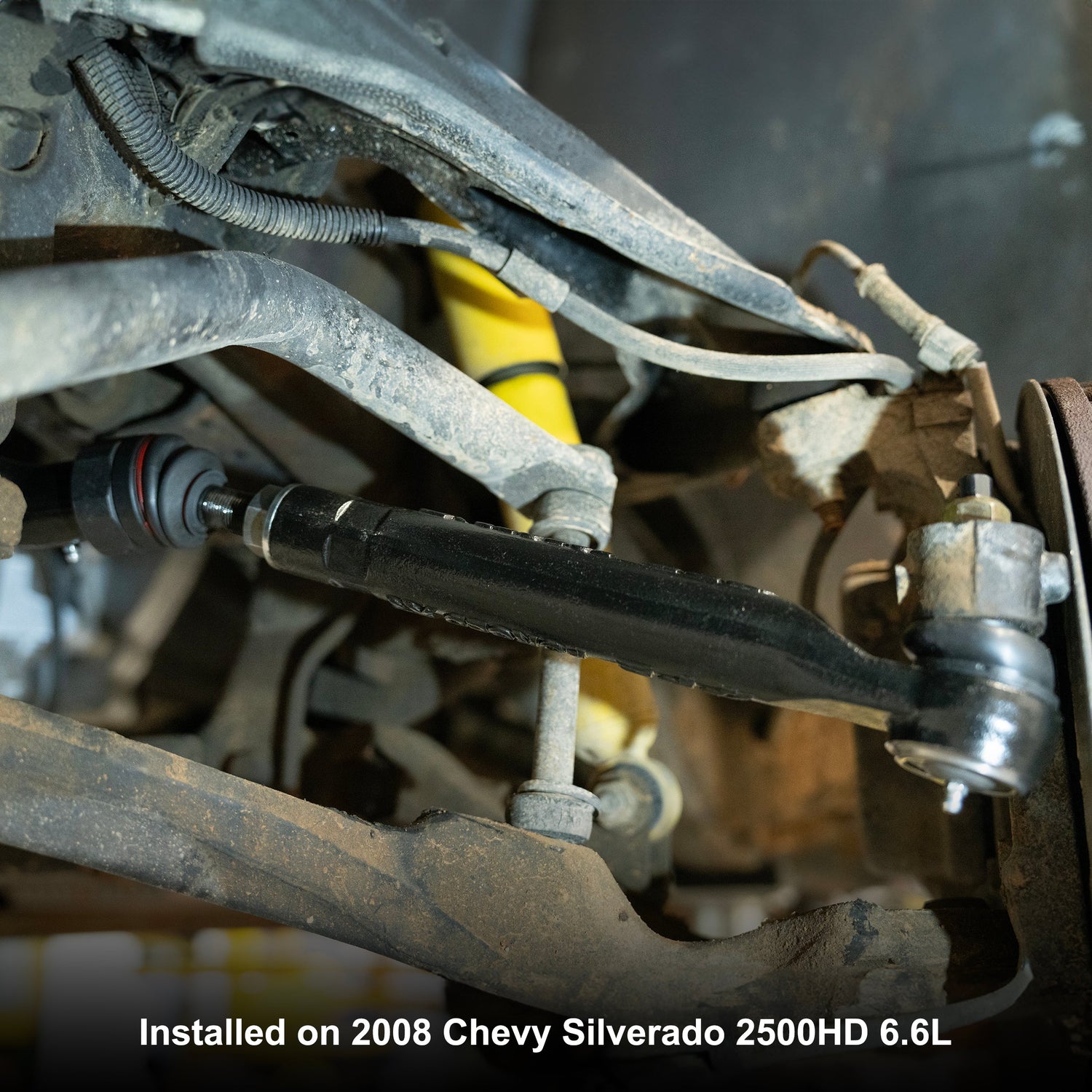

• Direct bolt-on design allows for a seamless installation utilizing factory steering knuckles and center links.

Specifications

• Material: Forged 1045 Steel
• Tie Rod Diameter: 1.5 inches
• Ball Joint Size: 32 mm
• Hardware: High-strength steel nuts and cotter pins included
• Finish: Polished Steel


Notes

• Compatible with both stock and most aftermarket suspension lift kits.
• A professional wheel alignment is mandatory immediately following the installation of this kit.
• Specifically recommended for high-performance diesel applications and vehicles equipped with oversized tires.
