2001-2010 GM HD Steering Upgrade Kit (1032160)

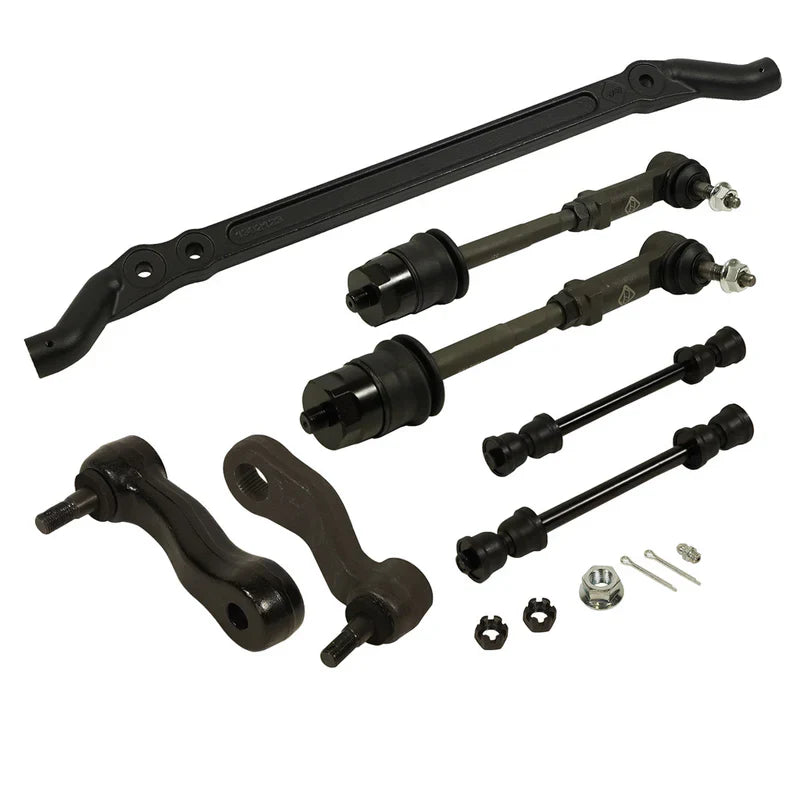

The BD Diesel Steering Upgrade Kit is a comprehensive and economic solution engineered to reinforce a major common weak point on Chevrolet/GM HD series trucks: the steering linkage and tie rods. These components are prone to failure (including loose steering, wheel toe-in under load, and broken tie rods) due to high torque engines, lift kits, and larger tires. This kit includes a Centerlink, two tie rods, two sway bar end links, a pitman arm (3-spline), and an idler arm. The core of the system is the forged I-Beam Centerlink, which is 30% stronger than the original equipment manufacturer (OEM) part, reducing flex and creating a robust base. The tie rods are 1.5 times thicker than OEM and feature larger, greaseable ball joints (with sintered bearings) proven to handle over double the force of OEM rods. The entire package retains factory geometry for accurate steering, eliminating dangerous "bump steer" and increasing the durability, longevity, and dependability of your truck.

Features

• Forged I-Beam Centerlink is 30% stronger than OEM for less deflection
• Forged Centerlink retains factory geometry for accurate steering
• Tie rods are 1.5x larger than OEM for reduced flex
• Larger Greaseable Ball Joints for long service life and better load holding
• Sway bar end links are 1-inch longer than factory to accommodate leveling kits and larger tie rods
• Durable polyurethane sway bar end link bushings shaped for articulation and durability
• Greaseable pitman arm and idler arm
• Compatible with OEM components for drop-in replacement

Specs

• Centerlink Material: Forged I-Beam (30% stronger than OEM)
• Tie Rod Shaft: 1.5x thicker than OEM
• Sway Bar End Links: 1 inch longer than factory
• Pitman Arm: 3-spline
• Installation Time: 3 Hours

Notes

• The product is backed by a 12-month warranty on parts.
• A Limited Lifetime Warranty is available with registration.
