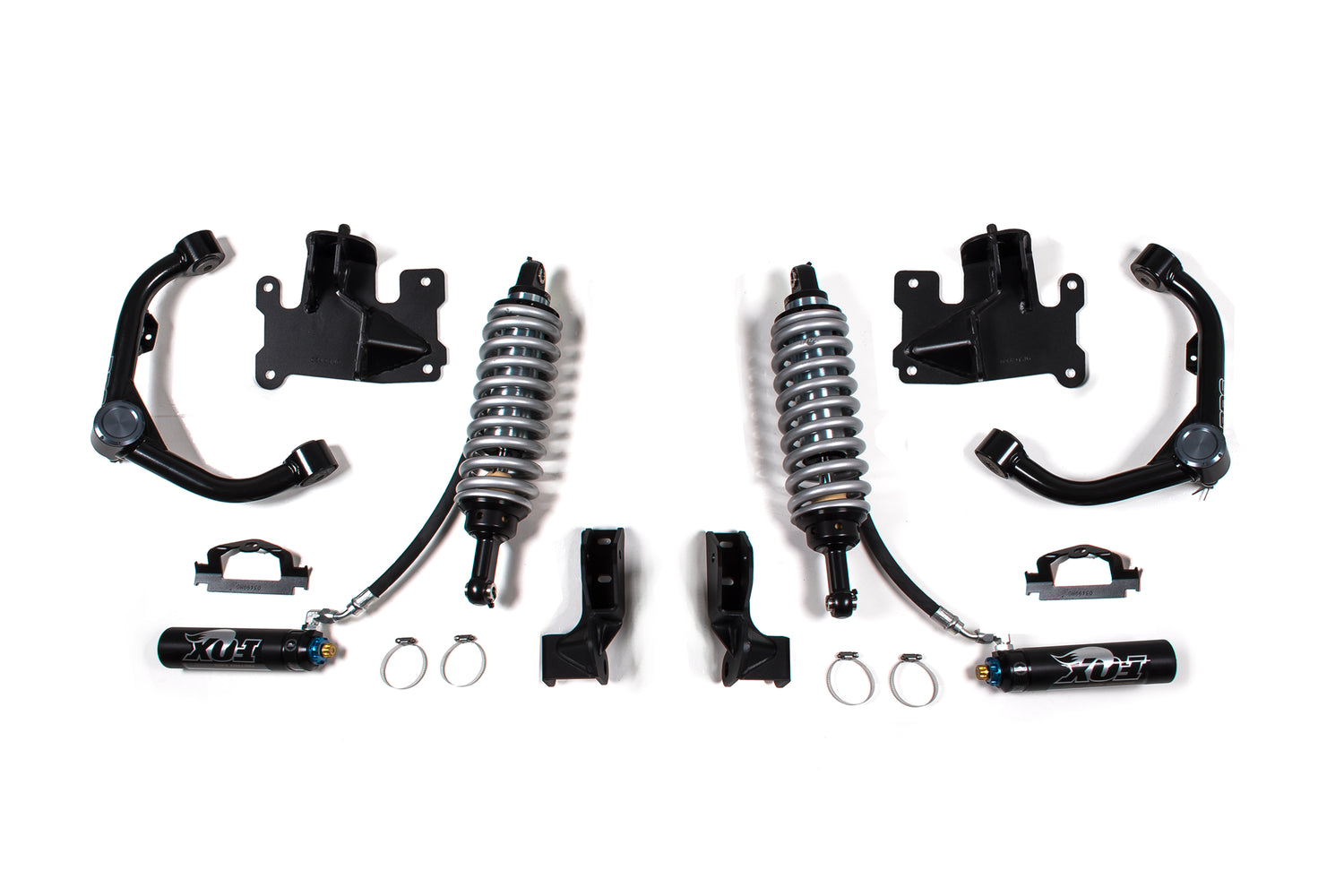

2001-2010 GM HD 6.5" FOX 2.5 Performance Coilover Conversion (BDS741FDSC)

This BDS 6.5" coil-over conversion upgrade makes it effortless to convert your Chevy Silverado / GMC Sierra 2500/3500 HD from standard lifted suspension to coil-overs, and is compatible with existing BDS 6.5" lift kits. It provides a bolt-on frame bracket to mount the coil-overs in the shock mount location with a weld-in support gusset to reinforce the upper mount. Beyond replacing the factory torsion bars, the control arms are upgraded with BDS tubular performance uppers (1.5" OD x .120-wall, indexed ball joint cup) and fully boxed, internally gusseted high-strength steel lowers. The FOX 2.5 Factory remote-reservoir shocks are race-proven and tuned out of the box, with a Dual Speed Compression adjuster offering 10 low-speed and 12 high-speed compression levels.

Features

• FOX 2.5 Factory series coil-overs with remote Dual Speed Compression adjustment
• Performance UCAs for increased strength and travel
• Fully boxed and internally gusseted high-strength lower control arms
• Bolt-on design requires no welding (other than gusset)
• Compatible with BDS high clearance kits
• Eliminates rough-riding torsion bars

Specs

• Type: Shocks
• Lower Mount Type: No Lower Mount Type
• Upper Mount Type: No Upper Mount Type
• Gas Charged: No Gas Charged
• Adjustable: true
• Adjustable Dampening: No Adjustable Dampening
• Compressed Length: No Compressed Length
• Travel Length: No Travel Length
• Extended Length: No Extended Length
• Shaft Diameter: No Shaft Diameter

Notes

• Torsion bar tool required to unload torsion bars.
• Requires frame bracket modification.
• Coilovers are preset for diesel; gas models will require preload adjustment (use #129600 spanner wrench).
• Gas models will require exhaust modification.

Includes

• BDS121252, 01-10 HD UCA Kit (UPC 658848618934)
• BDS121654, 01-10 HD Coilover Mounting Kit (UPC 658848619245)
• FOX88406188, Kit: BDS 01-10 GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust (UPC 814897013704)
