2001-2010 K2500 4.5" High Clearance Block Lift (BDS1817FS)

Features

• Robust steering knuckles maintain ESC system compliance
• Heavy-duty skid plate system improves offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Clearance for up to 33" tires

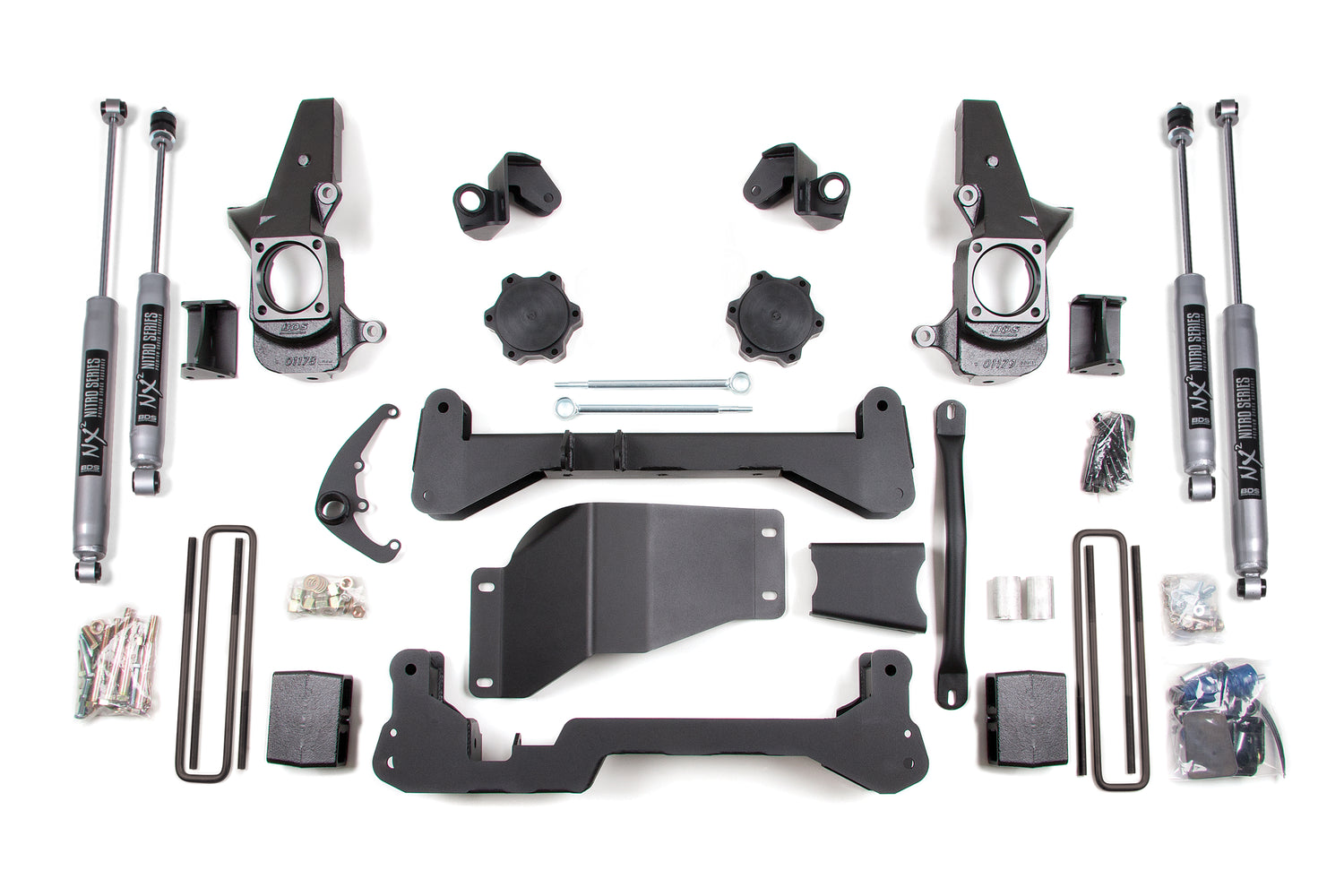

• Complete front and rear suspension lift components included for improved stance and capability

The 2001-2010 K2500 4.5” High Clearance Block Lift is a comprehensive suspension lift kit designed for Chevy Silverado and GMC Sierra 2500 HD 4WD models. It improves ground clearance, stance, and off-road performance while maintaining on-road handling with corrected suspension and steering geometry. This kit includes all necessary components to lift your truck and accommodate larger tires up to 33 inches.

This lift kit features high-clearance, 1/4-inch thick steel crossmembers and a heavy-duty skid plate system that forms a rigid subframe for enhanced off-road protection. The front suspension upgrade includes torsion bar relocation brackets, multipiece differential relocation brackets, and CNC-machined ductile iron steering knuckles to maintain proper steering angles at the taller ride height. Additional elements such as sway bar drops, bump stop extensions, brake line brackets, and CV spacers ensure a complete front suspension lift package.

The rear lift is available as a replacement block or a full Glide-Ride leaf spring option to lift and level the stance while retaining ride quality and load capacity. The kit also provides new U-bolts, brake line brackets, and precision tuned shocks from NX2 Nitro or FOX 2.0 Performance Series for superior suspension performance.
